Family Designation: NQCH-DGTR/L-D-SH-JHP

Screw Lock JETCUT Modular Heads Carrying DO-GRIP Double-Edged Parting Inserts for Swiss-Type Machines

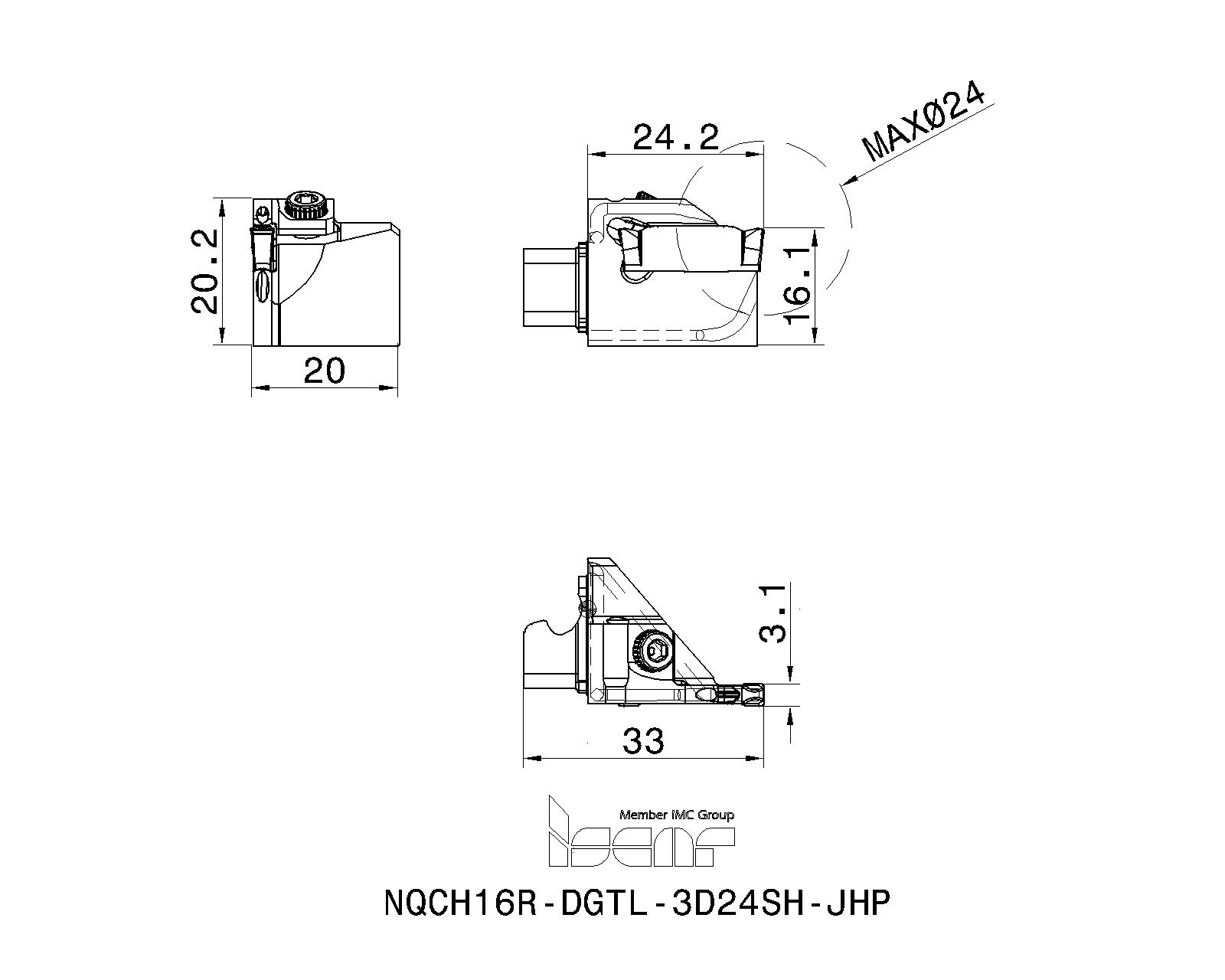

Right hand tool shown

Item Designation: NQCH16R-DGTL-3D24SH-JHP

CWN	CWX	HF	OAW	OAH	LH	OAL	CUTDIA	MIID	CW	IC	HAND	CSP	GICAT	GIREM	giic
3.00	3.18	16.1	20.00	20.20	24.2	33.00	24.0	DGN 3	3.00~	~	L~	~	3427136		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3427136		1	2	4				<a href="javascript:OpenDxf('3427136', 'NQCH16R-DGTL-3D24SH-JHP' , 'IscarDxf' , '3427136-NQCH16R-DGTL-3D24SH-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3427136&itemDesc=NQCH16R-DGTL-3D24SH-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3427136&itemDesc=NQCH16R-DGTL-3D24SH-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1

Spare Parts
	7000610	SR M3X8 DIN912	Socket head cap screw	Details
	7000037	HW 2.5	Hex key	Details
