Milling
Main Application

Plunging & Recessing
Sub Application
Geometry Checker ×

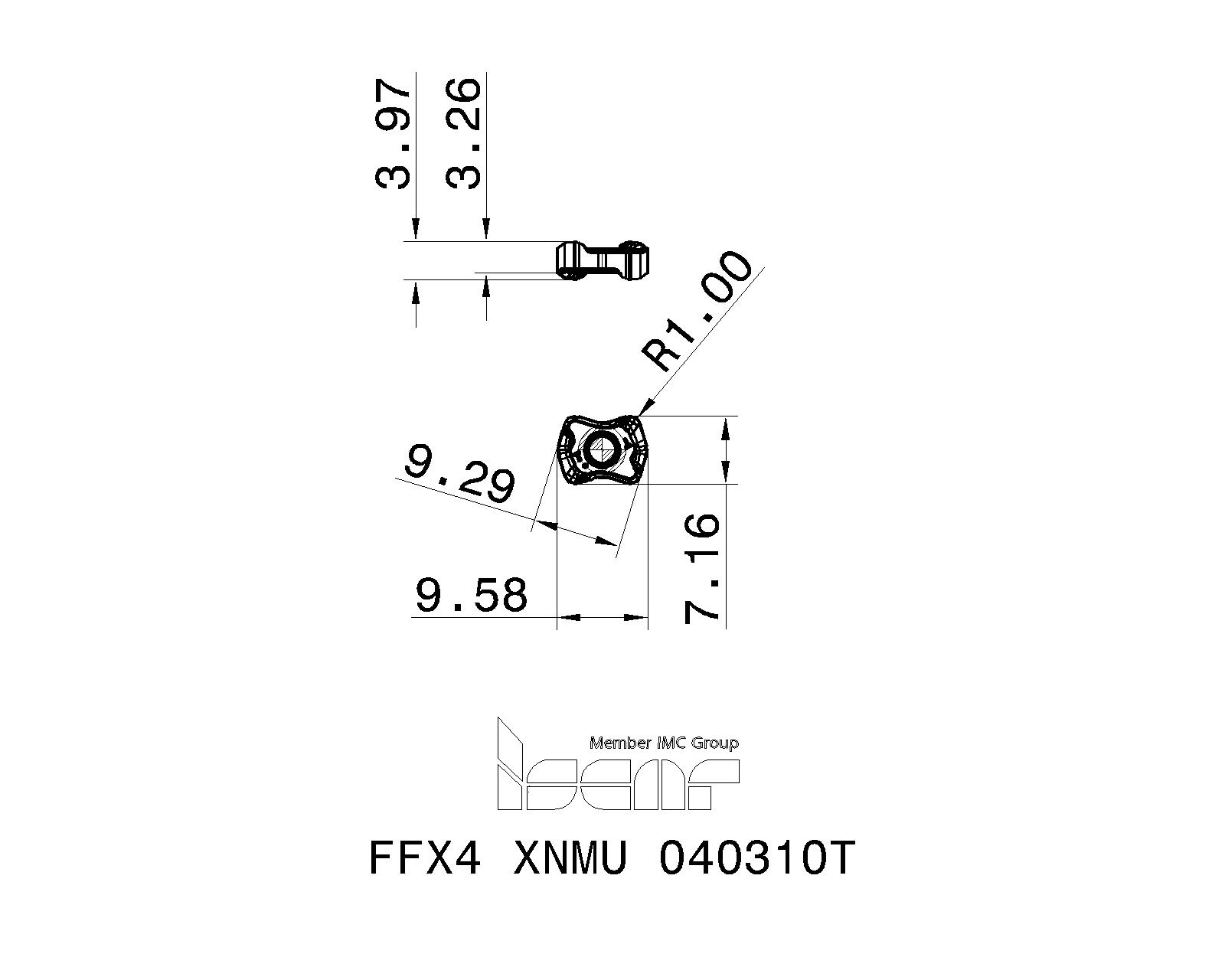

Family Designation: FFX4 XNMU-04 Double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets, profiling and face milling.


Item Designation: FFX4 XNMU 040310T
INSL S1 RE W1 APMX ap
(min) 		ap
(max) 		fz
(min) 		fz
(max) 		HAND CEDC SC DCX  AN CBMD D1 GRDMFG IFS LE NIS SSC  WEP ApplMat StaSteelCastIronHardMa SupTit CutEdMatCoating GICATGIREMgiic
9.583.951.007.160.80~0.200.800.401.20R~4~X~~~~~IC5600~~~~~~Steel~Stainless Steel~Cast Iron~Hard Materials~Superalloys and titanium~Carbide~AlTiCrN+TiN ~3430188 4
Catalog NoGrade & VcAlternativeFiles PackageGISCAvailUSAAdd to favoritesP21 Properties FileAdd to AssemblyGTCStock Availability
   US        EU     E. Asia		STPP21StockPerUser
3336657 IC83016720<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3336657&cat=3336657&itemDesc=FFX4 XNMU 040310T"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3336657&itemDesc=FFX4 XNMU 040310T"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3336657&itemDesc=FFX4 XNMU 040310T"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
3336658 IC8101490<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3336658&cat=3336658&itemDesc=FFX4 XNMU 040310T"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3336658&itemDesc=FFX4 XNMU 040310T"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3336658&itemDesc=FFX4 XNMU 040310T"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
3336659 IC808Alternative127840<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3336659&cat=3336659&itemDesc=FFX4 XNMU 040310T"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3336659&itemDesc=FFX4 XNMU 040310T"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3336659&itemDesc=FFX4 XNMU 040310T"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
3430188 IC560010<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=0&p21=3430188&cat=3430188&itemDesc=FFX4 XNMU 040310T"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3430188&itemDesc=FFX4 XNMU 040310T"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPD'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3430188&itemDesc=FFX4 XNMU 040310T"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 10
For side plunging, the initial cutting feed is 0.1 mm/t
HP- for austenitic stainless steel, titanium and high temperature alloys
RM-reinforced type insert
T- for steel, ferritic and martensitic stainless steel and cast iron
XNMW-T- for hard material (up to 49 HRC) and uneven surfaces
