Family Designation: SDNCN Screw lock tools carrying 55° diamond inserts with 7° clearance angle.

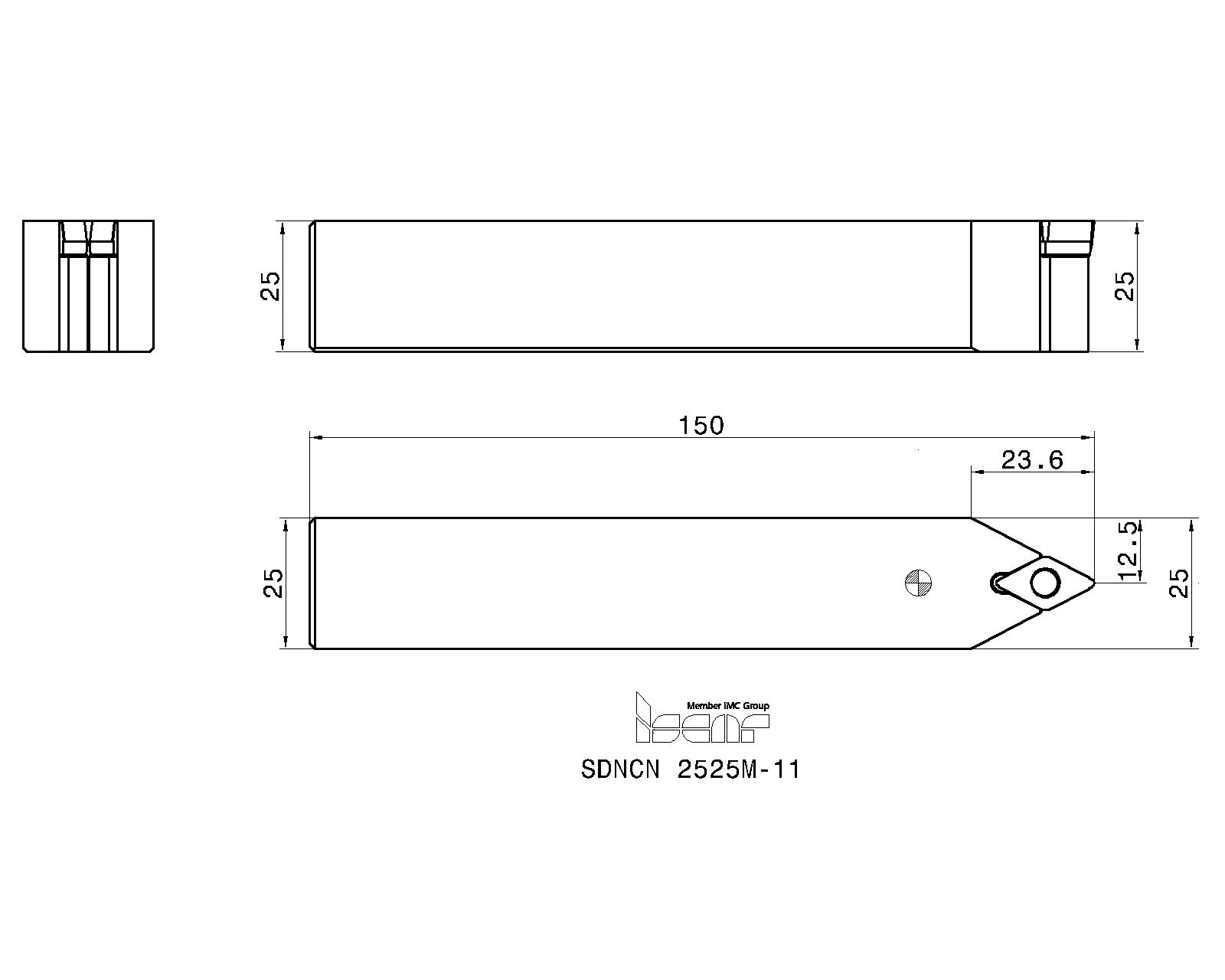

Item Designation: SDNCN 2525M-11
IC H HF B LF LH WF GAMP GAMF Insert SFMT KAPR  Kr° Tool typMTP Mod e MINI IIC2 IIC3 IIC4 BMC UST ISCTMP CCFMS CCMS CCTMS ClssID CNSC CNT CP  CSP  CUBPMS CXSC CZCMS  EPSR GTC HAND HBH HBKW HBL IIC ISO STD ISYC KAPR S LTA MIID  SPI TCDCONMSWTA GICATGIREMgiic
9.52~25.025.025.0150.0030.012.500.00.0DC..11T3~~62.5~0.0~~~200~~-~~~~S~M~TUTEXTID-VKT01~0.83~01~VKT01A2525$$$$~VKT~71E01A0E85121~0~-~-~0~A~0~2525~55.0~TRNGEI_WISO$D_MVKT01~N~-~-~-~~Y~309-01~~40.00~DCGT 11T302-SM~$$$$~12.50~3600904 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21
3600904 10336<a href="javascript:OpenDxf('3600904', 'SDNCN 2525M-11' , 'IscarDxf' , '3600904-SDNCN 2525M-11');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3600904&itemDesc=SDNCN 2525M-11"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3600904&itemDesc=SDNCN 2525M-11"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
3D Representation
Assembly Video
2D Representation
  Spare Parts
7000225SR 16-236 PTorx screw
Details
General recommendation for tightening torque:3 N*m (26.5 lbf*in)
7000265T-15/5Torx key flag
Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
5520063TDC 3-1P55° Rhombic seats
7002104SR TC-3PSeat screw
Details
7000043HW 4.0Hex key
Details
