Family Designation: A/E/S-SDUCR/L

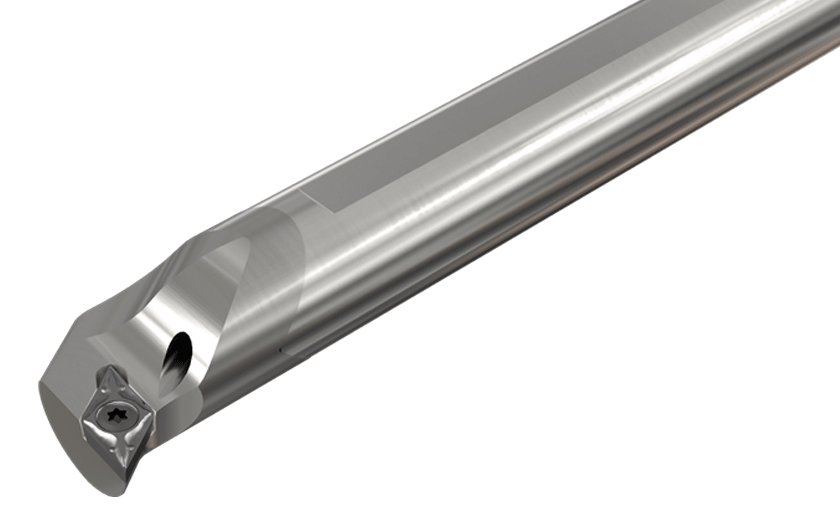

Screw lock boring bars carrying 55° rhombic inserts with 7° clearance.

Right-hand shown

Item Designation: S10L SDUCL-07

IC	DCONMS	LF	LDRED	H	HFB	WF	HF	DMIN	GAMP	GAMF	Shank m.	CSP	HAND	CCMS	KAPR	MIID	GICAT	GIREM	giic
6.35~	10.00	140.00	18.0	9.2	5.0	8.00	0.4	14.00	-3.0	-9.0	S	0	L	ZYL22G1000h$06~	93.0~	DCMT 070201-PF	3600910		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3600910		1	0	992				<a href="javascript:OpenDxf('3600910', 'S10L SDUCL-07' , 'IscarDxf' , '3600910-S10L SDUCL-07');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3600910&itemDesc=S10L SDUCL-07"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3600910&itemDesc=S10L SDUCL-07"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole

Spare Parts
	7000217	SR 14-548	Torx screw	Details
Recommended tightening torque:0.9 N*m
	7000271	T-7/5	Torx key flag	Details
For limiting torque, use optional 7007377 BLD 4 T07-0.9NM blade & 7007318 HSD 4-0.9NM handle.
