Family Designation: A/S-PDUNR/L Lever-lock boring bars carrying 55° negative rhombic inserts. S - Steel shank; A - Steel shank with a coolant hole.
Right-hand shown

Right-hand shown

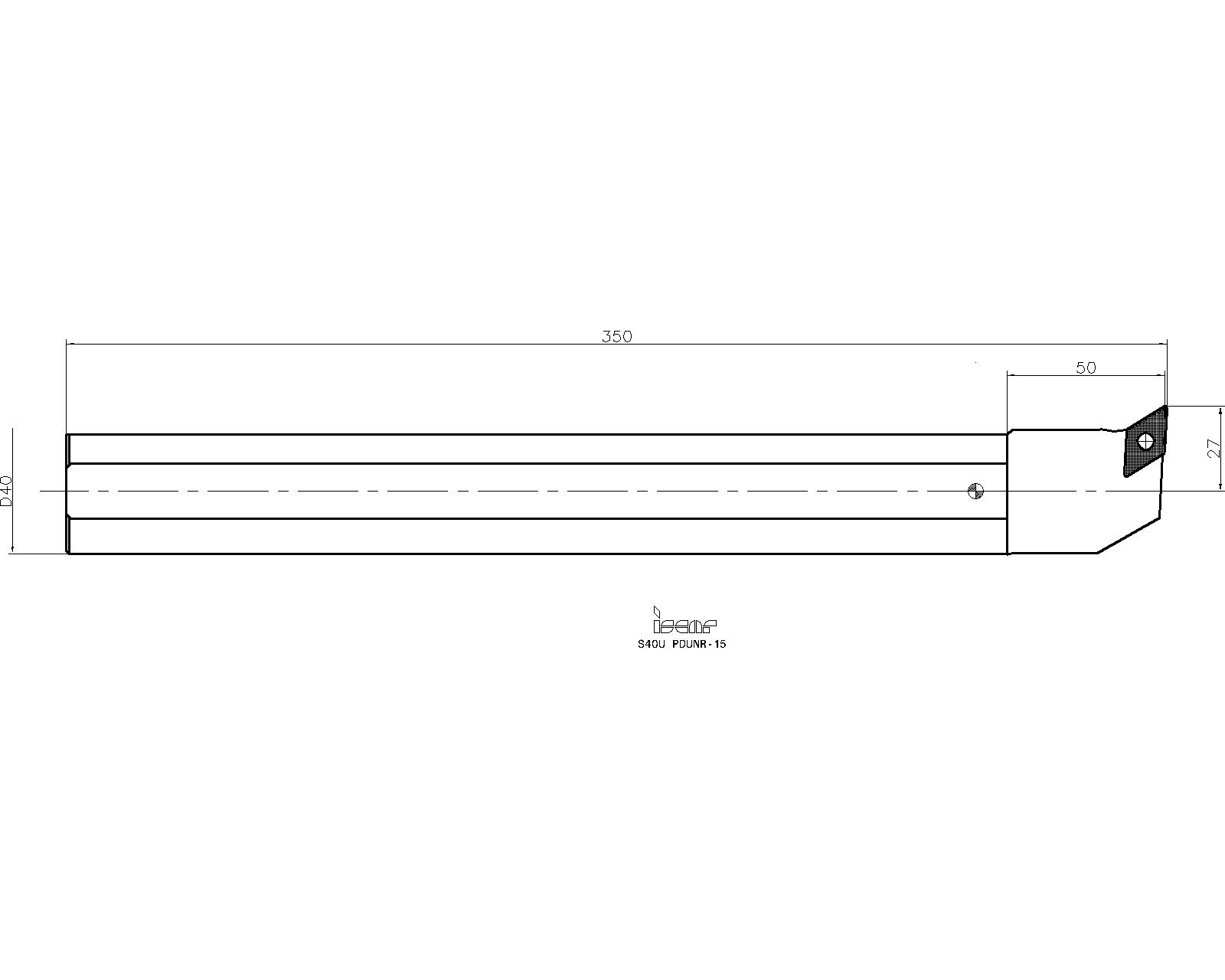

Item Designation: S40U PDUNR-15
IC DCONMS LF LDRED H HFB HF WF GAMP GAMF DMIN CSP  HAND CCMS KAPR  MIID  GICATGIREMgiic
12.70~40.00350.0050.036.018.00.027.00-6.0-11.550.000RZYL22G4000h$06~93.0~DNMG 150608-GN3601115 0
Catalog NoNEOITAFiles PackageAvailUSAAvailEUAvailFarEastAdd to favoritesP21 Properties FileAdd to AssemblySTPStock Availability
   US        EU     E. Asia
P21ITAStockPerUser
3601115 010428<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3601115&itemDesc=S40U PDUNR-15"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a>          <a href="FilesDownload.aspx?FileType=P&cat=3601115&itemDesc=S40U PDUNR-15"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a><a href="https://www.iscar.com/ITA?item=3601115&units=M&lang=EN" OnClick="writeToGoogleAnalytics('CatalogIconsClicks', 'ITA', 'ItemPage');" target="_blank"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
Items Per Package : 1
3D Representation
Assembly Video
2D Representation
  Spare Parts
5520066TDN 42255° Rhombic seats
Details
Use for DNMG 1506.. inserts
5560065TDN 432
(Optional, should be ordered separately)
55° Rhombic seats
Details
Use for DNMG 1504.. inserts
7000168SP 4Spring pin
Details
7000082LR 4DLever
Details
7000199SR 117-2010Screw
Details
7000039HW 3.0Hex key
Details
7000099PN 3-4Punch
Details
