Family Designation: A/S-PDUNR/L

Lever-lock boring bars carrying 55° negative rhombic inserts. S - Steel shank; A - Steel shank with a coolant hole.

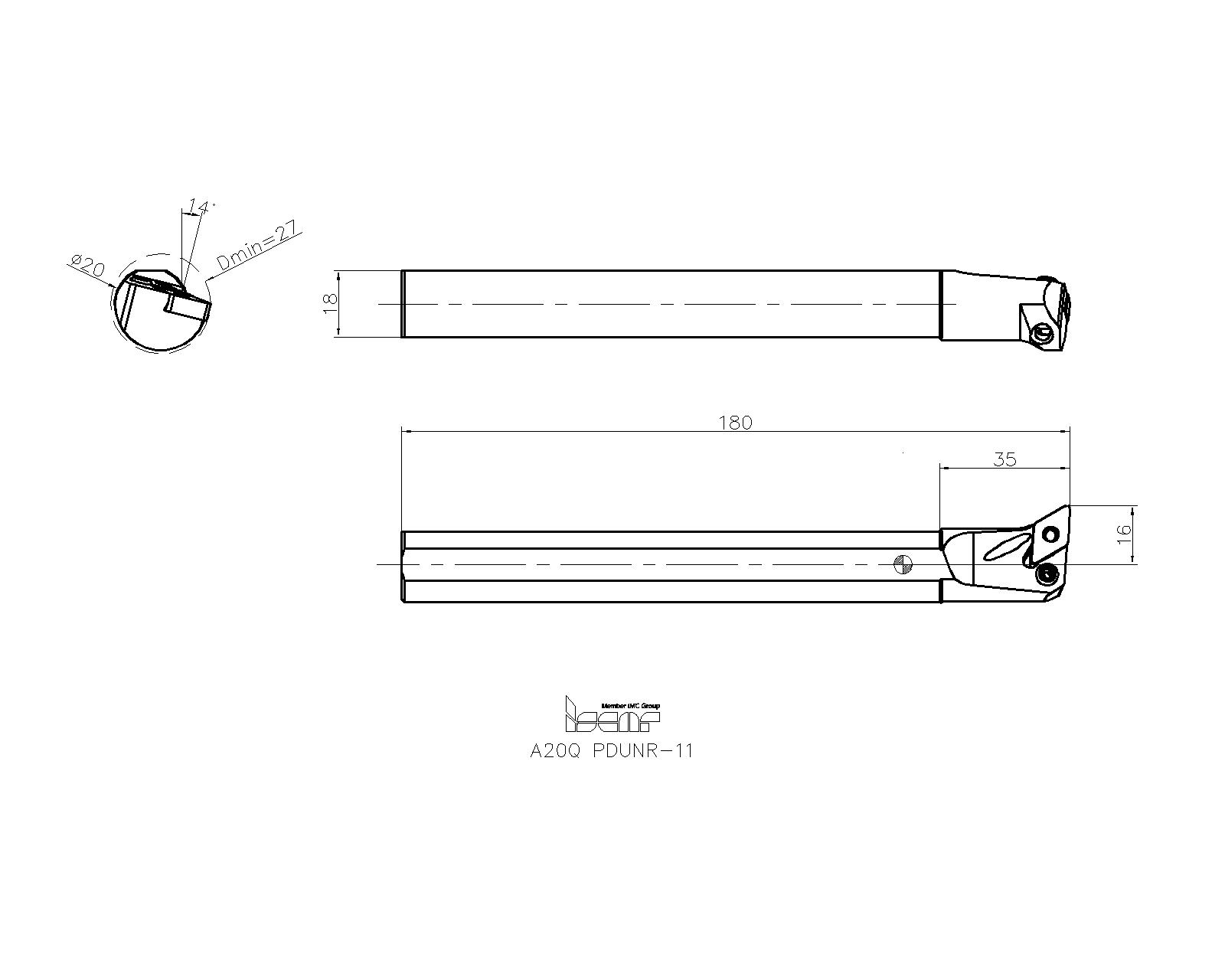

Right-hand shown

Item Designation: A20Q PDUNR-11

IC	DCONMS	LF	LDRED	H	HFB	HF	WF	GAMP	GAMF	DMIN	CSP	HAND	CCMS	KAPR	MIID	GICAT	GIREM	giic
9.52~	20.00	180.00	35.0	18.0	9.2	0.2	16.00	-6.0	-14.0	27.00	1	R	ZYL22G2000h$06~	93.0~	DNMG 110408-GN	3601162		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3601162		1	0	0				<a href="javascript:OpenDxf('3601162', 'A20Q PDUNR-11' , 'IscarDxf' , '3601162-A20Q PDUNR-11');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3601162&itemDesc=A20Q PDUNR-11"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3601162&itemDesc=A20Q PDUNR-11"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
