ISCAR Cutting Tools - Metal Working Tools - SDACR/L-S : 3601815

Geometry Checker ×

Family Designation: SDACR/L-S

Screw lock tools for Swiss-type machines carrying 55° diamond inserts with 7° clearance angle.

Right-hand shown

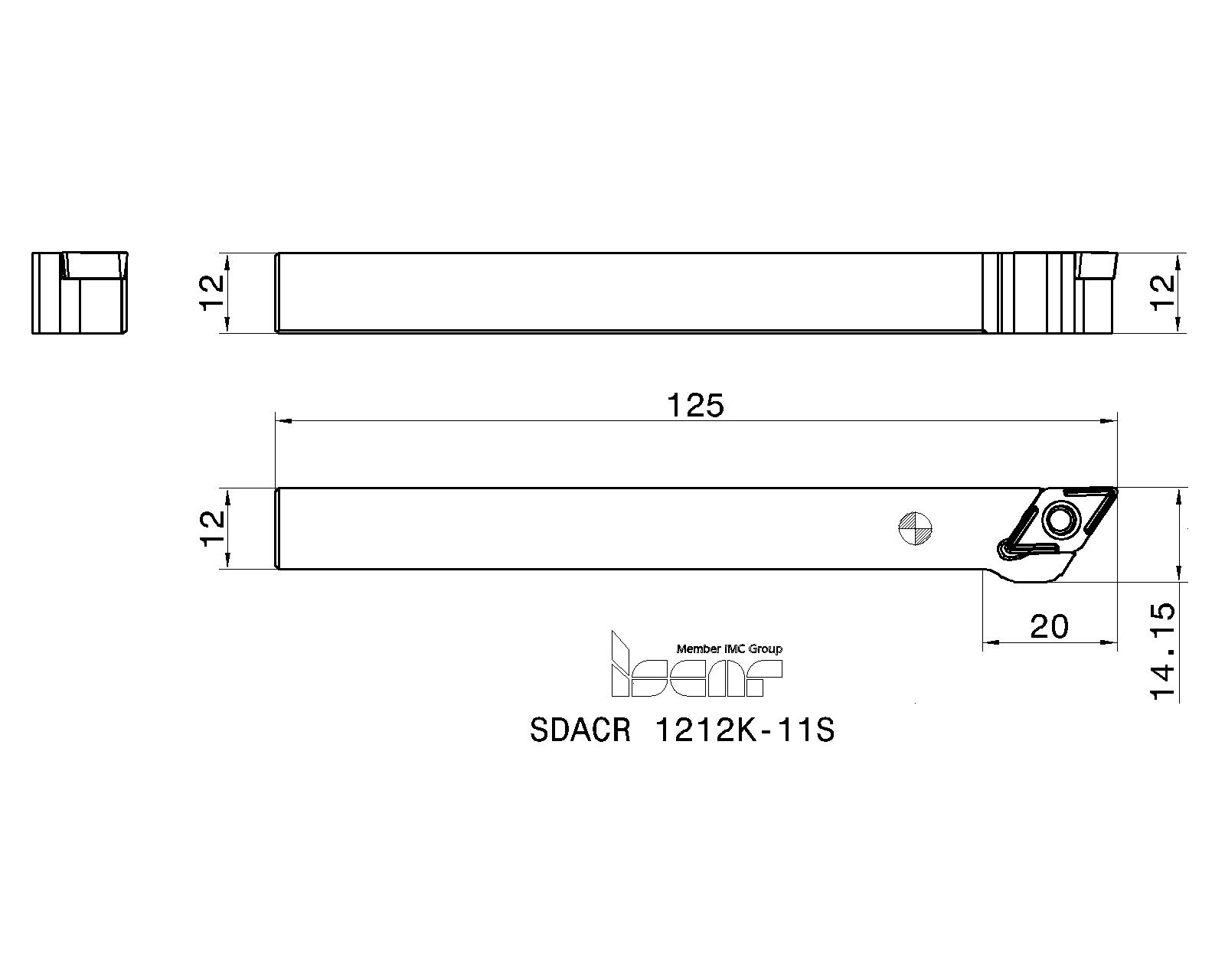

Item Designation: SDACR 1212K-11S

IC	H	HF	B	LF	LH	WF	OAW	GAMP	GAMF	HAND	KAPR	CCMS	CSP	MIID	GICAT	GIREM	giic
9.52~	12.0	12.0	12.0	125.00	17.6	12.20	12.20	0.0	0.0	R	90.0~	VKT01A1212$$$$~	0~	DCGT 3-0-SM	3601815		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3601815		1	64	1216				<a href="javascript:OpenDxf('3601815', 'SDACR 1212K-11S' , 'IscarDxf' , '3601815-SDACR 1212K-11S');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3601815&itemDesc=SDACR 1212K-11S"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3601815&itemDesc=SDACR 1212K-11S"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1

Spare Parts
	7000225	SR 16-236 P	Torx screw	Details
General recommendation for tightening torque:3 N*m
	7000265	T-15/5	Torx key flag	Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
