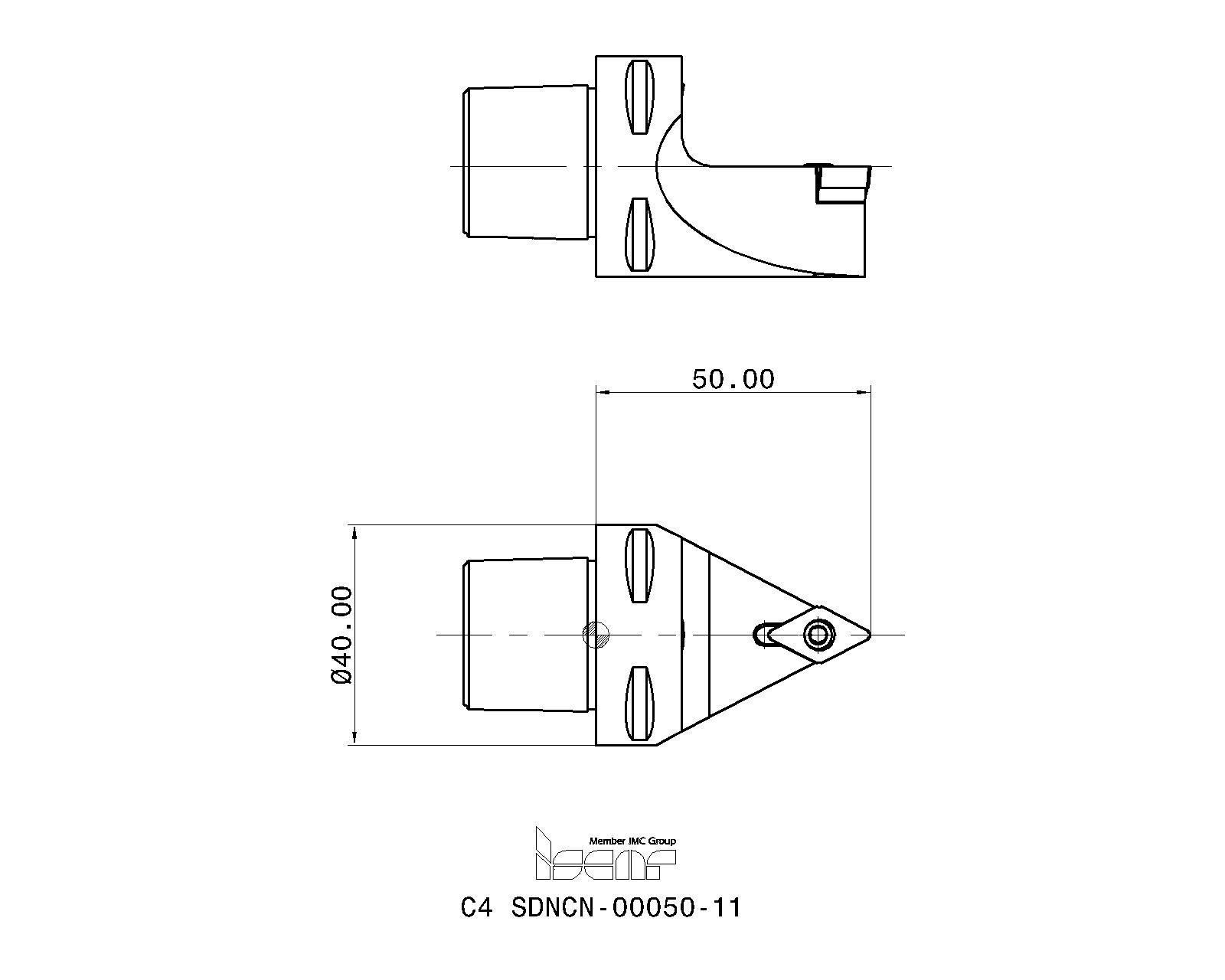

Family Designation: C#-SDNCN

Screw lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks carrying 55° rhombic inserts with 7° clearance angle.

Item Designation: C4 SDNCN-00050-11

DCONMS	LF	IC		CSP	Insert	OAL	IIC2	IIC3	IIC4	BMC	SS	CP	CDI	UST	ISCTMP		BD	BDRED	CCFMS	CCMS	CCTMS	CDX	CICT	ClssID	ClssID_2	CNSC	CUBPMS	CUTDIA	CWN	CWX	CXSC	CZCMS	DMIN	ECA	EPSR	GAMF	GAMP	GTC	GTC_2	HAND	HF	HTA	IIC	IIC_2	ISCTMP_2	ISO STD	ISYC	ISYC_2	KAPR	KAPR S	LDRED	LH	LTA	LU	MIID	MIID_2	S. Std.	SPI	TCDCONMS	WF	WTA	GICAT	GIREM	giic
40.00	50.00	9.52~	Y~	1~	DC.. 11T3~	74.00~	~	~	~	S~	40~	70	1	C~	TUTEXID-CCS01~	0.27~	-~	-~	01~	CCS01C0400$$$$~	CCS~	-~	1~	71E01A0EAF067~	-~	1~	C~	-~	-~	-~	5~	0400~	-~	-~	55.0~	-~	-~	TRNGEI_WISO$D_MCCS01~	-~	N~	0.0~	~	~	-~	-~	Y~	309-07~	-~	93.0~	Ja~	-~	-~	50.00~	-~	DCMT 11T308-PF~	-~	CAMFIX~	~	$$$$~	~	0.00~	3602471		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3602471		3	0	200				<a href="javascript:OpenDxf('3602471', 'C4 SDNCN-00050-11' , 'IscarDxf' , '3602471-C4 SDNCN-00050-11');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3602471&itemDesc=C4 SDNCN-00050-11"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3602471&itemDesc=C4 SDNCN-00050-11"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1

Spare Parts
	5520063	TDC 3-1P	55° Rhombic seats
	7002104	SR TC-3P	Seat screw	Details
	7000043	HW 4.0	Hex key	Details
	7000225	SR 16-236 P	Torx screw	Details
General recommendation for tightening torque:3 Nm (26.5 lbfin)
	7000265	T-15/5	Torx key flag	Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
	7000898	EZ 104	Cooling nozzle
