Family Designation: DDJNR/L R-Clamp tools with 93° lead angle carrying 55° negative rhombic inserts.
Right-hand shown

Right-hand shown

 DDJNR/L

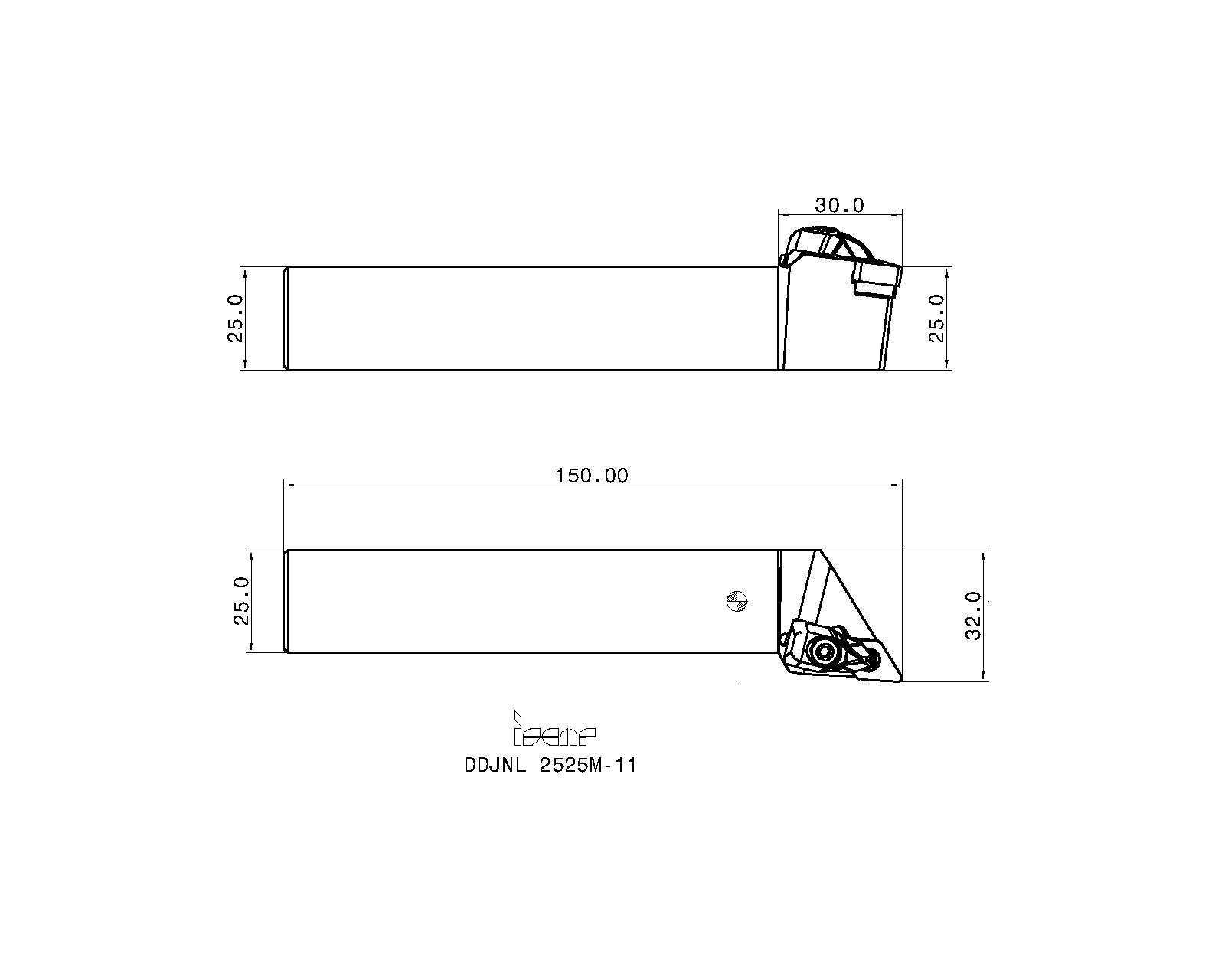

Item Designation: DDJNL 2525M-11
IC H HF B LF LH WF HAND S KAPR  CCMS CSP  MIID  GICATGIREMgiic
9.52~25.025.025.0150.0030.032.00L4.76~93.0~VKT01A2525$$$$~0~DNMG 110408-GN3602562 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3602562 108<a href="javascript:OpenDxf('3602562', 'DDJNL 2525M-11' , 'IscarDxf' , '3602562-DDJNL 2525M-11');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3602562&itemDesc=DDJNL 2525M-11"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3602562&itemDesc=DDJNL 2525M-11"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
3D Representation
Assembly Video
2D Representation
  Spare Parts
5507140RDT 3-255° Rhombic seats
7005583SR 40085ITorx screw
Seat screw		Details
7004439LCGR-3R-Clamp
Details
7004461SR RC3Right-left screw
Details
7000037HW 2.5Hex key
Details
7005562KSP 3Clamp spring
Details
