Family Designation: S-DDUNR/L R-Clamp boring bars carrying ISO negative DNMG inserts.
Right-hand shown

Right-hand shown

Item Designation: S40U DDUNR-15
DCONMS LF LDRED H HFB WF DMIN HF GAMP GAMF IC HAND CCMS CSP  KAPR  MIID  GICATGIREMgiic
40.00350.0050.036.019.827.0048.001.8-6.0-10.012.70~RZYL22G4000h$06~0~93.0~DNMG 150608-GN3602580 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
3602580 101<a href="javascript:OpenDxf('3602580', 'S40U DDUNR-15' , 'IscarDxf' , '3602580-S40U DDUNR-15');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3602580&itemDesc=S40U DDUNR-15"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=3602580&itemDesc=S40U DDUNR-15"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
3D Representation
Assembly Video

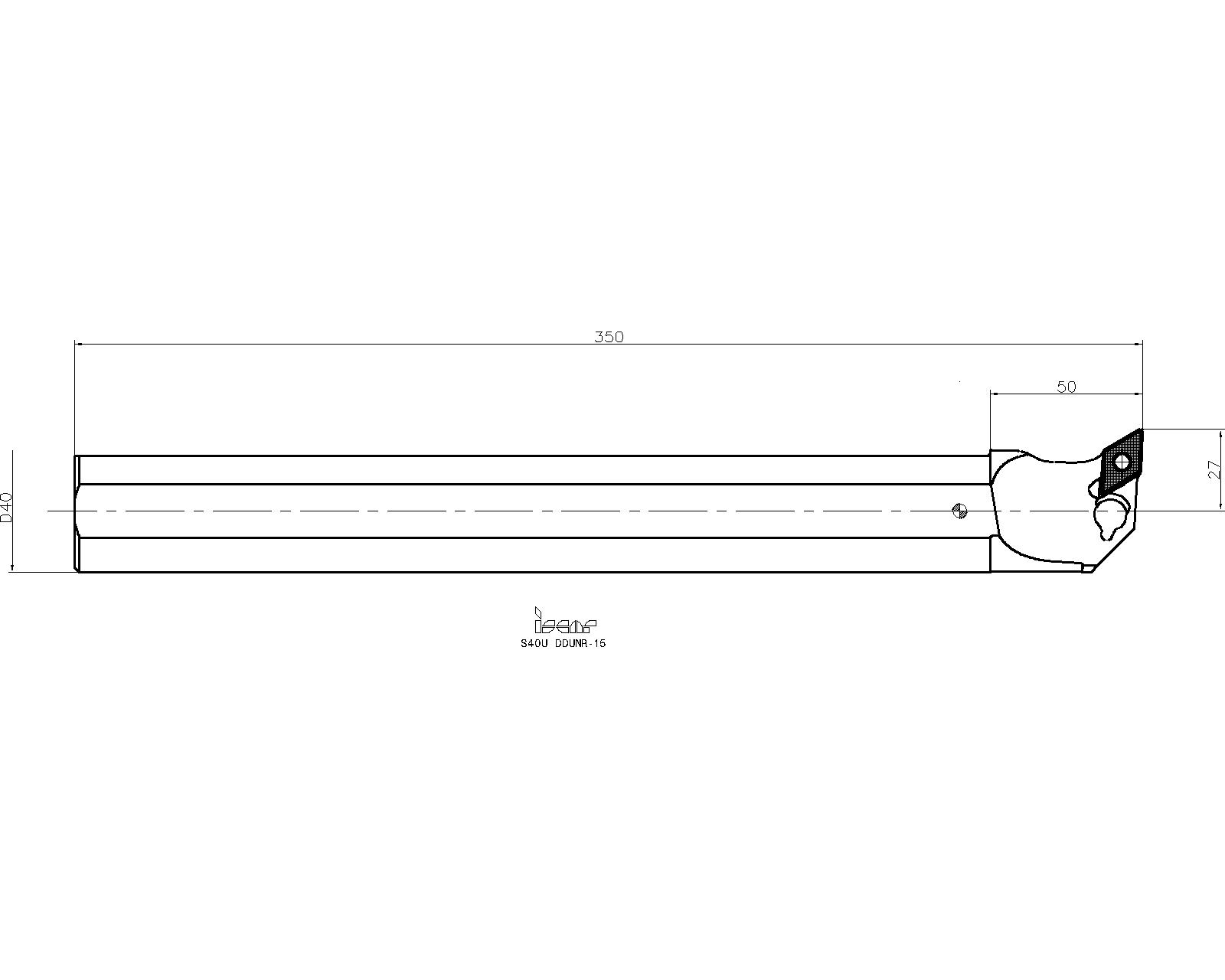

2D Representation
  Spare Parts
5520066TDN 42255° Rhombic seats
Use for DNMG 1506.. inserts
5560065TDN 432
(Optional, should be ordered separately)		55° Rhombic seats
Use for DNMG 1504.. inserts
7000168SP 4Spring pin
Details
7002781LCGR-4R-Clamp
Details
7003108SR 10400270-25.5Right-left screw
Details
7000265T-15/5Torx key flag
Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
