Family Designation: A/E/S-SDUCR/L

Screw lock boring bars carrying 55° rhombic inserts with 7° clearance.

Right-hand shown

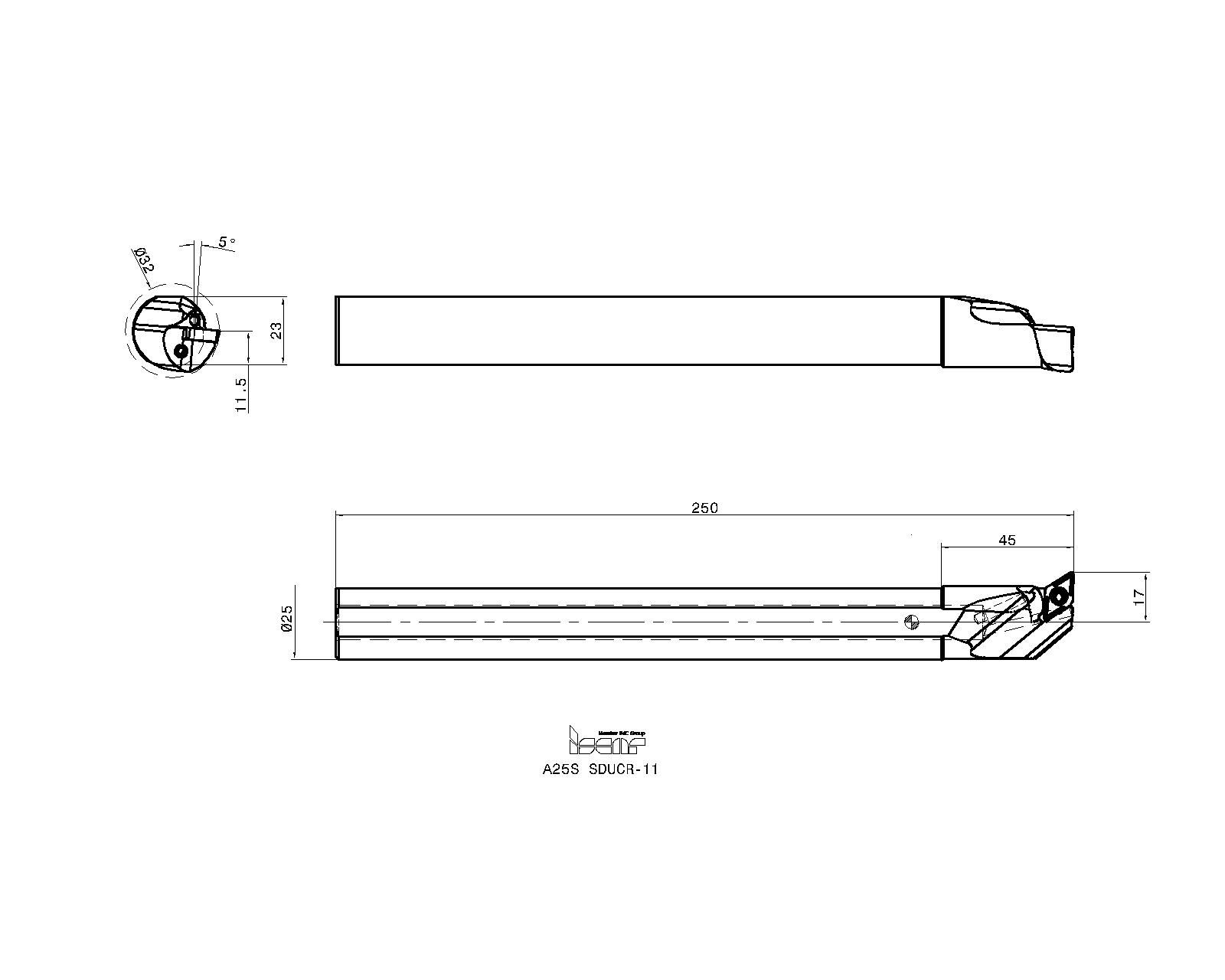

Item Designation: A25S SDUCR-11

IC	DCONMS	LF	LDRED	H	HFB	WF	HF	DMIN	GAMP	GAMF	Shank m.	CSP	HAND	CCMS	KAPR	MIID	GICAT	GIREM	giic
9.52~	25.00	250.00	45.0	23.0	12.0	17.00	0.5	32.00	0.0	-5.0	S	1	R	ZYL22G2500h$06~	93.0~	DCMT 11T302-PF	3602688		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3602688		1	96	672				<a href="javascript:OpenDxf('3602688', 'A25S SDUCR-11' , 'IscarDxf' , '3602688-A25S SDUCR-11');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3602688&itemDesc=A25S SDUCR-11"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3602688&itemDesc=A25S SDUCR-11"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole

Spare Parts
	7000036	HW 2.0	Hex key	Details
	7000225	SR 16-236 P	Torx screw	Details
General recommendation for tightening torque:3 N*m
	7000265	T-15/5	Torx key flag	Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
	7000824	PL 25	Coolant fitting	Details
With R1/8 internal thread
