Family Designation: SDHCR/L-S

Screw lock tools carrying 55° diamond inserts with 7° clearance angle for the Swiss-type machines.

Right-hand shown

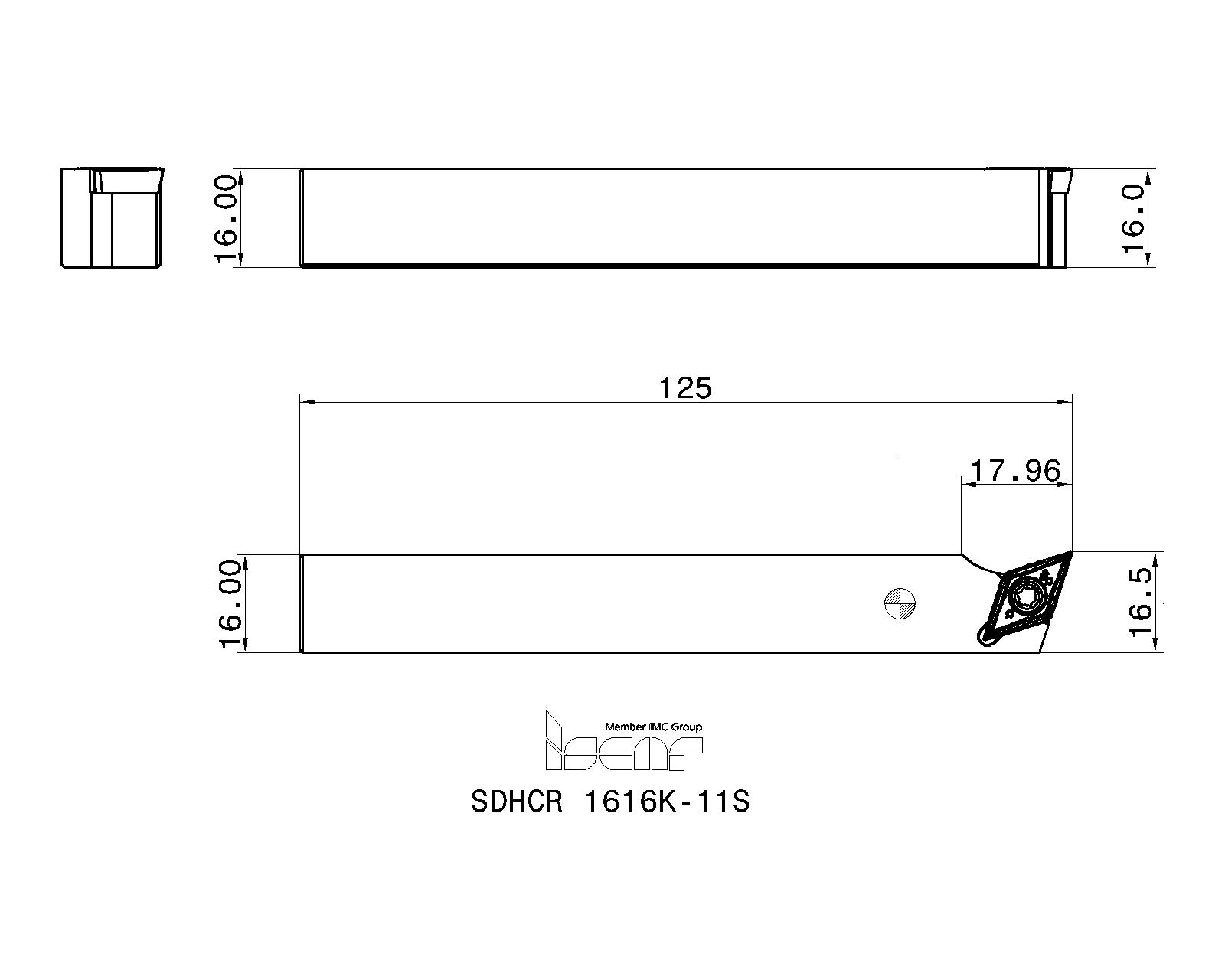

Item Designation: SDHCR 1616K-11S

IC	H	HF	B	LF	LH	WF	OAW	GAMP	GAMF	SFMT	HAND	Insert	KAPR	Kr°	Tool typ	MTP	IIC2	IIC3	IIC4	BMC	MINI	UST	HBKW	ISCTMP		CCFMS	CCMS	CCTMS	ClssID	CNSC	CNT	CP	CSP	CUBPMS	CXSC	CZCMS	EPSR	GTC	HBH	HBL	IIC	ISO STD	ISYC	KAPR S	LTA	MIID	SPI	TCDCONMS	WTA	GICAT	GIREM	giic
9.52~	16.0	16.0	16.0	125.00	20.0	16.20	-	0.0	0.0	Swiss~	R	DC..11T3~	107.5~	0.0~	~	~	~	~	~	S~	Main Spindle~	M~	-~	TUTEXTID-VKT01~	0.24~	01~	VKT01A1616$$$$~	VKT~	71E01A0E85121~	0~	-~	-~	0~	A~	0~	1616~	55.0~	TRNGEI_WISO$D_MVKT01~	-~	-~	~	Y~	309-01~	~	30.00~	DCGT 11T302-SM	~	$$$$~	8.20~	3603110		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3603110		1	0	240				<a href="javascript:OpenDxf('3603110', 'SDHCR 1616K-11S' , 'IscarDxf' , '3603110-SDHCR 1616K-11S');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3603110&itemDesc=SDHCR 1616K-11S"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3603110&itemDesc=SDHCR 1616K-11S"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1

Spare Parts
	7000224	SR 16-236	Torx screw	Details
Recommended tightening torque:5.3 Nm (47 lbfin)
	7000265	T-15/5	Torx key flag	Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
