Family Designation: PDJNR/L-JHP Lever lock tools with channels for high-pressure coolant, carrying 55° negative rhombic inserts.
Representative Image

Representative Image

 300 BAR (4350 PSI) MAX.

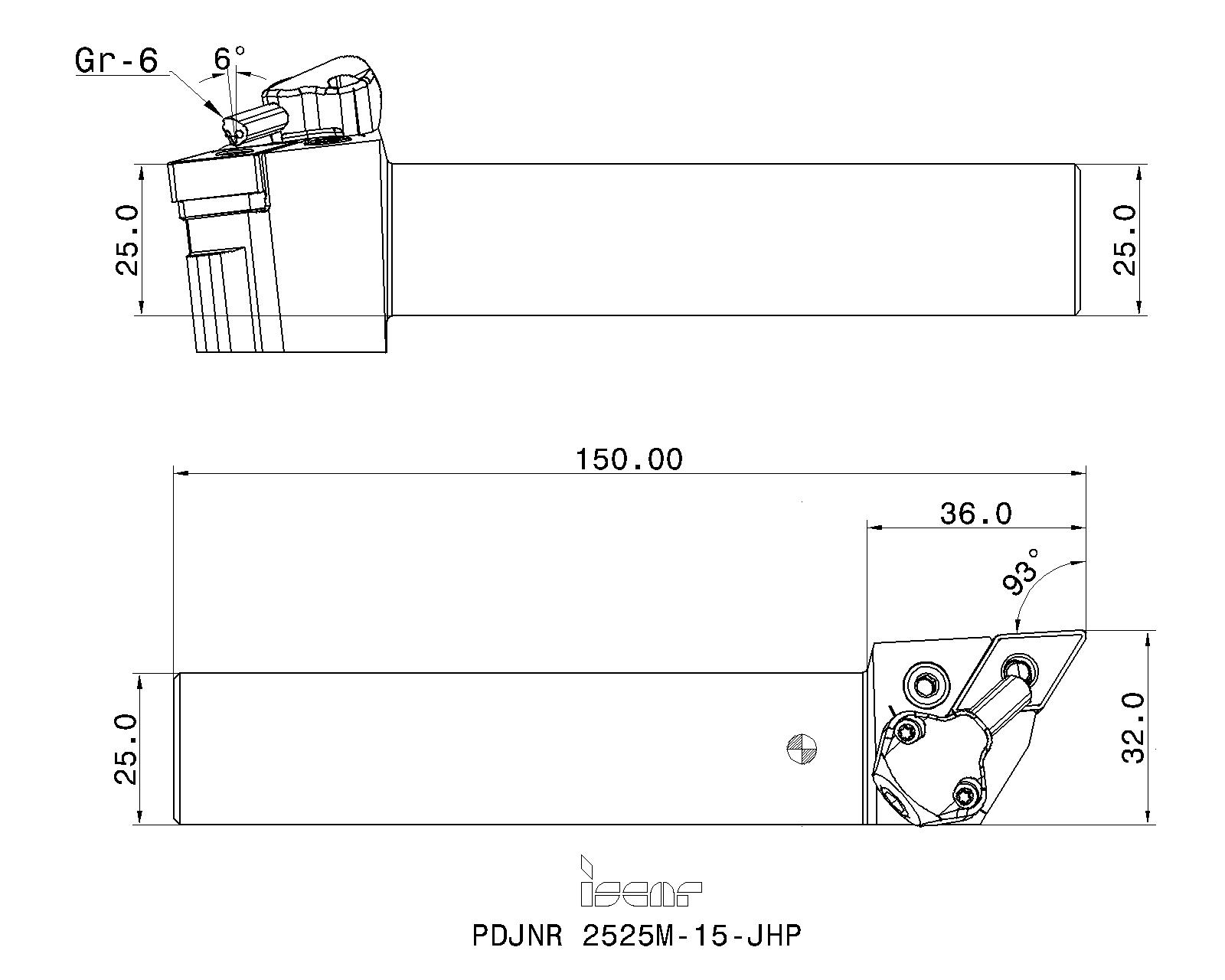

Item Designation: PDJNR 2525M-15-JHP
IC B H HF LF LH WF GAMF KAPR  HAND CCMS CSP  MIID  GICATGIREMgiic
12.70~25.025.025.0150.0036.032.00-6.093.0R~VKT01A2525$$$$~1~DNMG 150608-GN3603121 0
Catalog NoNEOITAFiles PackageAvailUSAAvailEUAvailFarEastAdd to favoritesP21 Properties FileAdd to AssemblySTPStock Availability
   US        EU     E. Asia		P21ITAStockPerUser
3603121 041628<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3603121&itemDesc=PDJNR 2525M-15-JHP"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a>          <a href="FilesDownload.aspx?FileType=P&cat=3603121&itemDesc=PDJNR 2525M-15-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a><a href="https://www.iscar.com/ITA?item=3603121&units=M&lang=EN" OnClick="writeToGoogleAnalytics('CatalogIconsClicks', 'ITA', 'ItemPage');" target="_blank"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
Items Per Package : 1
For more details, click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
5520066TDN 42255° Rhombic seats
Details
5560065TDN 432
(Optional, should be ordered separately)		55° Rhombic seats
Details
Use for DNMG 1504.. inserts
7000099PN 3-4Punch
Details
7000082LR 4DLever
Details
7000199SR 117-2010Screw
Details
7000168SP 4Spring pin
Details
4305918CU-D-JHPJHP cooling unit
Details
7006100SR M4X4 DIN913 TL360Plug
Details
7000273T-8/5Torx key flag
Details
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
7000036HW 2.0Hex key
Details
7000039HW 3.0Hex key
Details
