Family Designation: PDACR/L-S-JHP Lever lock tools with channels for high-pressure coolant carrying 55° positive rhombic inserts. The tools were designed for Swiss automatic machines.
Right-hand shown

Right-hand shown
Right-hand shown

Right-hand shown
 140 BAR (2000 PSI) MAX.

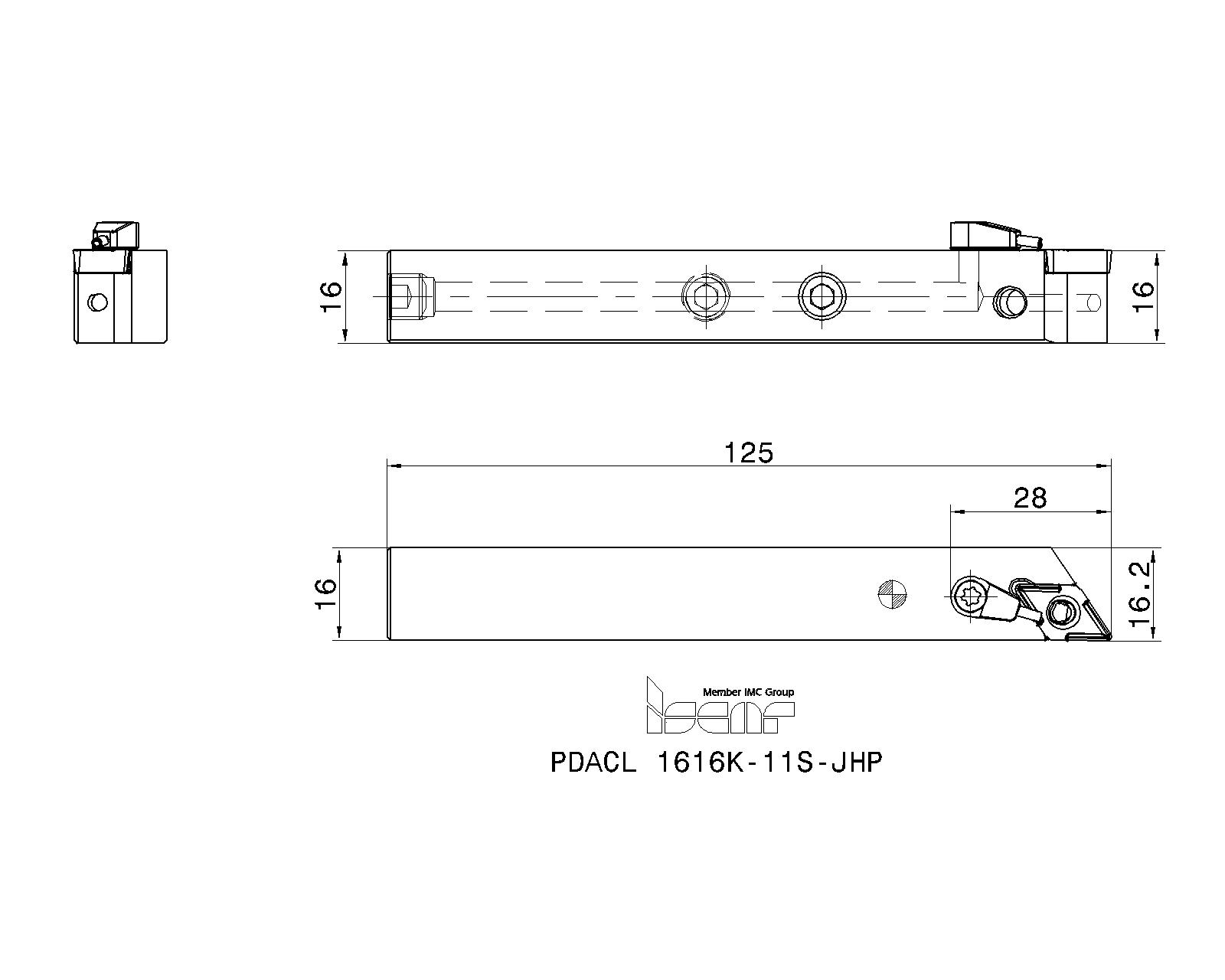

Item Designation: PDACL 1616K-11S-JHP
IC H HF B LF LH WF HBKW GAMP GAMF HAND KAPR  CCMS CSP  MIID  GICATGIREMgiic
9.52~16.016.016.0125.0028.016.20-0.00.0L~90.0~VKT01A1616$$$$~1~DCMT 11T308-SM3603216 0
Catalog NoNEOITAFiles PackageAvailUSAAvailEUAvailFarEastAdd to favoritesP21 Properties FileAdd to AssemblySTPStock Availability
   US        EU     E. Asia
P21ITAStockPerUser
3603216 000<a href="FilesDownload.aspx?FileType=S&sFolder=STP&cat=3603216&itemDesc=PDACL 1616K-11S-JHP"><img src="./media/icons/icon_stp.svg" title="STPD" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPD', 'ItemPage');"></a>          <a href="FilesDownload.aspx?FileType=P&cat=3603216&itemDesc=PDACL 1616K-11S-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a><a href="https://www.iscar.com/ITA?item=3603216&units=M&lang=EN" OnClick="writeToGoogleAnalytics('CatalogIconsClicks', 'ITA', 'ItemPage');" target="_blank"><img src="./media/icons/ita_link.svg" title="Optimize cutting data using Iscar Tool Advisor" width="27px" border="0"></a>
Items Per Package : 1
3D Representation
Assembly Video
2D Representation
  Spare Parts
7002661SL LV-3Lever
Details
7002663SL PI-3Locking pin
Details
7002662SR 10400150Screw
Details
7000032HW 2.5/5Hex flag key
Details
7006620SR 5/16UNF TL360Plug
Details
4308015S-CU-JHP-A SETJHP cooling unit
Details
