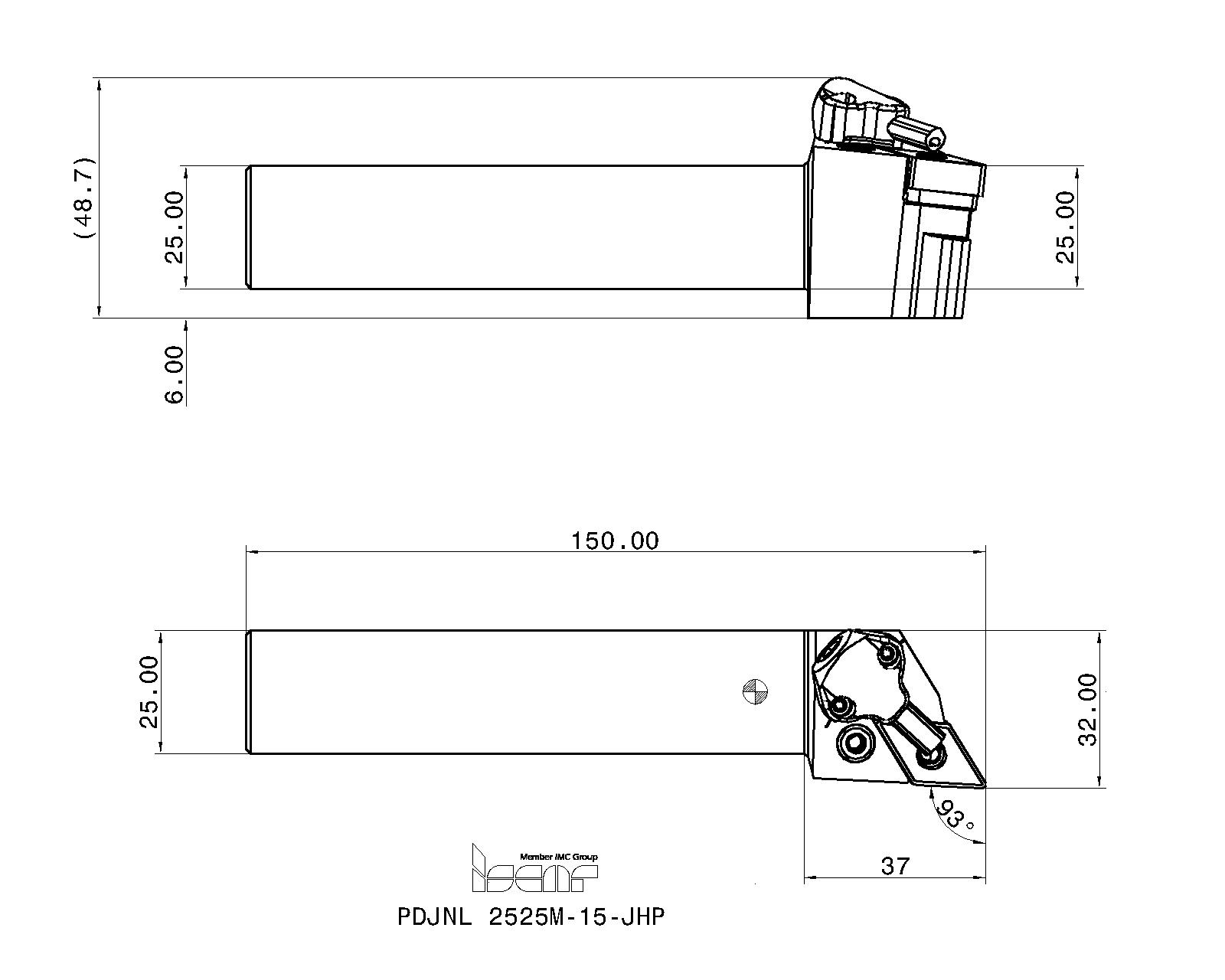

Family Designation: PDJNR/L-JHP

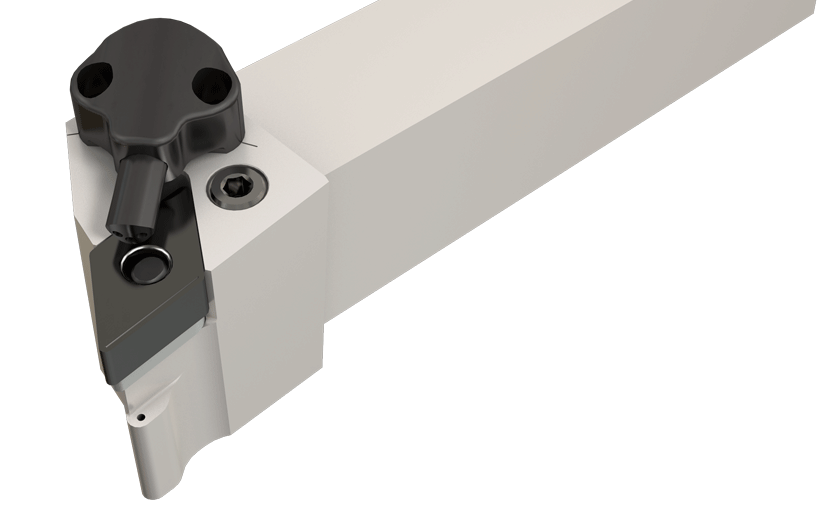

Lever lock tools with channels for high-pressure coolant, carrying 55° negative rhombic inserts.

Item Designation: PDJNL 2525M-15-JHP

IC	B	H	HF	LF	LH	WF	GAMF	KAPR	HAND	CCMS	CSP	MIID	GICAT	GIREM	giic
12.70~	25.0	25.0	25.0	150.00	36.0	32.00	-6.0	93.0	L~	VKT01A2525$$$$~	1~	DNMG 150608-GN	3603243		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3603243		1	0	23				<a href="javascript:OpenDxf('3603243', 'PDJNL 2525M-15-JHP' , 'IscarDxf' , '3603243-PDJNL 2525M-15-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3603243&itemDesc=PDJNL 2525M-15-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3603243&itemDesc=PDJNL 2525M-15-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
For more details, click on "More Info"

Spare Parts
	5520066	TDN 422	55° Rhombic seats
	5560065	TDN 432 (Optional, should be ordered separately)	55° Rhombic seats
Use for DNMG 1504.. inserts
	7000099	PN 3-4	Punch	Details
	7000082	LR 4D	Lever	Details
	7000199	SR 117-2010	Screw	Details
	7000168	SP 4	Spring pin	Details
	4305918	CU-D-JHP	JHP cooling unit
	7006100	SR M4X4 DIN913 TL360	Plug	Details
	7000273	T-8/5	Torx key flag	Details
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
	7000036	HW 2.0	Hex key	Details
	7000039	HW 3.0	Hex key	Details
