Family Designation: C#-SDNCN-13-SL-JHP

Tools with CAMFIX (ISO 26623-1) shanks and channels for high-pressure coolant carrying positive 55° rhombic inserts. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications.

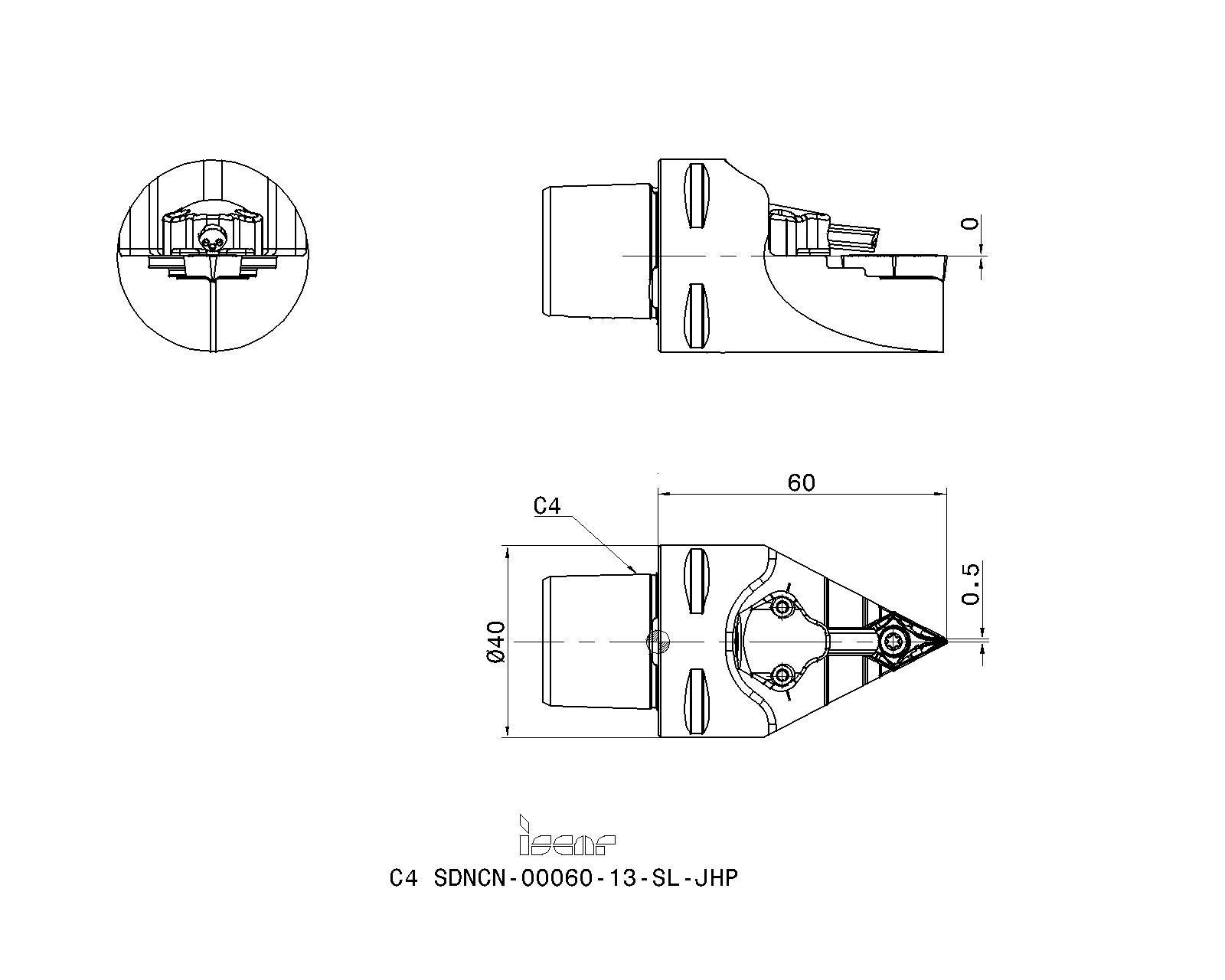

Item Designation: C4 SDNCN-00060-13-SL-JHP

DCONMS	WF	LF	GAMP	GAMF	IC		CSP	Insert	OAL	CP	CDI	BMC	SS	UST	Mod	ISCTMP		BD	BDRED	CCFMS	CCMS	CCTMS	CDX	CICT	ClssID	ClssID_2	CNSC	CUBPMS	CUTDIA	CWN	CWX	CXSC	CZCMS	DMIN	ECA	EPSR	GTC	GTC_2	HAND	HF	HTA	IIC	IIC_2	ISCTMP_2	ISYC	ISYC_2	KAPR	LDRED	LH	LU	MIID	MIID_2	S. Std.	TCDCONMS	WTA	GICAT	GIREM	giic
40.00	0.50	60.00	0.0	0.0	11.00~	Y~	1~	DCMT 13T5-SL~	84.00~	140	1	S~	40~	C~	250~	TUTEXID-CCS01~	0.34~	-~	-~	01~	CCS01C0400$$$$~	CCS~	-~	1~	71E01A0EAF067~	-~	1~	C~	-~	-~	-~	5~	0400~	-~	-~	55.0~	TRNGEI_WISO$D_MCCS01~	-~	N~	0.0~	~	IS$$493436362143714~	-~	-~	309-07~	-~	62.5~	-~	-~	-~	DCMT 13T504-F3P-SL	-~	CAMFIX~	$$$$~	0.50~	3603572		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3603572		3	0	24				<a href="javascript:OpenDxf('3603572', 'C4 SDNCN-00060-13-SL-JHP' , 'IscarDxf' , '3603572-C4 SDNCN-00060-13-SL-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3603572&itemDesc=C4 SDNCN-00060-13-SL-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3603572&itemDesc=C4 SDNCN-00060-13-SL-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	4305918	CU-D-JHP	JHP cooling unit
	7006977	SR M4X0.7-L9.6 IP15	Torx screw	Details
Recommended tightening torque:4.8 Nm (42.5 lbfin)
	7000273	T-8/5	Torx key flag	Details
For limiting torque, use optional 7007379 BLD 4 T08-1.2NM blade & 7007319 HSD 4-1.2NM handle.
