ISCAR Cutting Tools - Metal Working Tools - PDACR/L-S-JHP : 3605928

Geometry Checker ×

Family Designation: PDACR/L-S-JHP

Lever lock tools with channels for high-pressure coolant carrying 55° positive rhombic inserts. The tools were designed for Swiss automatic machines.

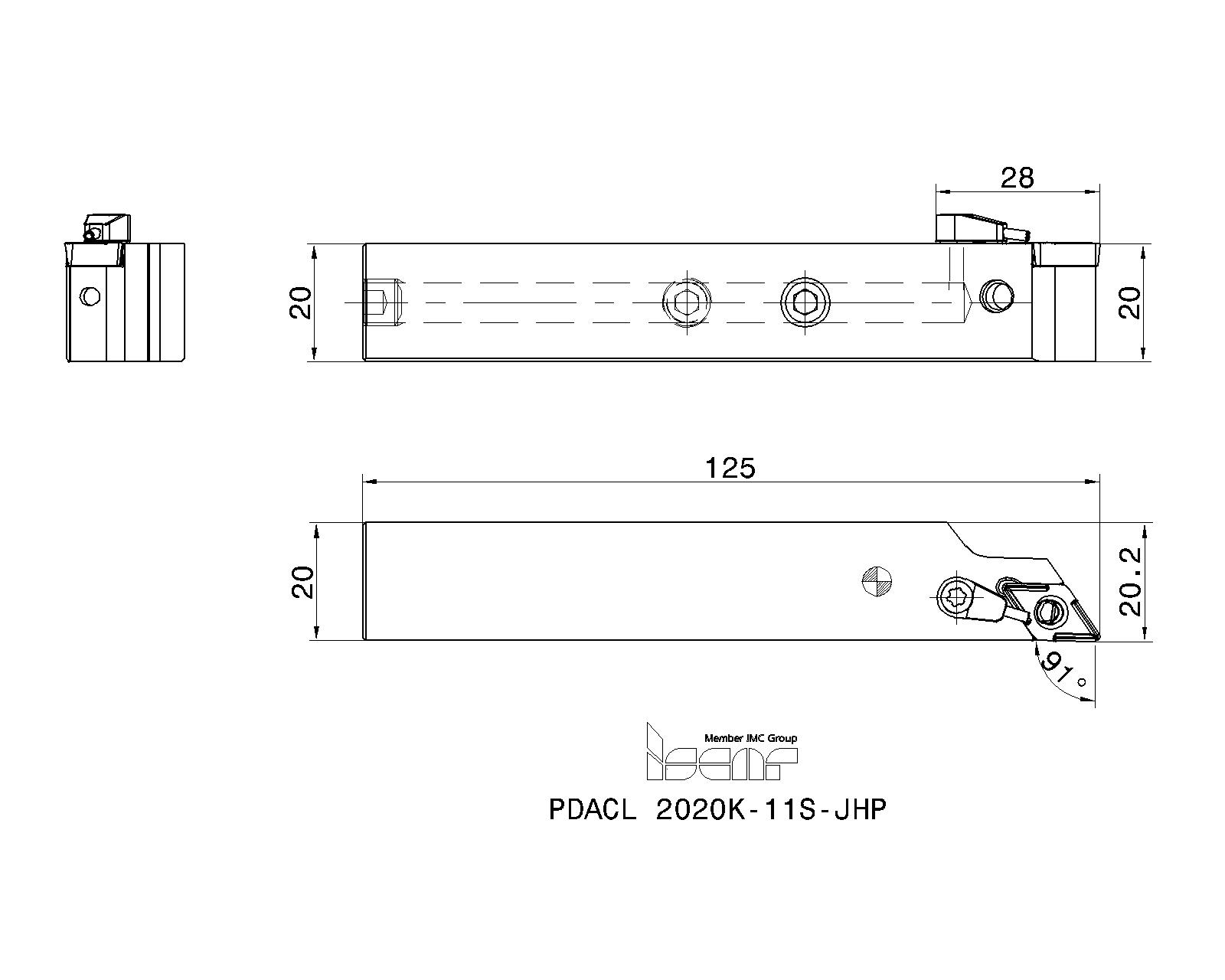

Right-hand shown

Item Designation: PDACL 2020K-11S-JHP

IC	H	HF	B	LF	LH	WF	HBKW	GAMP	GAMF	HAND	KAPR	CCMS	CSP	MIID	GICAT	GIREM	giic
9.52~	20.0	20.0	20.0	125.00	28.0	20.20	-	0.0	0.0	L~	90.0~	VKT01A2020$$$$~	1~	DCMT 11T308-SM	3605928		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3605928		3	0	13				<a href="javascript:OpenDxf('3605928', 'PDACL 2020K-11S-JHP' , 'IscarDxf' , '3605928-PDACL 2020K-11S-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3605928&itemDesc=PDACL 2020K-11S-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3605928&itemDesc=PDACL 2020K-11S-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
