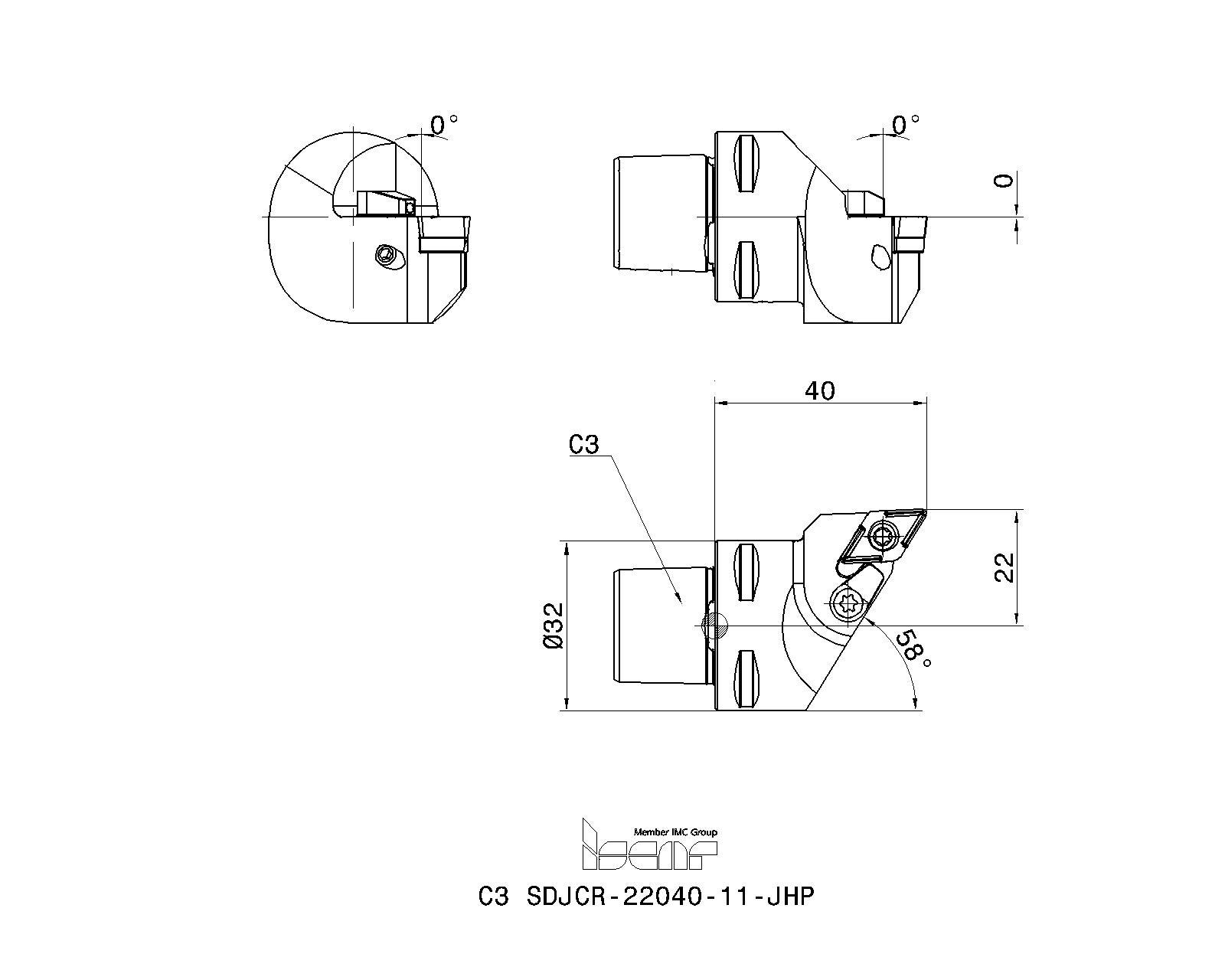

Family Designation: C#-SDJCR-JHP

Screw clamp tools with CAMFIX (ISO 26623-1) shanks and channels for high-pressure coolant, carrying positive 55° rhombic inserts.

Right-hand shown

Item Designation: C3 SDJCR-22040-11-JHP

DCONMS	WF	LF	HAND	IC		CSP	Insert	OAL	CP	CDI	BMC	SS	IIC	UST	ECA	Mod	ISO STD	ISCTMP		BD	BDRED	CCFMS	CCMS	CCTMS	CDX	CICT	ClssID	ClssID_2	CNSC	CUBPMS	CUTDIA	CWN	CWX	CXSC	CZCMS	DMIN	EPSR	GAMF	GAMP	GTC	GTC_2	HF	HTA	IIC_2	ISCTMP_2	ISYC	ISYC_2	KAPR	KAPR S	LDRED	LH	LTA	LU	MIID	MIID_2	S. Std.	TCDCONMS	WTA	GICAT	GIREM	giic
32.00	22.00	40.00	R	9.52~	Y~	1~	DC.. 11T3~	59.00~	140	0	S~	32~	-~	C~	58.0~	250~	Y~	TUTEXID-CCS01~	0.47~	-~	-~	01~	CCS01C0320$$$$~	CCS~	-~	1~	71E01A0EAF067~	-~	1~	C~	-~	-~	-~	5~	0320~	-~	55.0~	-~	-~	TRNGEI_WISO$D_MCCS01~	-~	0.0~	~	-~	-~	309-07~	-~	93.0~	Ja~	-~	-~	0.00~	-~	DCMT 11T308-F3P	-~	CAMFIX~	$$$$~	22.00~	3606772		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3606772		1	0	0				<a href="javascript:OpenDxf('3606772', 'C3 SDJCR-22040-11-JHP' , 'IscarDxf' , '3606772-C3 SDJCR-22040-11-JHP');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3606772&itemDesc=C3 SDJCR-22040-11-JHP"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3606772&itemDesc=C3 SDJCR-22040-11-JHP"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1

Spare Parts
	5520063	TDC 3-1P	55° Rhombic seats
	7002104	SR TC-3P	Seat screw	Details
	7000225	SR 16-236 P	Torx screw	Details
General recommendation for tightening torque:3 Nm (26.5 lbfin)
	7000265	T-15/5	Torx key flag	Details
For limiting torque, use optional 3309305 BLD 4 T15-4.8NM blade & 3309304 HSD 4-4.8NM handle.
	4308103	CH-1.9D-JHP	JHP cooling unit
	4390481	WASHER 4.2X5.6X0.5	Flat washer
	7006100	SR M4X4 DIN913 TL360	Plug	Details
	7000043	HW 4.0	Hex key	Details
