Family Designation: PDACR/L-S

Side lever lock tools carrying 55° positive rhombic inserts for Swiss automatic machines.

Right-hand shown

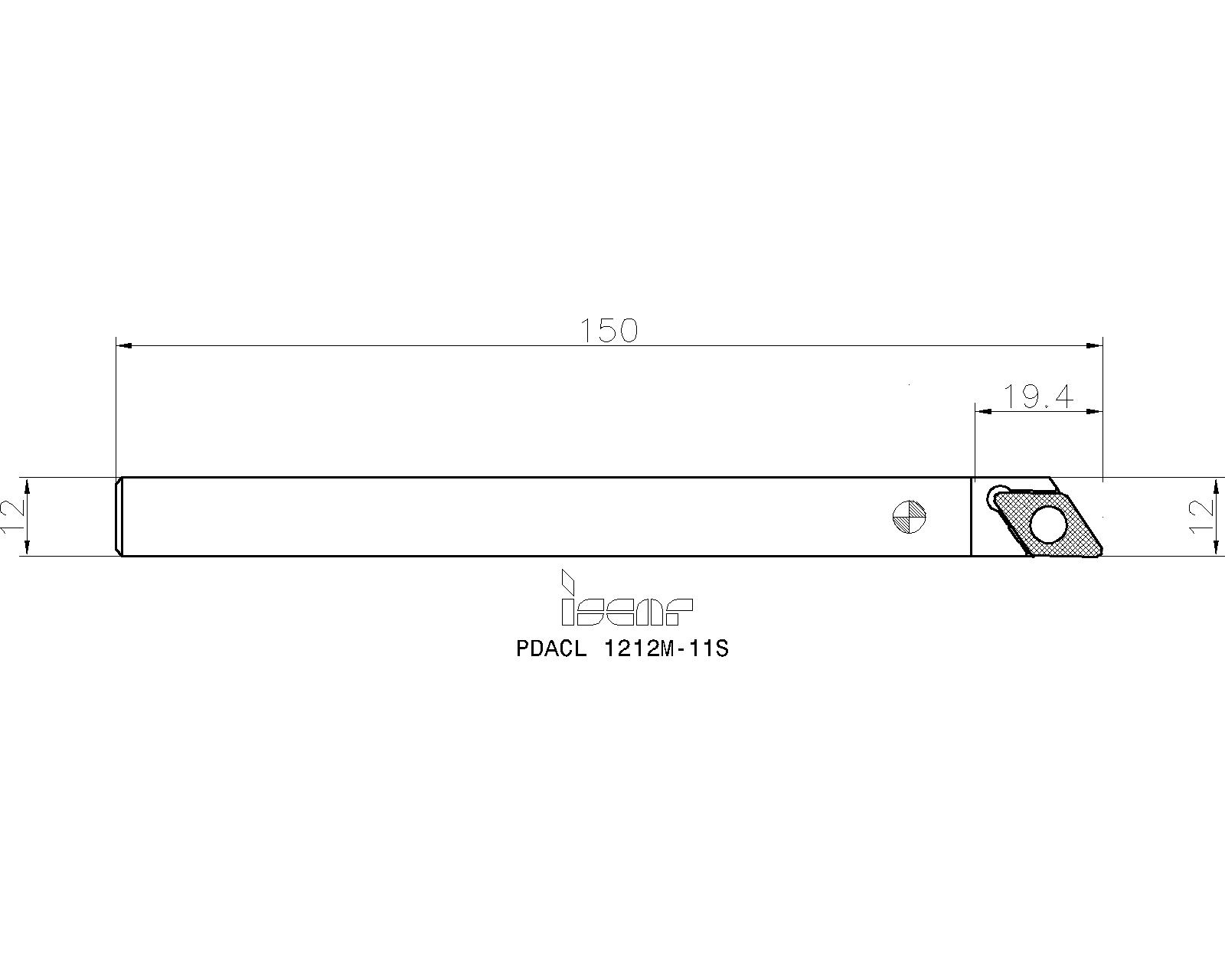

Item Designation: PDACL 1212M-11S

IC	H	HF	LH	HBH	B	LF	WF	HBKW	GAMP	GAMF	HAND	Insert	SFMT	KAPR	Kr°	MTP	Mod	MINI	IIC2	IIC3	IIC4	BMC	UST	ISCTMP		CCFMS	CCMS	CCTMS	ClssID	CNSC	CNT	CP	CSP	CUBPMS	CXSC	CZCMS	EPSR	GTC	HBL	IIC	ISO STD	ISYC	KAPR S	LTA	MIID	OHN	SPI	TCDCONMS	Tool typ	WTA	GICAT	GIREM	giic
9.52~	12.0	12.0	-	-	12.0	150.00	12.00	2.00	0.0	0.0	L	DC..11T3~	Swiss~	90.0~	0.0~	~	200~	Main Spindle~	IS$$DC?3-11T3??L~	~	~	S~	M~	TUTEXTID-VKT01~	0.19~	01~	VKT01A1212$$$$~	VKT~	71E01A0E85121~	0~	-~	-~	0~	A~	0~	1212~	55.0~	TRNGEI_WISO$D_MVKT01~	-~	~	Y~	309-01~	~	21.70~	DCGT 11T302-SM	-~	~	$$$$~	SQUARE~	-6.00~	3692622		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
3692622		1	0	40				<a href="javascript:OpenDxf('3692622', 'PDACL 1212M-11S' , 'IscarDxf' , '3692622-PDACL 1212M-11S');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3692622&itemDesc=PDACL 1212M-11S"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3692622&itemDesc=PDACL 1212M-11S"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
The clamping screw may by transferred to the opposite side if needed
