Family Designation: SDACR/L-S

Screw lock tools for Swiss-type machines carrying 55° diamond inserts with 7° clearance angle.

Right-hand shown

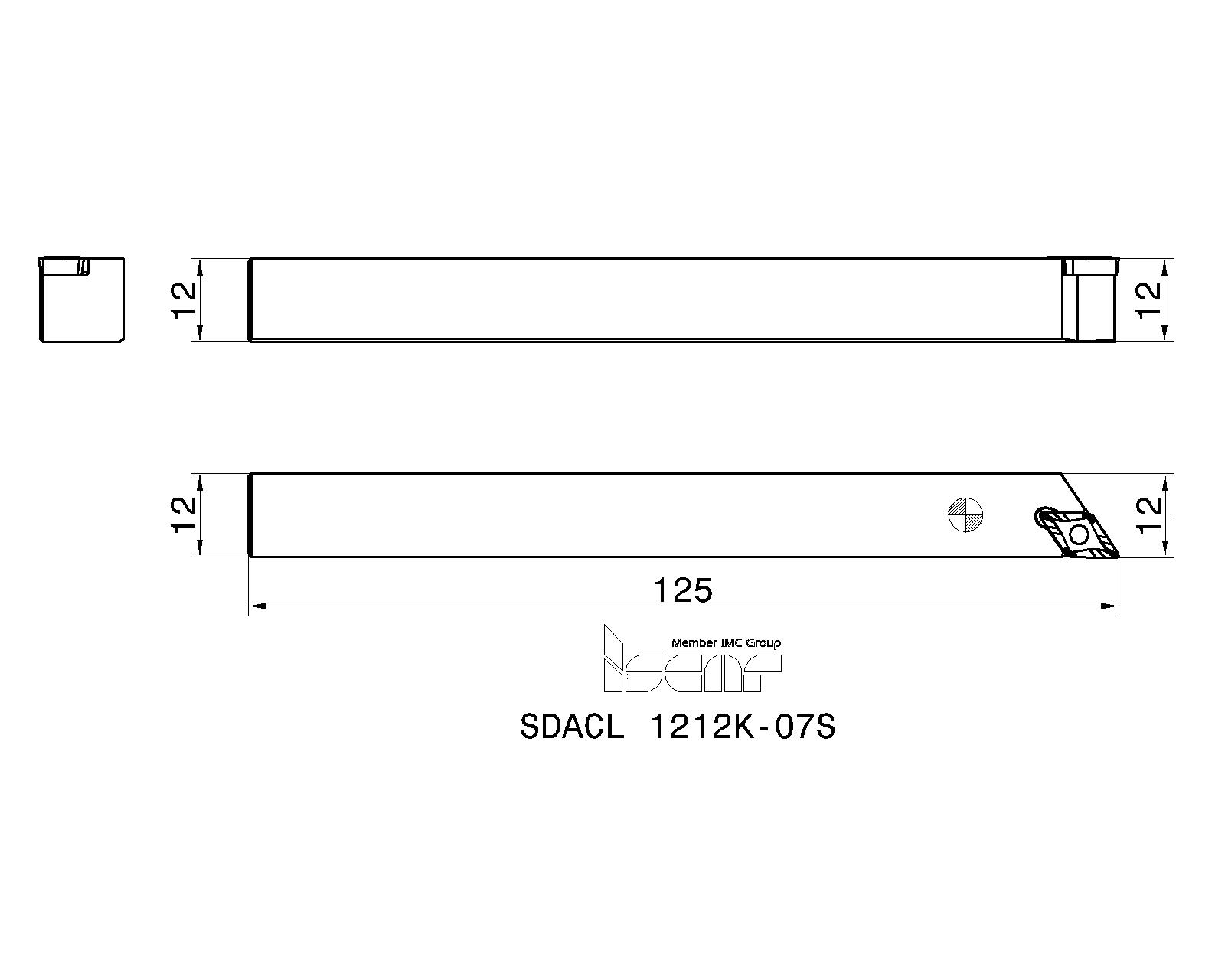

Item Designation: SDACL 1212K-07S

IC	H	HF	B	LF	LH	WF	OAW	GAMP	GAMF	HAND	KAPR	CCMS	CSP	MIID	GICAT	GIREM	giic
6.35~	12.0	12.0	12.0	125.00	12.0	12.20	12.20	0.0	0.0	L	90.0~	VKT01A1212$$$$~	0~	DCMT 2-0-SM	3697849		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
3697849		1	0	40				<a href="javascript:OpenDxf('3697849', 'SDACL 1212K-07S' , 'IscarDxf' , '3697849-SDACL 1212K-07S');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=3697849&itemDesc=SDACL 1212K-07S"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=3697849&itemDesc=SDACL 1212K-07S"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1

Spare Parts
	7000217	SR 14-548	Torx screw	Details
Recommended tightening torque:0.9 N*m
	7000271	T-7/5	Torx key flag	Details
For limiting torque, use optional 7007377 BLD 4 T07-0.9NM blade & 7007318 HSD 4-0.9NM handle.
