Family Designation: TPS M-H (HSS) HSS right-hand 40° spiral flute machine taps - ISO metric coarse threads, according to DIN 13, for hardened steel and high temperature alloys.


 H TAP COLOR CODE (RED)  HSS-E TAP MATERIAL  6H TAP TOLERANCE  60 THREAD ANGLE  FORM C CHAMPFER LEAD
Item Designation: TPS M-2.2X0.45-H
Ord TDZ TP  OAL THL LU DCONMS NOF  DRVS  Pre-holeFHA S3 BMC TCL ISYC TPT TTP TD THFT ISCTMP ClssID GRDMFG GTC LTA CutEdMatCoating GICATGIREMgiic
2~M2.20.45045.008.0-2.8032.101.7540.01~H~~301-01~F~INT~2.20~M60~~0.00~71E01A0A5355D~HEST ~~17.00~HSS ~Steam tempered ~4445120 1
Catalog NoGrade & VcAlternativeFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia		STPLP21
4445120 HEST300<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=4445120&cat=4445120&itemDesc=TPS M-2.2X0.45-H"><img src="./media/icons/icon_Package.svg" width="27px" border="0"></a><a href="javascript:OpenDxf('4445120', 'TPS M-2.2X0.45-H' , 'IscarDxf' , '4445120-TPS M-2.2X0.45-H');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4445120&itemDesc=TPS M-2.2X0.45-H"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4445120&itemDesc=TPS M-2.2X0.45-H"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
The material designation HE was recently changed to HEST. HEST and HE are identical products and therefore you may still encounter HE designated items.
3D Representation

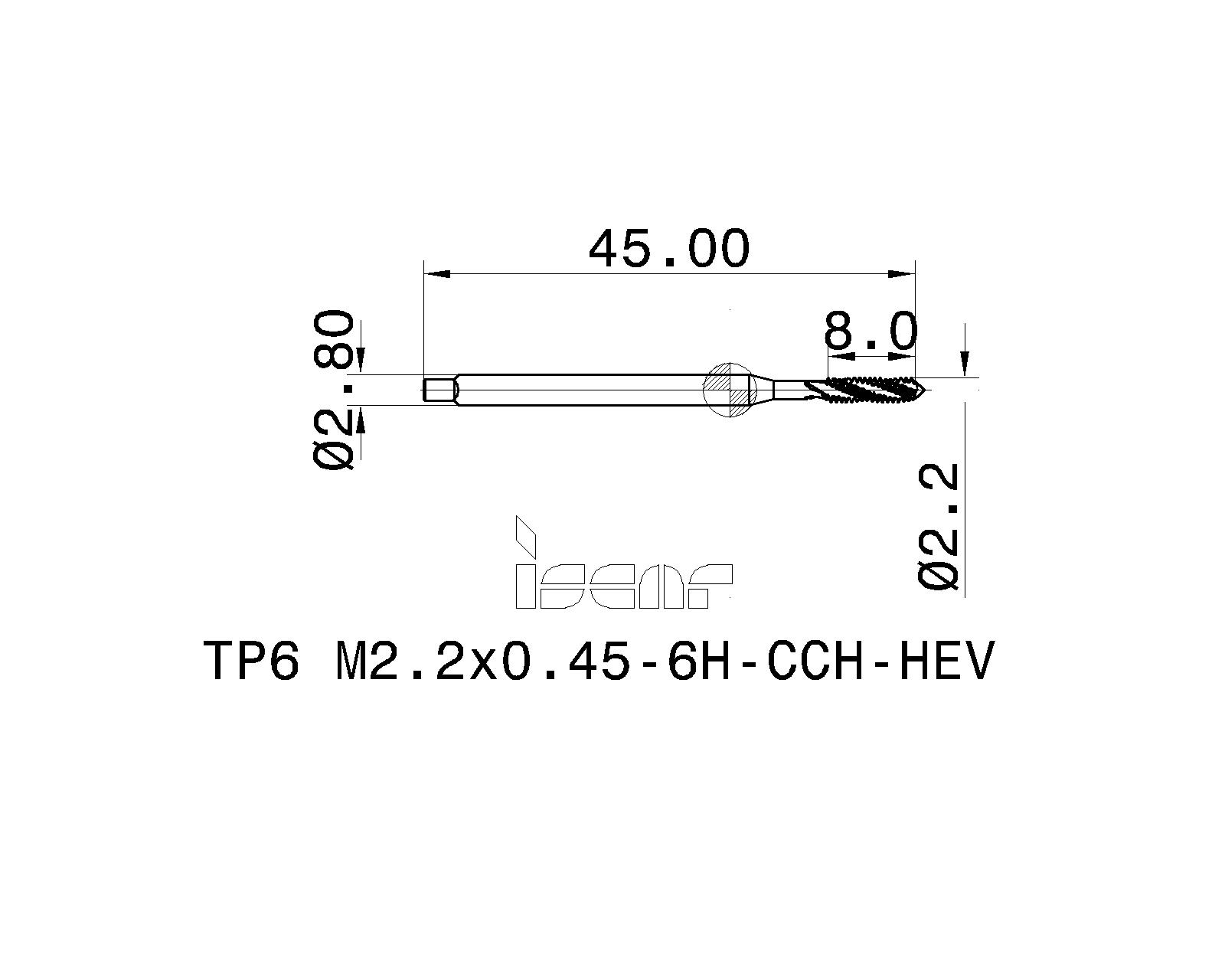

2D Representation
