ISCAR Cutting Tools - Metal Working Tools - RM-SET-T-B : 4445251

Geometry Checker ×

Family Designation: RM-SET-T-B

Single-edged indexable reamers for through holes.

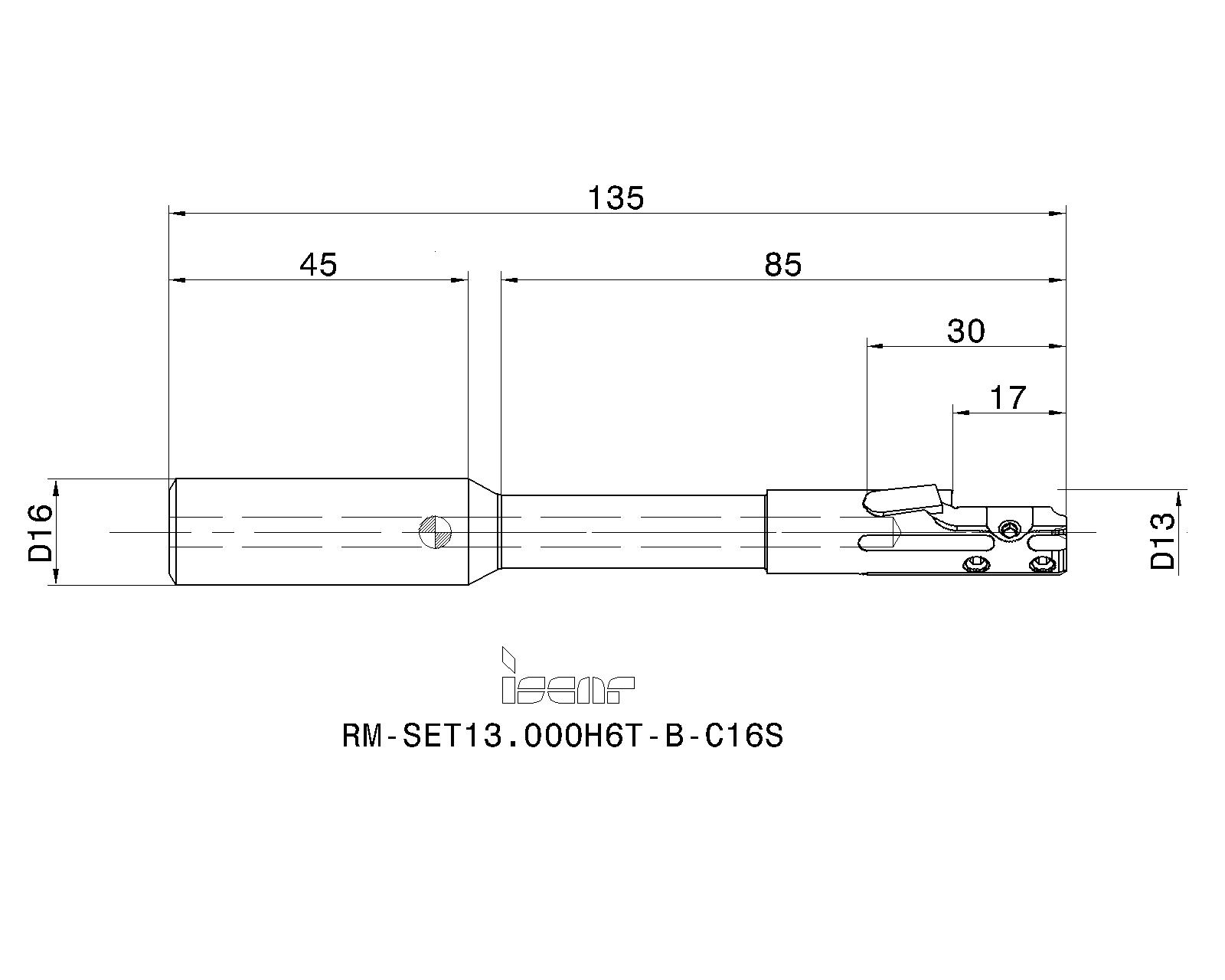

Item Designation: RM-SET13.000H6T-B-C16S

DC	APMX	L6	LU	LS	OAL	DCONMS	SSC	C.D	Semi- (Q)	LTA	BMC	ISYC	LPR		CSP	Shank	ISCTMP		ClssID	GTC	IIC	GICAT	GIREM	giic
13.000	17.00	30.00	85.0	45.0	135.00	16.00	3.0	T~	1~	95.00~	S~	312-01~	~	~	1~	C~	~	0.17~	71E01A07BC535~	~	IS$$671856689735250~	4445251		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
4445251		3	0	88				<a href="javascript:OpenDxf('4445251', 'RM-SET13.000H6T-B-C16S' , 'IscarDxf' , '4445251-RM-SET13.000H6T-B-C16S');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4445251&itemDesc=RM-SET13.000H6T-B-C16S"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4445251&itemDesc=RM-SET13.000H6T-B-C16S"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For user guide and cutting conditions, click on "More Info"
