Family Designation: C#-ADE

Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for external square shank tools.

Left-hand shown

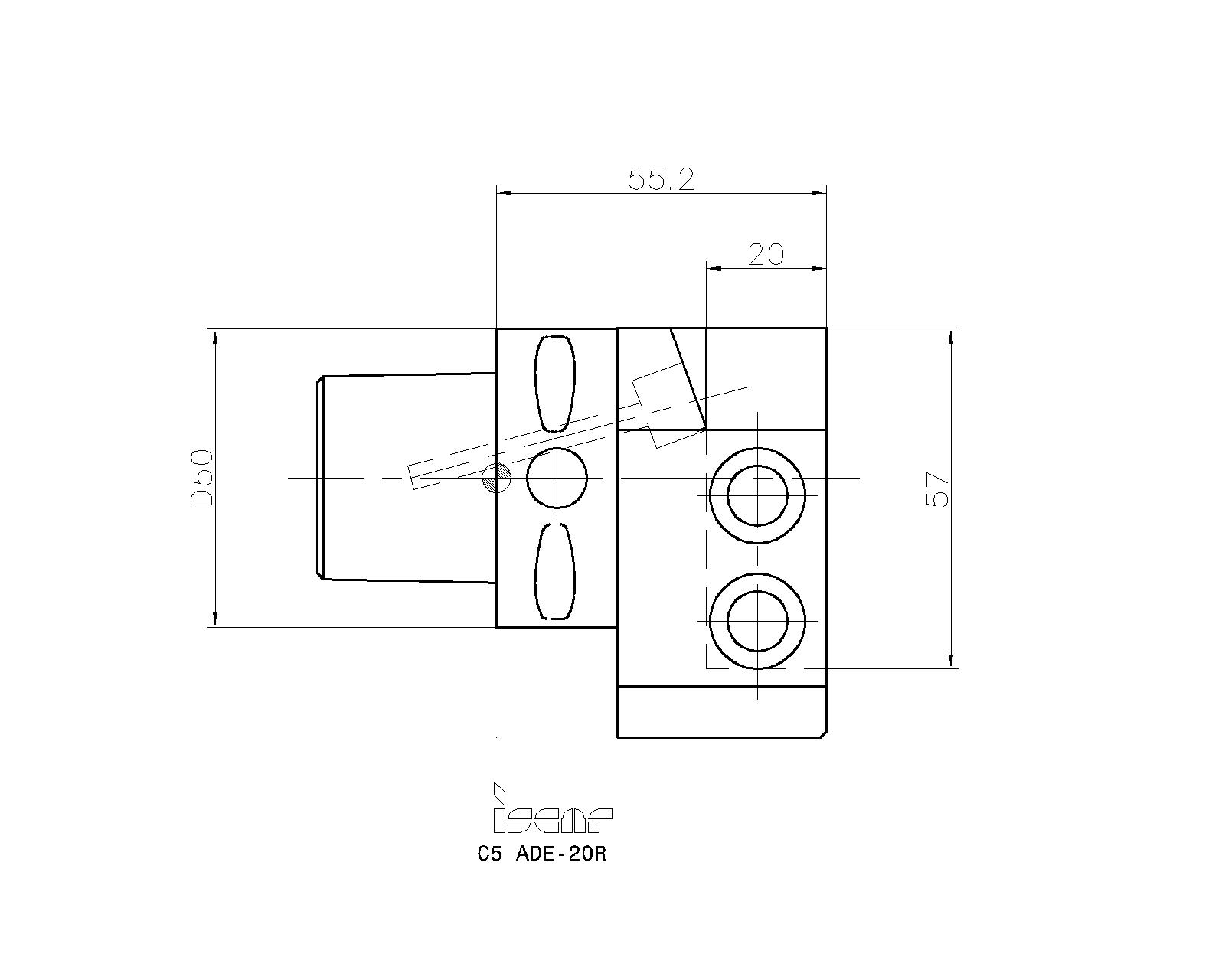

Item Designation: C5 ADE-20L

DCONMS	LPR	L2	B	BD	LSCWS	l1	H	h2	HAND	CSP	OAL	CP	DCP	GICAT	GIREM	giic
50.00	55.20	35.10	20.0	87.00	57.0	32.00	20.0	26.0	L	1~	85.20~	100	1	4500470		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4500470		3	0	64				<a href="javascript:OpenDxf('4500470', 'C5 ADE-20L' , 'IscarDxf' , '4500470-C5 ADE-20L');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4500470&itemDesc=C5 ADE-20L"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4500470&itemDesc=C5 ADE-20L"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1
Use the tools with AD suffix
Regular tools should be shortened

Spare Parts
	7000043	HW 4.0	Hex key	Details
	7001929	SR M8X10 DIN916	Socket set with flat	Details
Stopper screw
	7002043	HW 8.0 (Optional, should be ordered separately)	Hex key	Details
	4561605	COOLING TUBE C5 (Optional, should be ordered separately)	Cooling tube
	3313025	WRENCH COOL TUBE C5 (Optional, should be ordered separately)	Cooling tube wrench	Details
	7000899	EZ 125	Cooling nozzle	Details
