ISCAR Cutting Tools - Metal Working Tools - ER-SRK : 4500775

Geometry Checker ×

Family Designation: ER-SRK

Thermal shrinking chucks with integral ER collet, for solid carbide tools only.

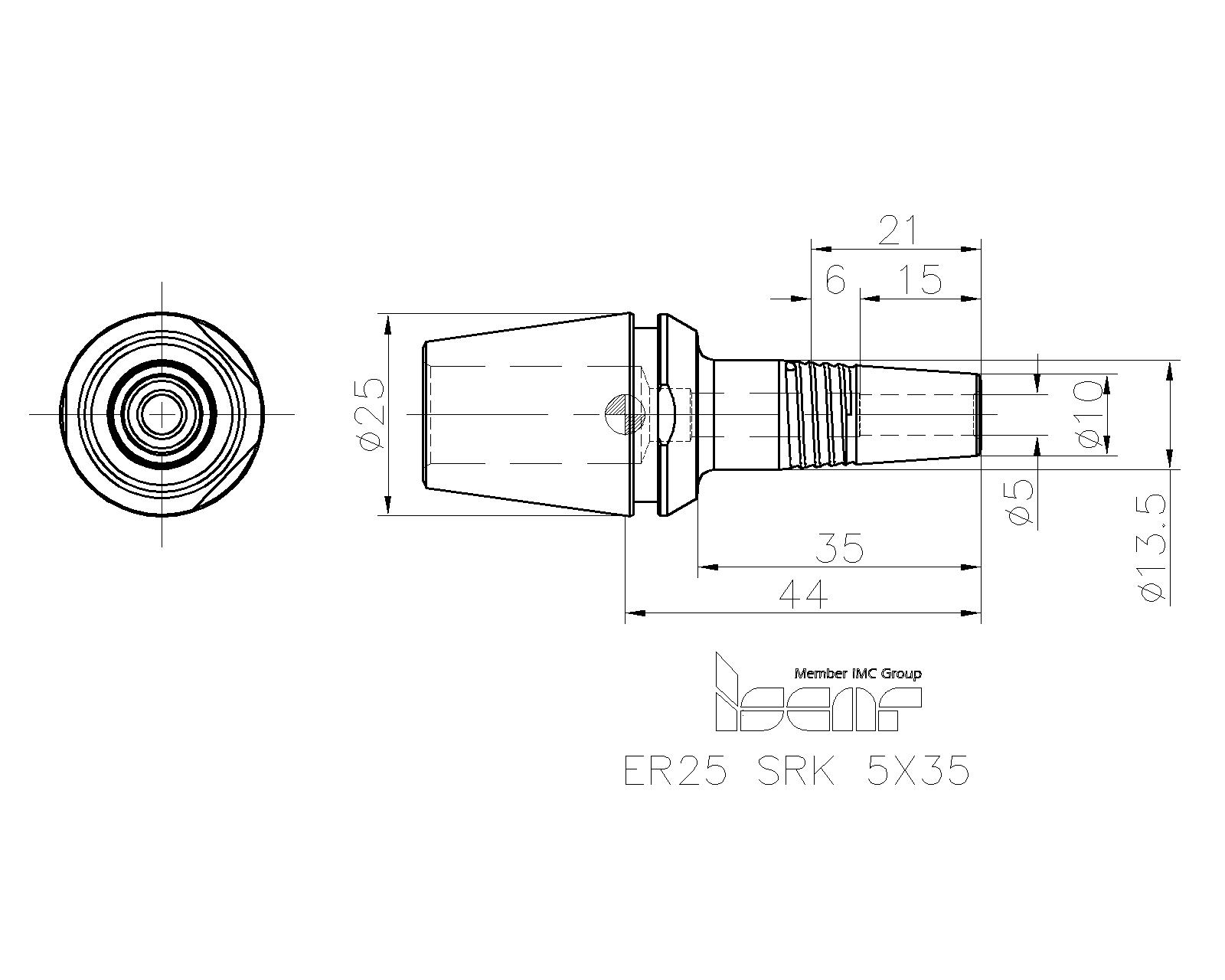

Item Designation: ER25 SRK 5X35

SS	DCONWS	DCONMS	LB	LBX	LF	LSCNWS	LSCWS	ADJRGA	BD	BTED	THID	Key	OAL		CSP	GICAT	GIREM	giic
ER25	5.00	25.00	24.50	35.00	44.00	15.00	21.00	6.00	13.50	10.00	M6	3.00	70.00~	0.10	1~	4500775		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4500775		1	0	72				<a href="javascript:OpenDxf('4500775', 'ER25 SRK 5X35' , 'IscarDxf' , '4500775-ER25 SRK 5X35');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4500775&itemDesc=ER25 SRK 5X35"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4500775&itemDesc=ER25 SRK 5X35"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For carbide tools only
For through tool coolant, preset screw must be removed

Spare Parts
	7000538	SR M6X10 DIN916	Socket set with flat	Details
