Family Designation: ST-ER-MF-D (double-ended)

Double-ended mini collets with cylindrical shanks and a clamping flat.

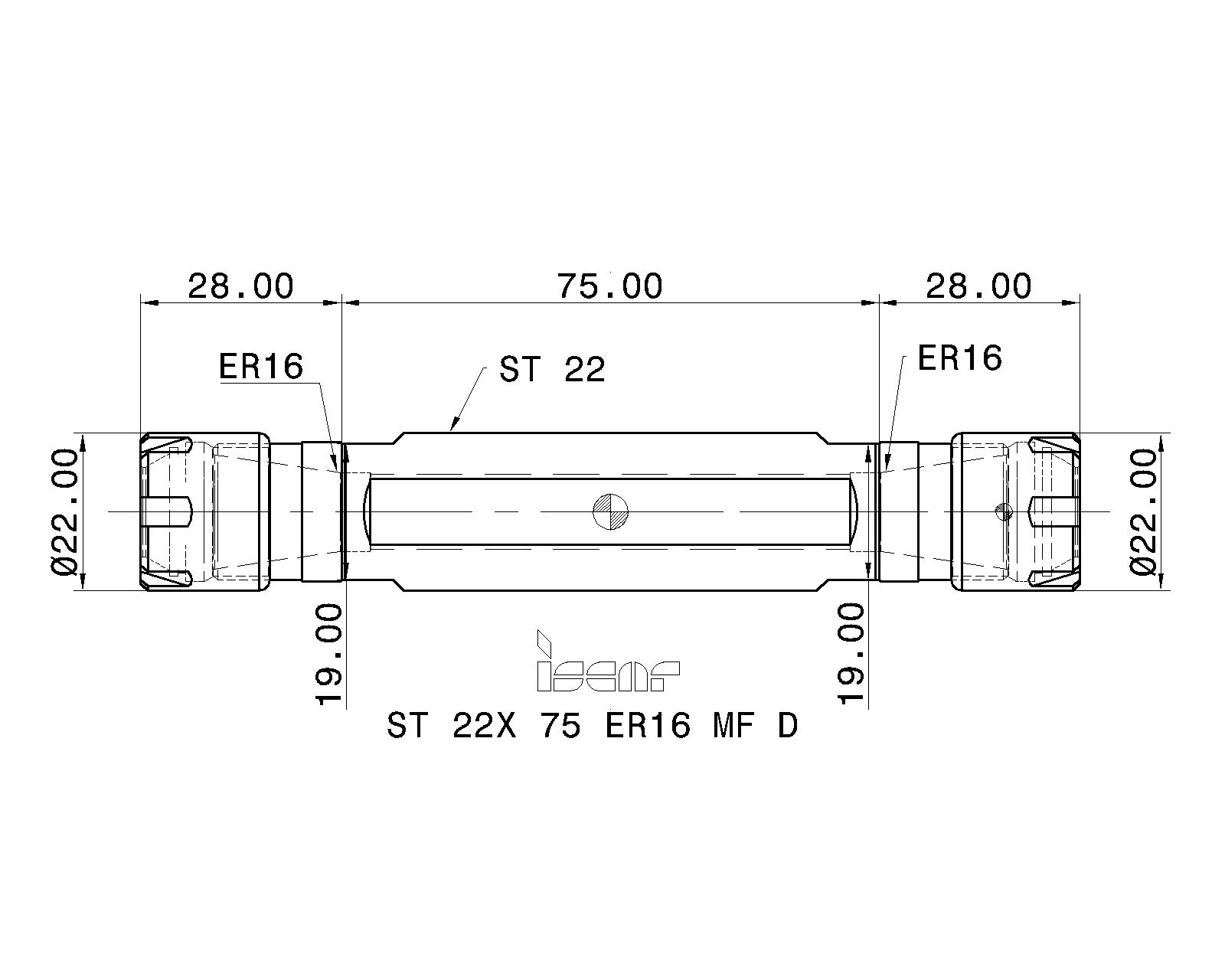

Item Designation: ST 22X 75 ER16 MF D

DCONMS	LS	CSI	DCONNWS	DCONXWS	BD	CND	OHN	DRVS	OAL		CSP	GICAT	GIREM	giic
22.00	75.00	ER16	0.5	10.0	22.00	10.5	28.00	19.0	131.00~	0.21	1~	4502013	For Star machines	0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4502013		3	0	240				<a href="javascript:OpenDxf('4502013', 'ST 22X 75 ER16 MF D' , 'IscarDxf' , '4502013-ST 22X 75 ER16 MF D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4502013&itemDesc=ST 22X 75 ER16 MF D"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4502013&itemDesc=ST 22X 75 ER16 MF D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
For Star machines

Items Per Package : 1

Spare Parts
	4513001	NUT ER16 MINI	Mini ER clamping nut
	4513009	WRENCH ER16 MINI (Optional, should be ordered separately)	Mini ER wrench
