Family Designation: ST-ER-MF-D (double-ended)

Double-ended mini collets with cylindrical shanks and a clamping flat.

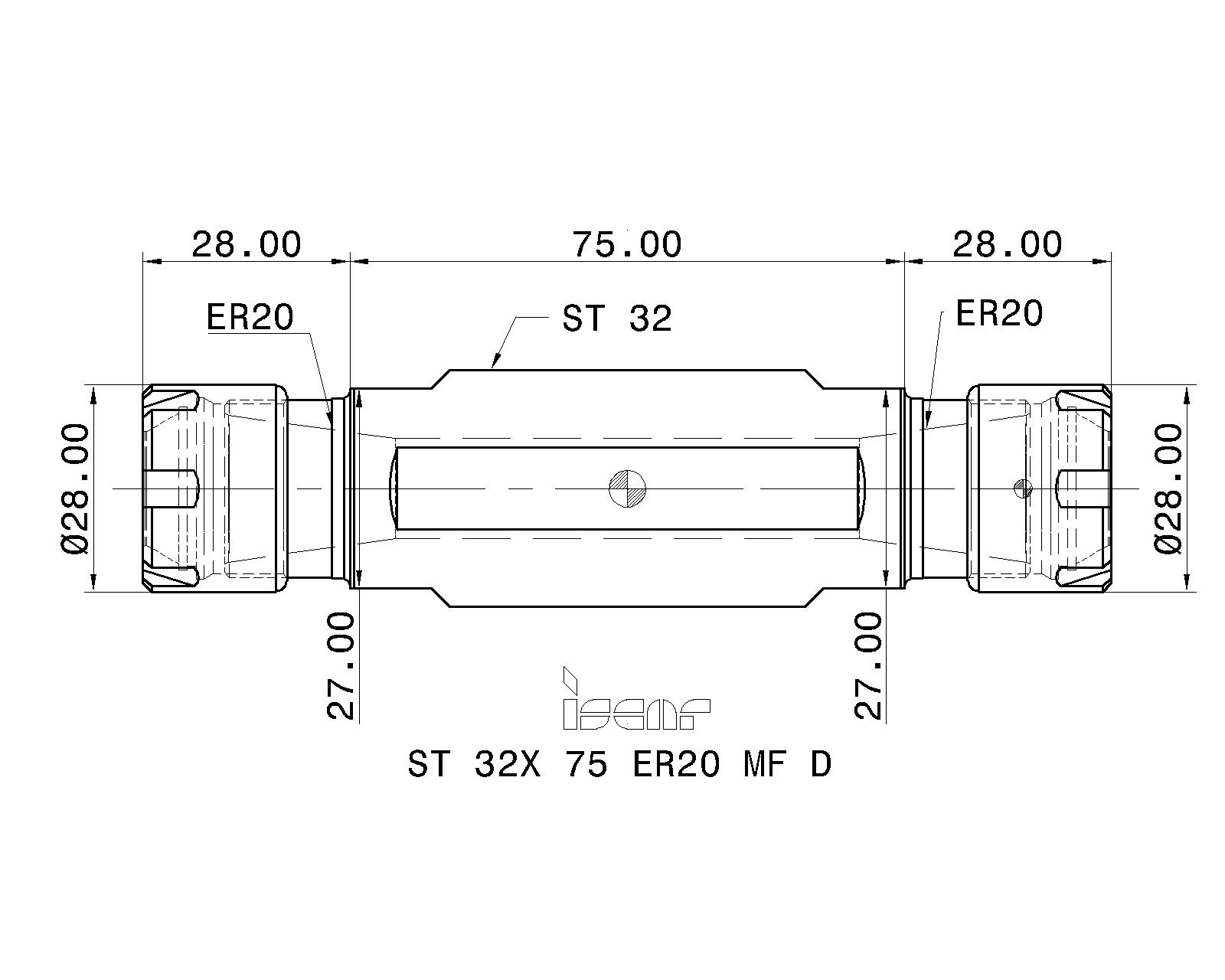

Item Designation: ST 32X 75 ER20 MF D

DCONMS	LS	CSI	DCONNWS	DCONXWS	BD	CND	OHN	DRVS	OAL		CSP	GICAT	GIREM	giic
32.00	75.00	ER20	1.0	13.0	28.00	13.5	28.00	27.0	131.00~	0.44	1~	4502016	For Star machines	0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4502016		1	0	104				<a href="javascript:OpenDxf('4502016', 'ST 32X 75 ER20 MF D' , 'IscarDxf' , '4502016-ST 32X 75 ER20 MF D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4502016&itemDesc=ST 32X 75 ER20 MF D"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4502016&itemDesc=ST 32X 75 ER20 MF D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
For Star machines

Items Per Package : 1

Spare Parts
	4513003	NUT ER20 MINI	Mini ER clamping nut	Details
	4513011	WRENCH ER20 MINI (Optional, should be ordered separately)	Mini ER wrench
