Family Designation: HSK A-ER-SHORT Short DIN6499 ER collet chucks with HSK DIN69893 form A balanceable tapered shanks.
.

.

 RUNOUT (INT) 0.003MM(.00012  HARDNESS 58-60  SURFACE FINISH N5  G2.5/20000 RPM  COOLANT THROUGH TOOL

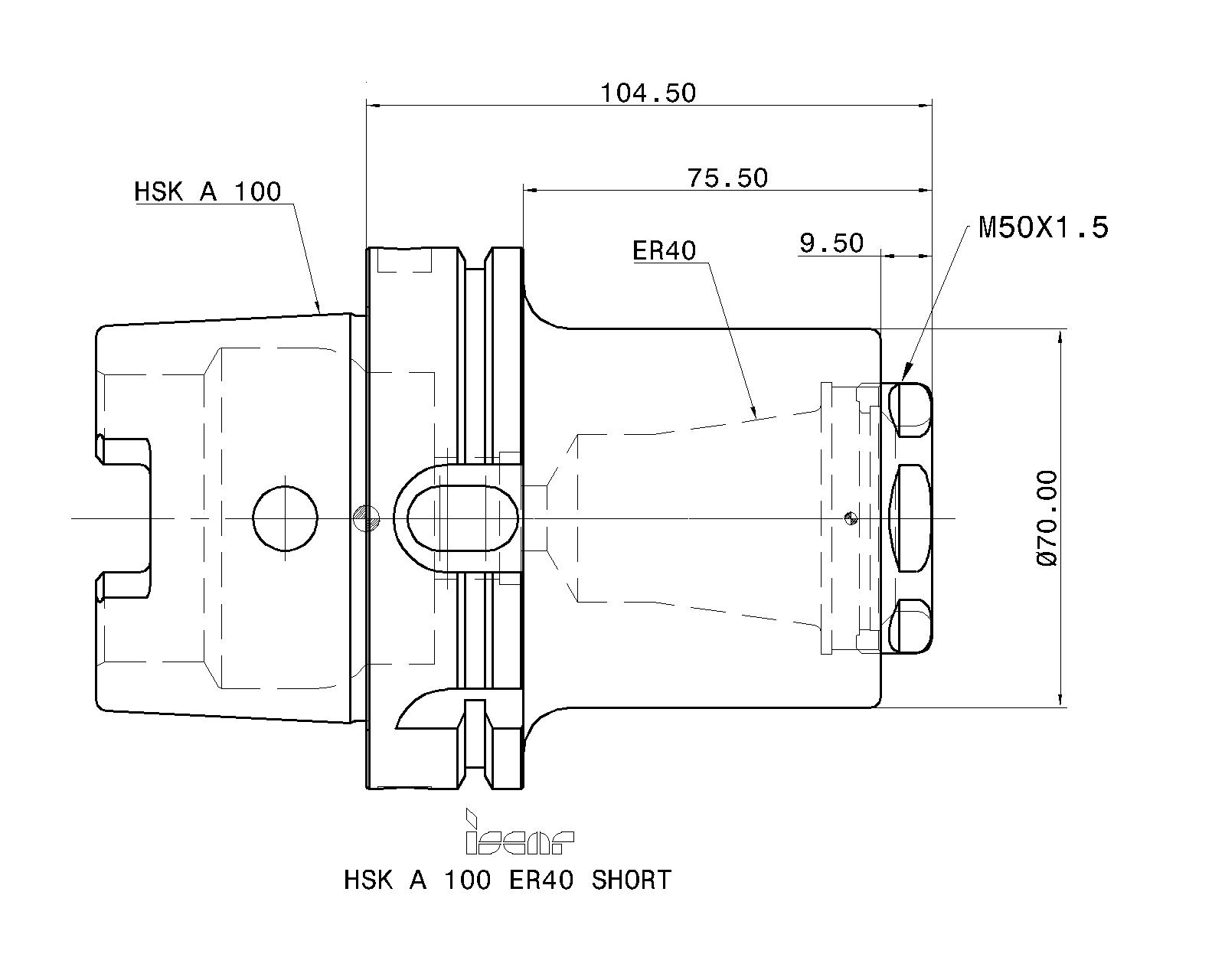

Item Designation: HSK A100 ER40 SHORT
DCONMS CSI DCONNWS  DCONXWS  BD LPR LBX LB G1 OAL DCP  CSP  CCMS GICATGIREMgiic
100.00ER403.026.070.00104.5075.59.50M50X1.5154.50~13.511~HSK01C1000$$$$~4502172 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4502172 3015<a href="javascript:OpenDxf('4502172', 'HSK A100 ER40 SHORT' , 'IscarDxf' , '4502172-HSK A100 ER40 SHORT');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4502172&itemDesc=HSK A100 ER40 SHORT"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=4502172&itemDesc=HSK A100 ER40 SHORT"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
A cooling tube must be used with all coolant through HSK spindles (to be ordered separately).
For shank dimensions, Click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
4502730NUT ER40 SHORTER short clamping nut
4503014WRENCH ER40 SHORT
(Optional, should be ordered separately)		Wrench for ER chuck nut
Details
4511691COOLING TUBE HSK A100
(Optional, should be ordered separately)		Cooling tube
4561259WRENCH COOL TUBE HSK100
(Optional, should be ordered separately)		Cooling tube wrench
