Family Designation: HSK A-EM-CX DIN6359 side clamp holders for DIN 1835 form B Weldon shanks with HSK DIN69893 form A tapered shanks.


 RUNOUT (INT) 0.005MM (.0002  HARDNESS 58-60  SURFACE FINISH N5  COOLANT THROUGH TOOL  G2.5/25000 RPM
Item Designation: HSK A63 EM25X110 CX
DCONMS DCONWS BD BD_2 LPR LB LB_2 BHTA CDI  CSP  CCMS GICATGIREMgiic
63.0025.0045.0065.00110.0010.068.0045.011.151~HSK01C0630$$$$~4503210 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4503210 1096<a href="javascript:OpenDxf('4503210', 'HSK A63 EM25X110 CX' , 'IscarDxf' , '4503210-HSK A63 EM25X110 CX');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4503210&itemDesc=HSK A63 EM25X110 CX"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4503210&itemDesc=HSK A63 EM25X110 CX"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
For shank dimensions, Click on "More Info".
3D Representation
Assembly Video

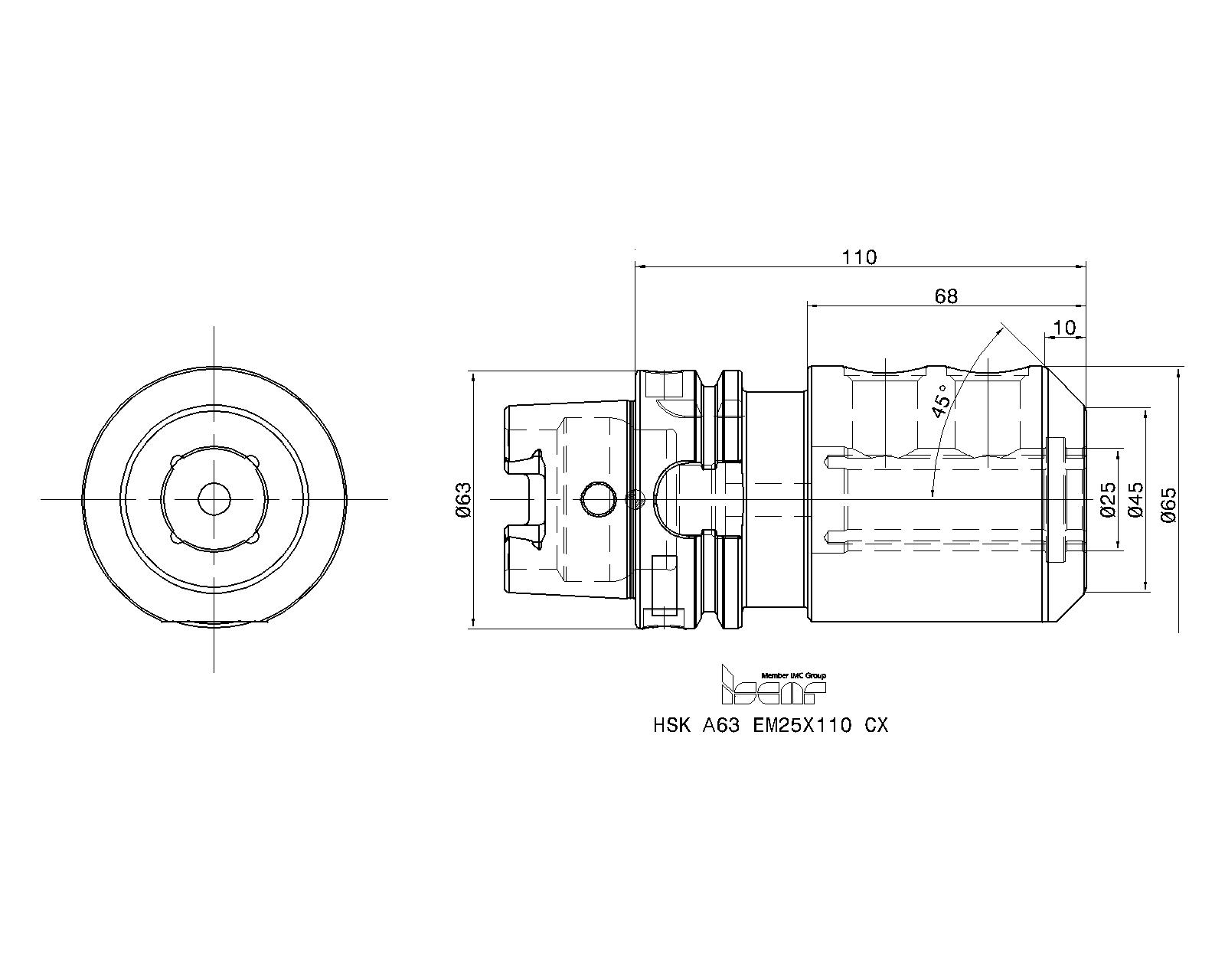

2D Representation
  Spare Parts
4561256COOLING TUBE HSK A63
(Optional, should be ordered separately)		Cooling tube
4561258WRENCH COOL TUBE HSK63
(Optional, should be ordered separately)		Cooling tube wrench
4516007SR M18X2X20 DIN1835-BSocket flat head screw
