ISCAR Cutting Tools - Metal Working Tools - CDP M-SRK : 4503786 - CDP M12 SRK 4X45
Geometry Checker ×

Family Designation: CDP M-SRK Thermal shrink chucks with FLEXFIT adaptation for clamping solid carbide endmills


 RUNOUT (INT) 0.005MM (.0002  HARDNESS 50-52  SURFACE FINISH N5  SHRINKIN  COOLANT THROUGH TOOL
Item Designation: CDP M12 SRK 4X45
DCONWS THSZMS LPR LBX LB ADJRGA LSCWS BTED BD DCONMS THID Key  DRVS  OAL TQ_3  CSP  GICATGIREMgiic
4.00M1245.0036.528.806.0018.010.0014.0021.00M52.5017.067.00~0.06331~4503786 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4503786 100<a href="javascript:OpenDxf('4503786', 'CDP M12 SRK 4X45' , 'IscarDxf' , '4503786-CDP M12 SRK 4X45');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4503786&itemDesc=CDP M12 SRK 4X45"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4503786&itemDesc=CDP M12 SRK 4X45"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
To be used for carbide tools only.
For Adaptation Click on "More Info".
When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
3D Representation
Assembly Video

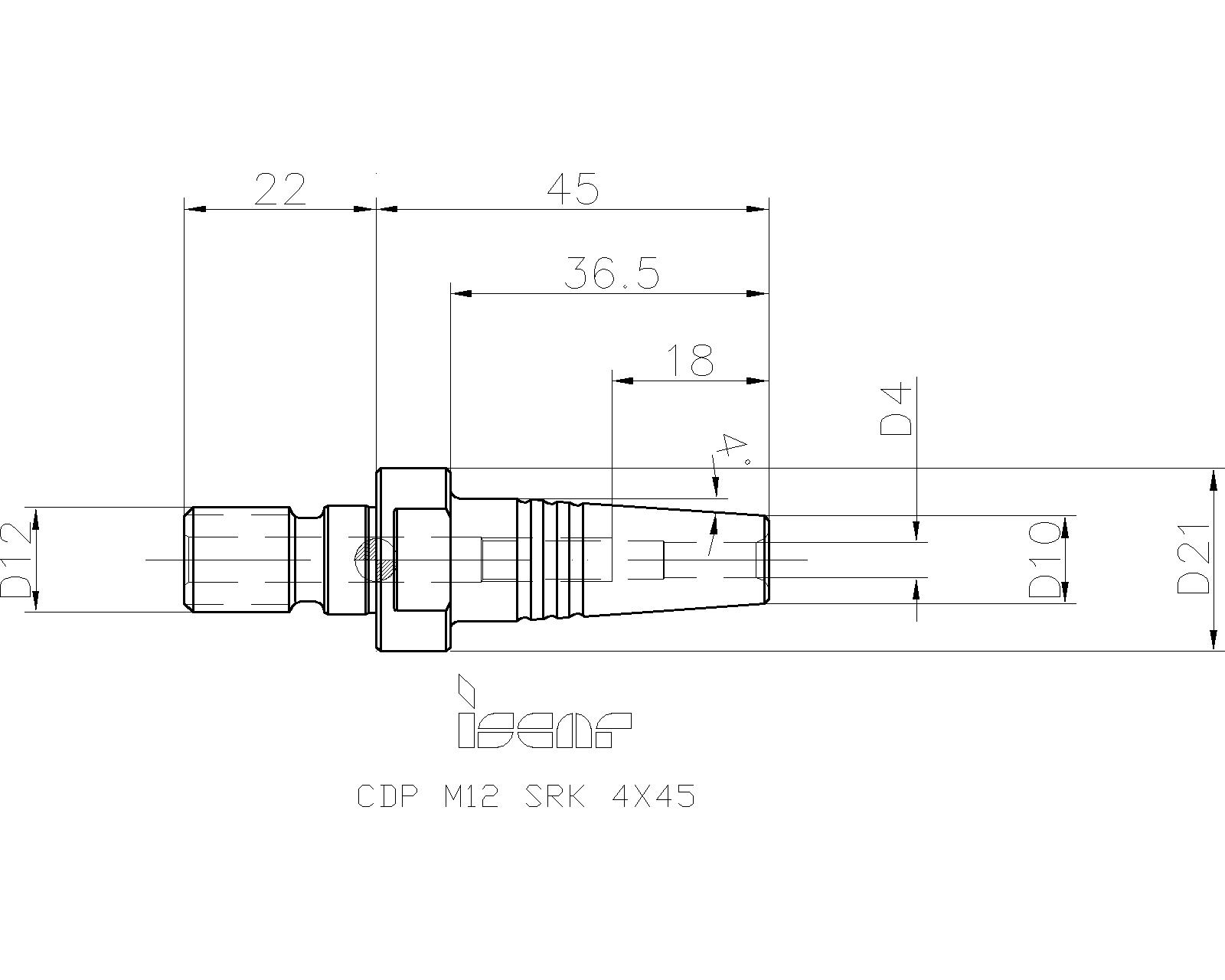

2D Representation
