Family Designation: DIN69871-SRK SHRINKIN thermal shrinking chucks with DIN 69871 form AD taper shanks.


 TAPER  RUNOUT (INT) 0.003MM(.00012  HARDNESS 50-52  SURFACE FINISH N5  SHRINKIN  G2.5/25000 RPM  COOLANT THROUGH TOOL
Item Designation: DIN69871 40 SRK 8X50
SS DCONWS DCONMS BTED BD LPR LBX LB ADJRGA LSCWS THID Key  CRKS OAL CDI  CSP  CCMS GICATGIREMgiic
408.0040.00~14.0020.0069.1050.042.506.0031.0M105.00M16137.50~00.841~SKG11C0400$$$$~4503839 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4503839 300<a href="javascript:OpenDxf('4503839', 'DIN69871 40 SRK 8X50' , 'IscarDxf' , '4503839-DIN69871 40 SRK 8X50');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4503839&itemDesc=DIN69871 40 SRK 8X50"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=4503839&itemDesc=DIN69871 40 SRK 8X50"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
To be used for carbide tools only.
For shrink units information, Click on "More Info".
Preset screw without coolant hole.
For through tool coolant, preset screw must be removed
3D Representation
Assembly Video

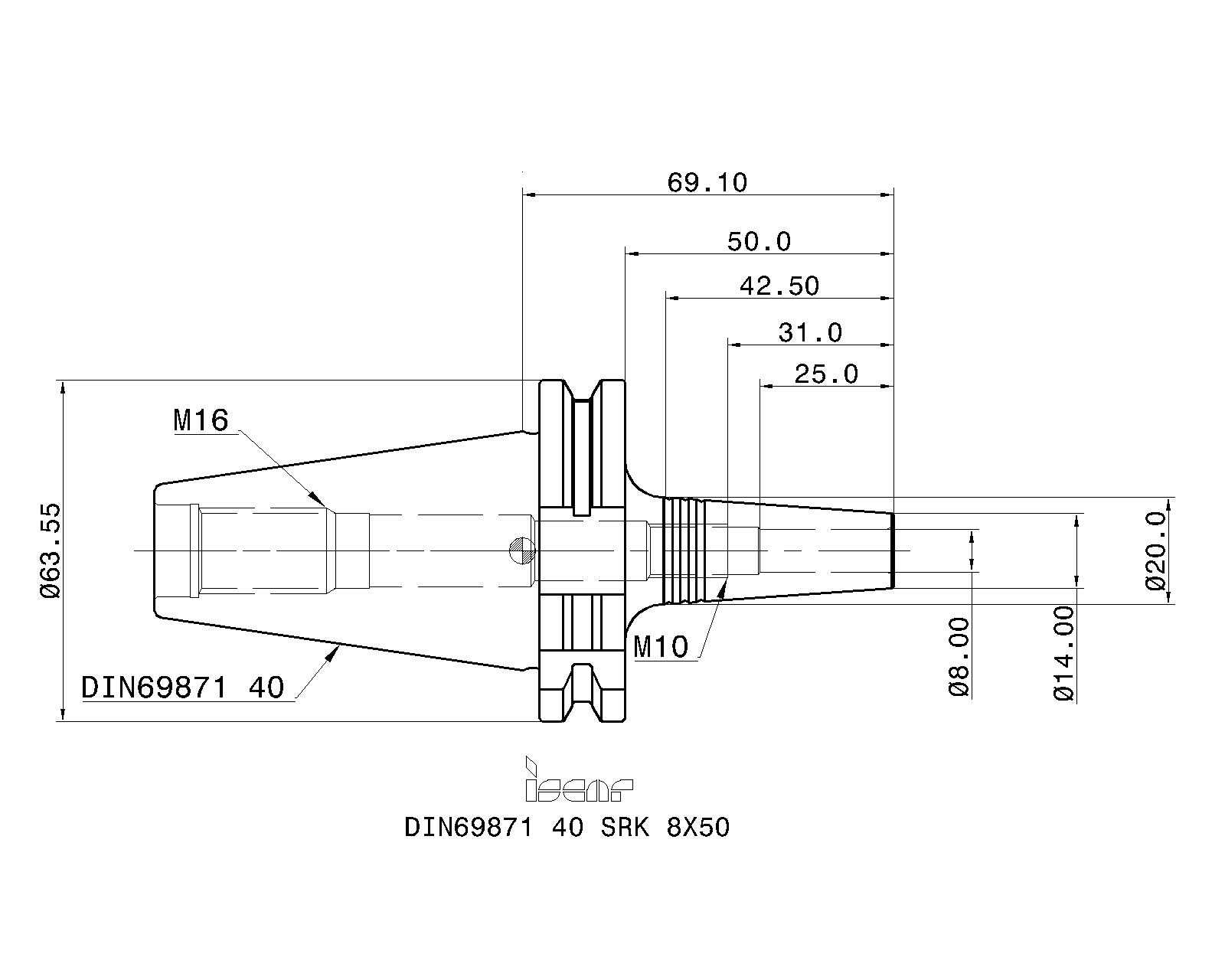

2D Representation
  Spare Parts
7000666SR M10X10 DIN913Socket set with flat
