Family Designation: HSK A-SRKIN Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide HSS and steel tools.


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 50-52  SURFACE FINISH N5  SHRINKIN  G2.5/HSK50,63=25K/HSK100=20K  COOLANT THROUGH TOOL
Item Designation: HSK A63 SRKIN8X160
DCONMS DCONWS BTED BD LPR LBX LB ADJRGA LSCWS THID Key  CDI  OAL CSP  CCMS GICATGIREMgiic
63.008.0021.0027.00160.00134.038.0011.0036.0M63.0011.16192.00~1~HSK01C0630$$$$~4504018 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4504018 10272<a href="javascript:OpenDxf('4504018', 'HSK A63 SRKIN8X160' , 'IscarDxf' , '4504018-HSK A63 SRKIN8X160');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4504018&itemDesc=HSK A63 SRKIN8X160"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4504018&itemDesc=HSK A63 SRKIN8X160"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
A cooling tube must be used with all coolant through HSK spindles (to be ordered separately)
Use only inductive heating device for SRKIN holders
For solid carbide, HSS and steel tools.
For shank dimensions and shrink units information, Click on "More Info"
ISCAR cannot guarantee an unbalance value less than 1 gr x mm
3D Representation
Assembly Video

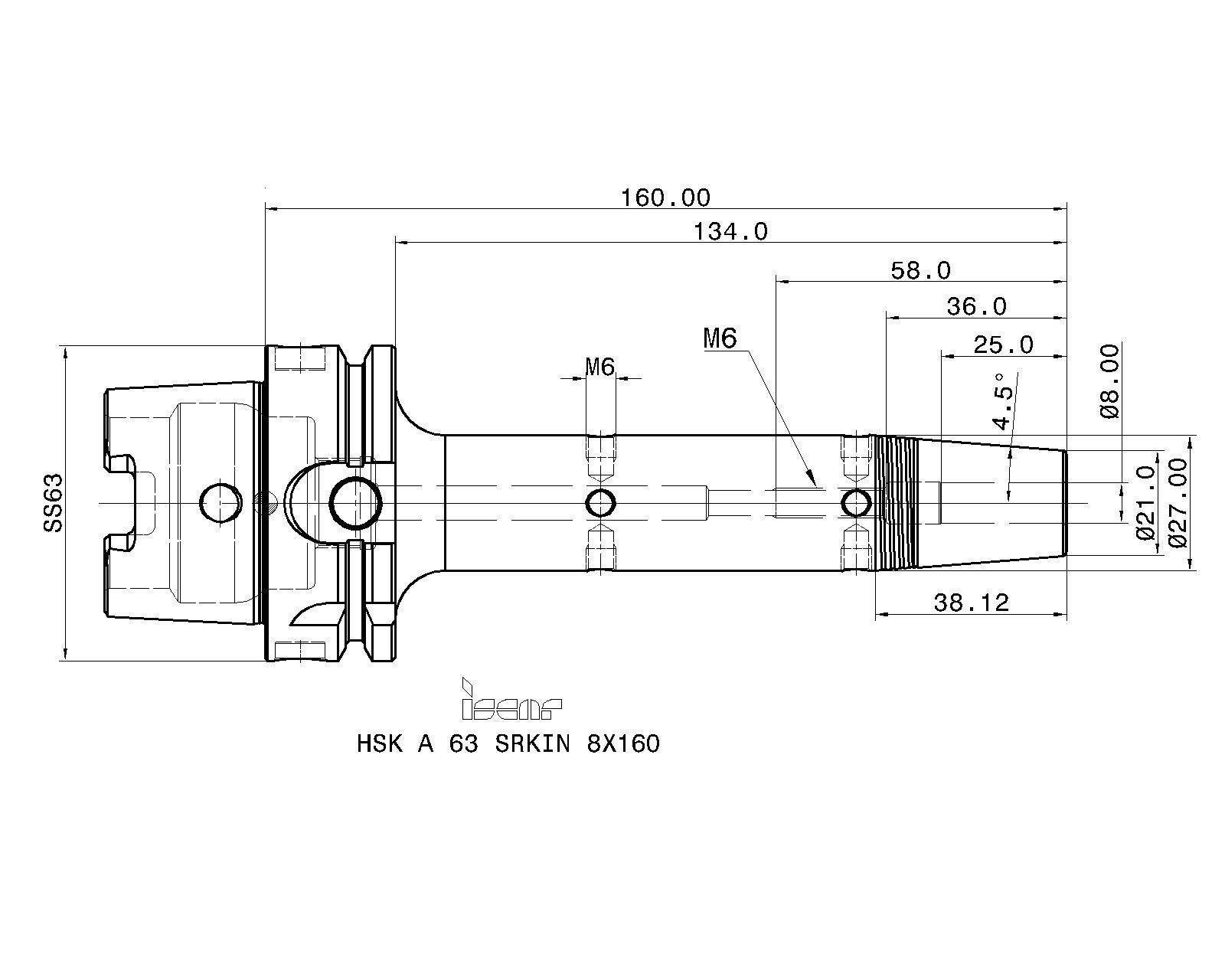

2D Representation
  Spare Parts
4503916PRESET M6X20BSRKIN preset screw
Details
4561256COOLING TUBE HSK A63
(Optional, should be ordered separately)		Cooling tube
4561258WRENCH COOL TUBE HSK63
(Optional, should be ordered separately)		Cooling tube wrench
