Family Designation: HSK A-SRKIN

Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide HSS and steel tools.

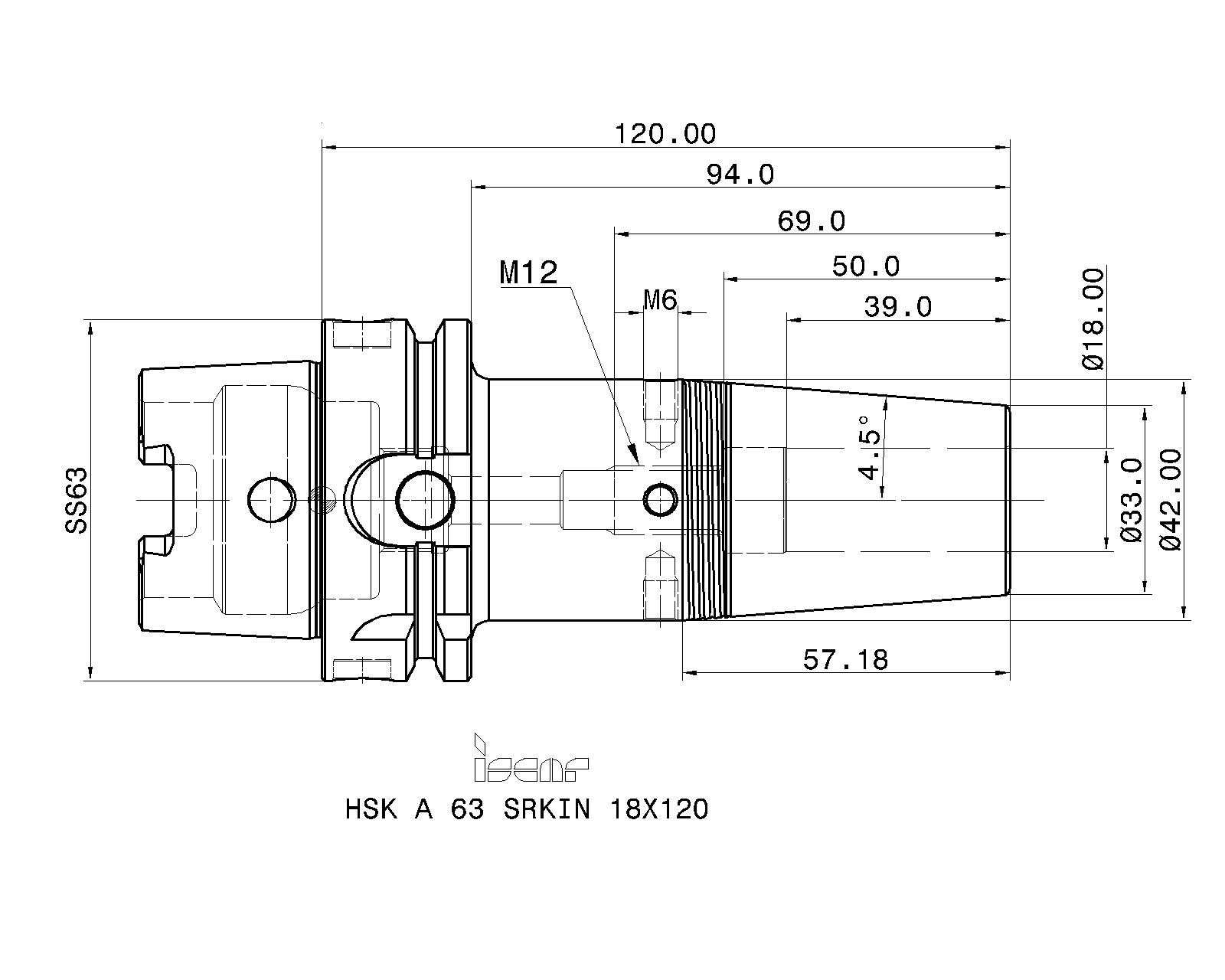

Item Designation: HSK A63 SRKIN18X120

DCONMS	DCONWS	BTED	BD	LPR	LBX	LB	ADJRGA	LSCWS	THID	Key	CDI		SS	L min	OAL	Shank	d	CCMS OLD	CCWS	Mod	BMC	TCDCONWS		CSP	HTA	WTA	CZCWS	CCWS	CUBPWS	CCFWS	CCTWS	ISCTMP	BD_2	BSC	CCFMS	CCMS	CCTMS	ClssID	CMCS	CNSC	CUBPMS	CXSC	CZCMS	DCONNWS	GTC	ISCTMP_2	ISYC	LTA	MCO	S. Std.	TCDCONMS	UST	GICAT	GIREM	giic
63.00	18.00	33.00	42.00	120.00	94.0	57.00	11.00	50.0	M12	6.00	1	1.39	63~	39.0~	152.00~	C~	18.00~	HSK01C0630$$$$~	ZYL01G1800$$$$~	006~	S~	h6~	Y~	1~	~	~	1800~	ZYL01G1800h$06~	G~	01~	ZYL~	HSK To Cylindrical~	-~	3~	01~	HSK01C0630$$$$~	HSK~	71EAD3871D313~	4~	1~	C~	1~	0630~	-~	ADPRS_MHSK_WZYL01~	-~	401-02~	120.00~	1~	HSK A~	$$$$~	M~	4504027		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
4504027		3	0	104				<a href="javascript:OpenDxf('4504027', 'HSK A63 SRKIN18X120' , 'IscarDxf' , '4504027-HSK A63 SRKIN18X120');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4504027&itemDesc=HSK A63 SRKIN18X120"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4504027&itemDesc=HSK A63 SRKIN18X120"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
A cooling tube must be used with all coolant through HSK spindles (to be ordered separately)
Use only inductive heating device for SRKIN holders
For solid carbide, HSS and steel tools.
For shank dimensions and shrink units information, Click on "More Info"
ISCAR cannot guarantee an unbalance value less than 1 gr x mm

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required


4503919	PRESET M12X18B	SRKIN preset screw	Details
4561256	COOLING TUBE HSK A63 (Optional, should be ordered separately)	Cooling tube
4561258	WRENCH COOL TUBE HSK63 (Optional, should be ordered separately)	Cooling tube wrench
