Family Designation: DIN69871-SRKIN

Thermal shrink chucks with integral DIN 69871 form AD taper shank for solid carbide HSS and steel tools with h6 tolerance.

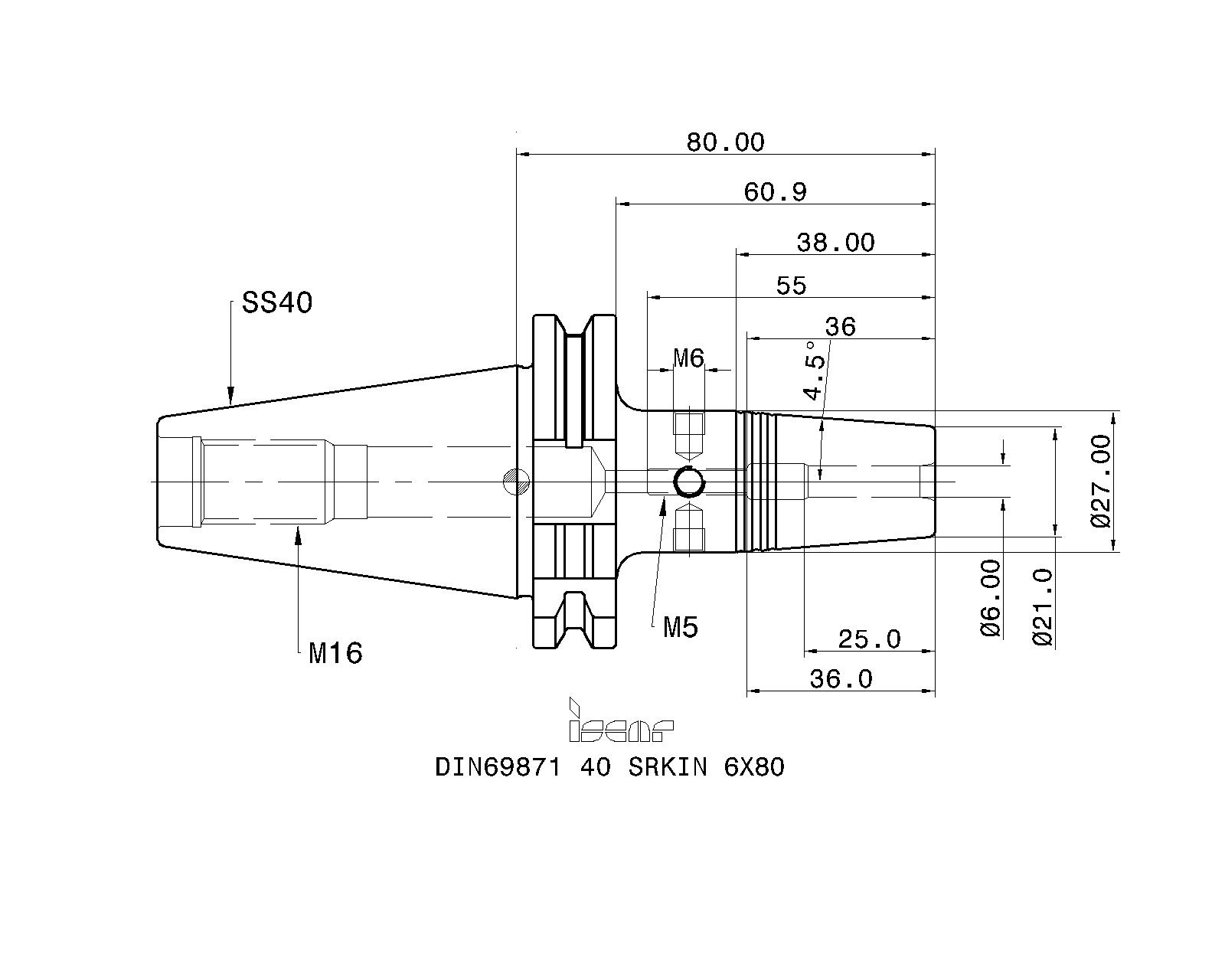

Item Designation: DIN69871 40 SRKIN 6X80

SS	DCONWS	DCONMS	BTED	BD	LPR	LBX	LB	L min	ADJRGA	LSCWS	THID	Key	CRKS		CSP	OAL	CDI		Shank	CCTMS	S. Std.	Mod	BMC	UST	DF	CMCS	BSC	ISCTMP	BD_2	CCFMS	CCFWS	CCMS	CCTWS	CCWS	ClssID	CNSC	CUBPMS	CUBPWS	CXSC	CZCMS	CZCWS	DCONNWS	GTC	HTA	ISCTMP_2	ISYC	LS	LTA	MCO	TCDCONMS	TCDCONWS	WTA	GICAT	GIREM	giic
40	6.00	40.00~	21.00	27.00	80.00	60.9	38.00	25.0~	11.00	36.0	M5	2.50	M16	Y~	1~	148.40~	0	0.99	C~	SKG~	DIN69871~	006~	S~	M~	63.55~	4~	3~	DIN69871-Cylindrical~	-~	11~	01~	SKG11C0400$$$$~	ZYL~	ZYL01F6000h$06~	71EAD3871D313~	1~	C~	F~	1~	0400~	6000~	~	ADPRS_MSKG11_WZYL01~	~	~	401-02~	68.4~	80.00~	1~	$$$$~	h6~	0.00~	4504151	Balanced to G2.5/25.000 RPM	0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
4504151		1	0	224				<a href="javascript:OpenDxf('4504151', 'DIN69871 40 SRKIN 6X80' , 'IscarDxf' , '4504151-DIN69871 40 SRKIN 6X80');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4504151&itemDesc=DIN69871 40 SRKIN 6X80"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4504151&itemDesc=DIN69871 40 SRKIN 6X80"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>
Balanced to G2.5/25.000 RPM

Items Per Package : 1
Use only inductive heating device for SRKIN holders
ISCAR cannot guarantee an unbalance value less than 1 gr x mm
For shrink units information, Click on "More Info"

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	4503915	PRESET M5X18B	SRKIN preset screw	Details
