Family Designation: HSK A-SRKIN Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide HSS and steel tools.


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 50-52  SURFACE FINISH N5  SHRINKIN  G2.5/HSK50,63=25K/HSK100=20K  COOLANT THROUGH TOOL

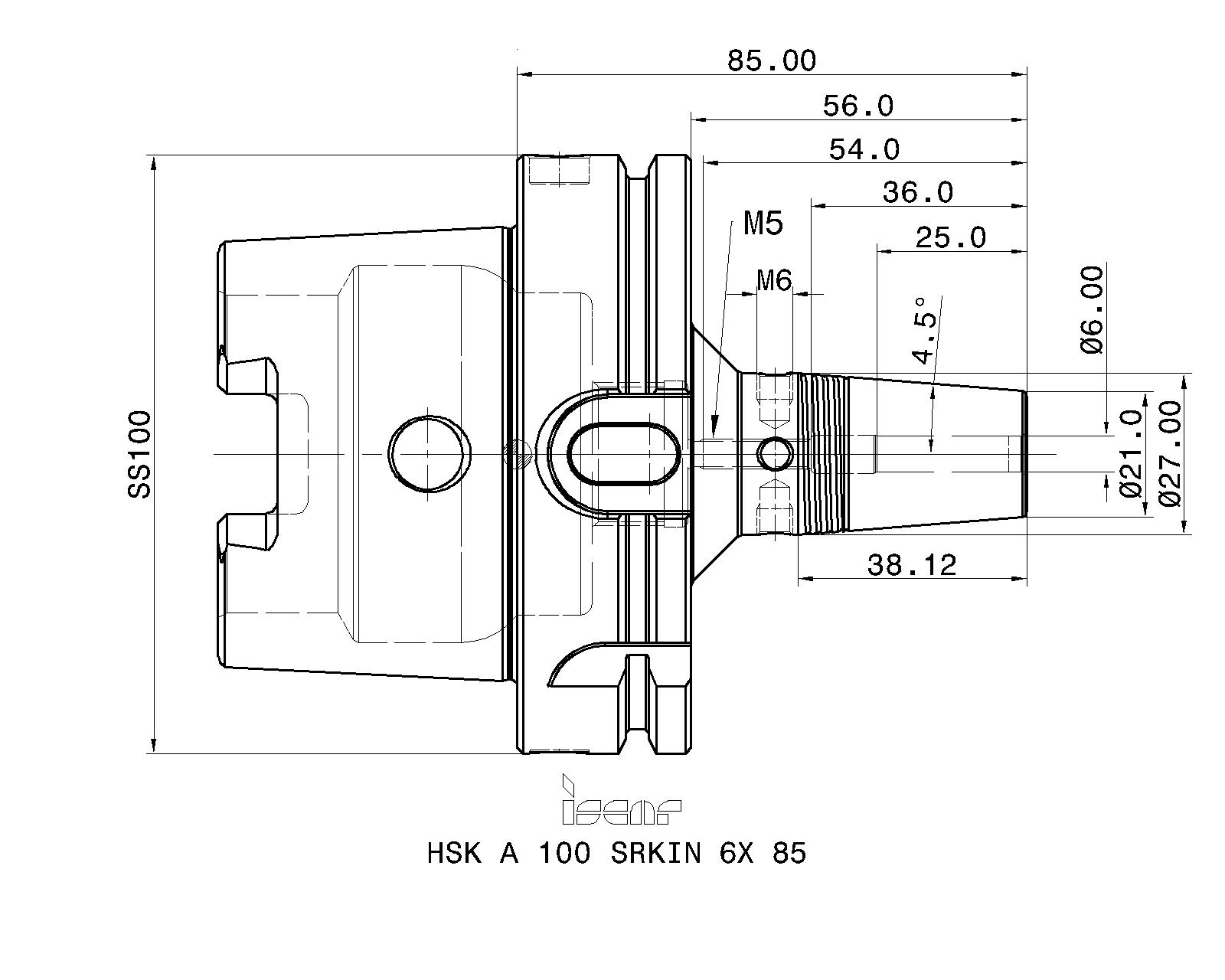

Item Designation: HSK A100 SRKIN6X85
DCONMS DCONWS BTED BD LPR LBX LB ADJRGA LSCWS THID Key  DCP  OAL CSP  CCMS GICATGIREMgiic
100.006.0021.0027.0085.0056.038.0011.0036.0M52.5012.18135.00~1~HSK01C1000$$$$~4504207 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
4504207 30216<a href="javascript:OpenDxf('4504207', 'HSK A100 SRKIN6X85' , 'IscarDxf' , '4504207-HSK A100 SRKIN6X85');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4504207&itemDesc=HSK A100 SRKIN6X85"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=4504207&itemDesc=HSK A100 SRKIN6X85"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
A cooling tube must be used with all coolant through HSK spindles (to be ordered separately)
Use only inductive heating device for SRKIN holders
For solid carbide, HSS and steel tools.
For shank dimensions and shrink units information, Click on "More Info"
ISCAR cannot guarantee an unbalance value less than 1 gr x mm
3D Representation
Assembly Video
2D Representation
  Spare Parts
4503915PRESET M5X18BSRKIN preset screw
Details
4511691COOLING TUBE HSK A100
(Optional, should be ordered separately)
Cooling tube
Details
4561259WRENCH COOL TUBE HSK100
(Optional, should be ordered separately)
Cooling tube wrench
