Family Designation: HSK A-SRKIN Thermal shrink chucks with HSK DIN69893 Form A tapered shanks, for solid carbide HSS and steel tools.


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 50-52  SURFACE FINISH N5  SHRINKIN  G2.5/HSK50,63=25K/HSK100=20K  COOLANT THROUGH TOOL
Item Designation: HSK A100 SRKIN25X115
DCONMS DCONWS BTED BD LPR LBX LB ADJRGA LSCWS THID Key  DCP  OAL CSP  CCMS GICATGIREMgiic
100.0025.0044.0053.00115.0086.057.0011.0058.0M168.0013.04165.00~1~HSK01C1000$$$$~4504223 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4504223 10352<a href="javascript:OpenDxf('4504223', 'HSK A100 SRKIN25X115' , 'IscarDxf' , '4504223-HSK A100 SRKIN25X115');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4504223&itemDesc=HSK A100 SRKIN25X115"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=4504223&itemDesc=HSK A100 SRKIN25X115"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
A cooling tube must be used with all coolant through HSK spindles (to be ordered separately)
Use only inductive heating device for SRKIN holders
For solid carbide, HSS and steel tools.
For shank dimensions and shrink units information, Click on "More Info"
ISCAR cannot guarantee an unbalance value less than 1 gr x mm
3D Representation
Assembly Video

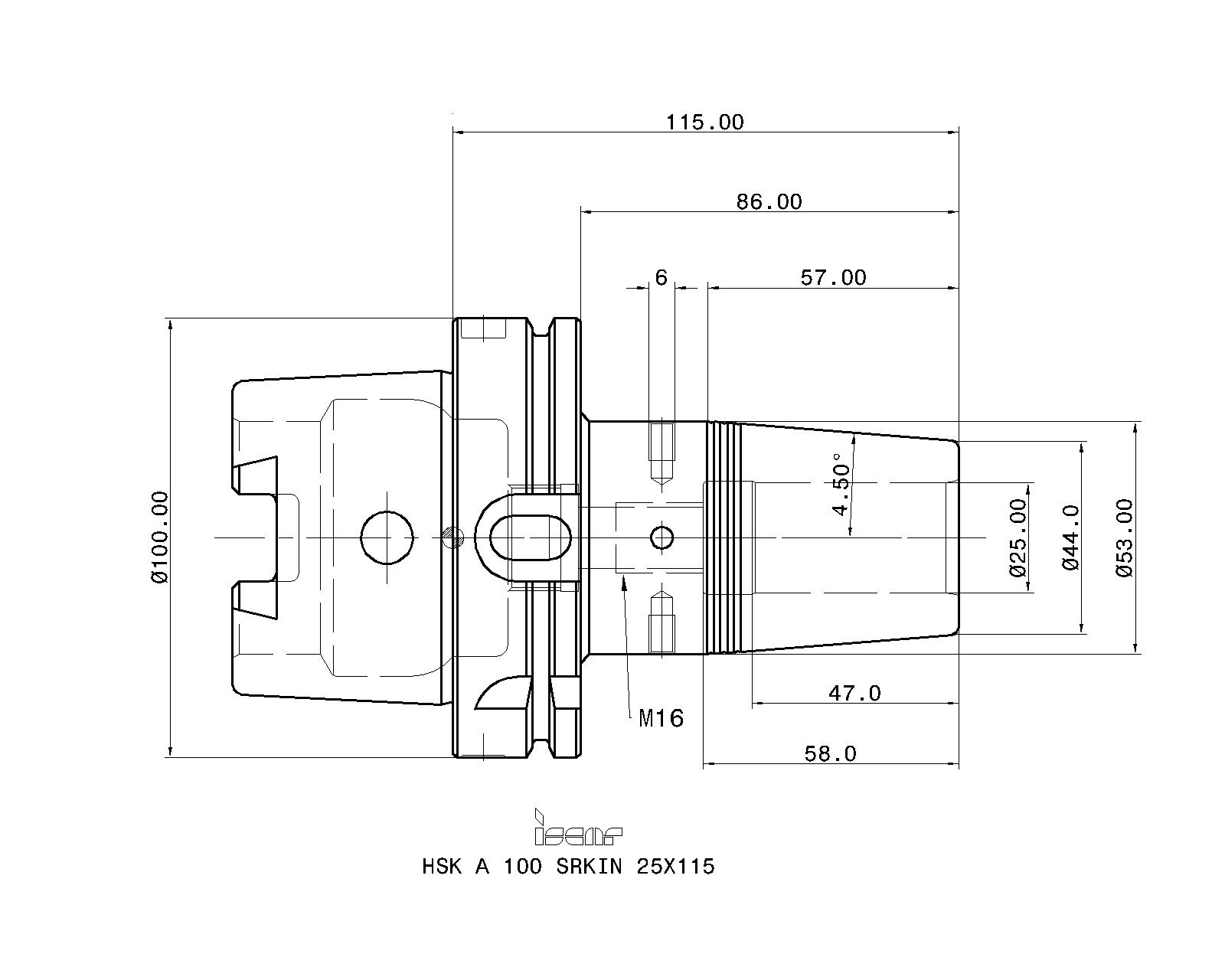

2D Representation
  Spare Parts
4503920PRESET M16X20BSRKIN preset screw
Details
4511691COOLING TUBE HSK A100
(Optional, should be ordered separately)		Cooling tube
4561259WRENCH COOL TUBE HSK100
(Optional, should be ordered separately)		Cooling tube wrench
