Family Designation: DIN69871-SRK SHRINKIN thermal shrinking chucks with DIN 69871 form AD taper shanks.


 TAPER  RUNOUT (INT) 0.003MM(.00012  HARDNESS 50-52  SURFACE FINISH N5  SHRINKIN  G2.5/25000 RPM  COOLANT THROUGH TOOL

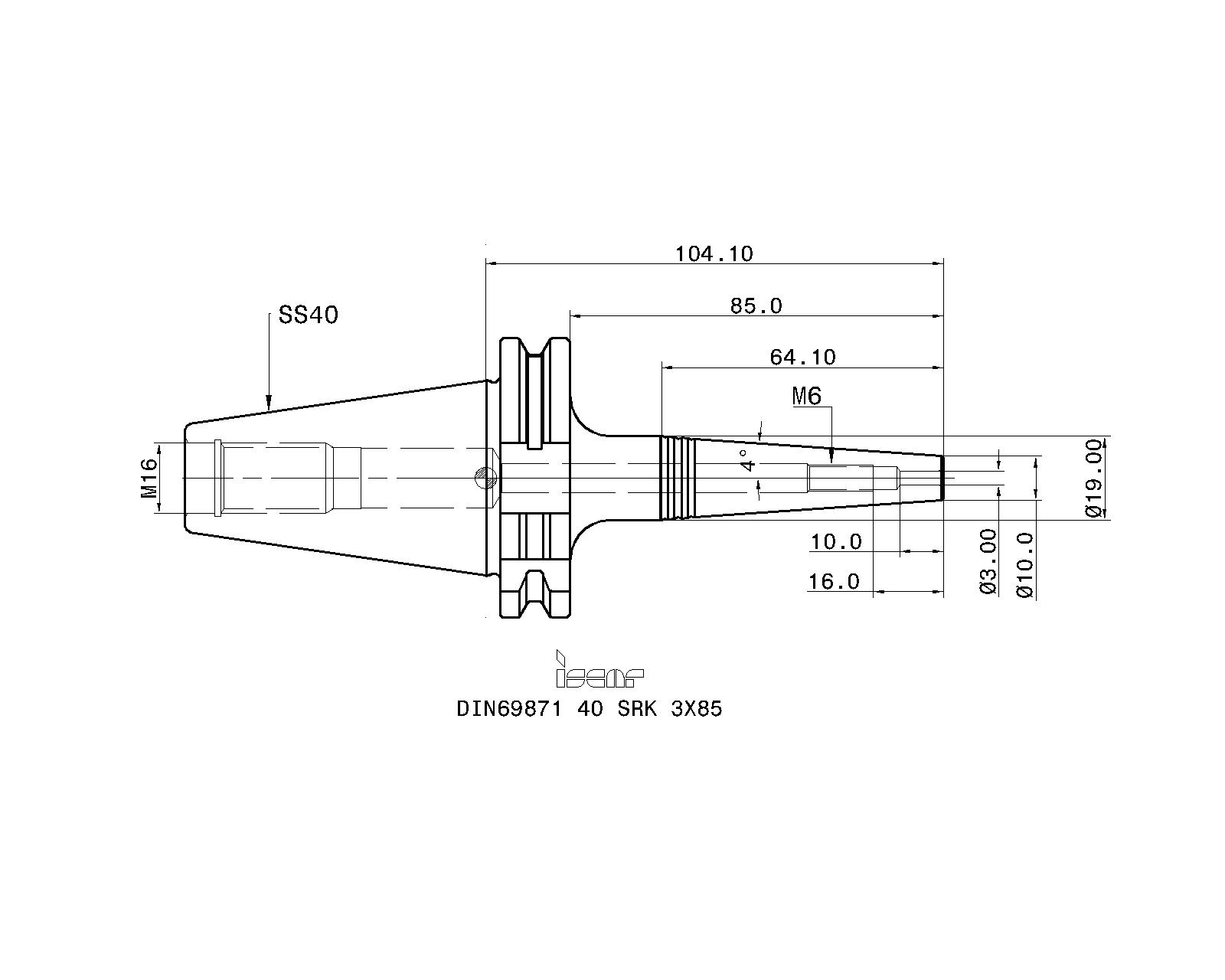

Item Designation: DIN69871 40 SRK 3X85
SS DCONWS DCONMS BTED BD LPR LBX LB ADJRGA LSCWS THID Key  CRKS OAL DCP  CSP  CCMS GICATGIREMgiic
403.0040.00~10.0019.00104.1085.064.106.0016.0M63.00M16172.50~00.891~SKG11C0400$$$$~4504378 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
4504378 10328<a href="javascript:OpenDxf('4504378', 'DIN69871 40 SRK 3X85' , 'IscarDxf' , '4504378-DIN69871 40 SRK 3X85');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4504378&itemDesc=DIN69871 40 SRK 3X85"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=4504378&itemDesc=DIN69871 40 SRK 3X85"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
To be used for carbide tools only.
For shrink units information, Click on "More Info".
Preset screw without coolant hole.
For through tool coolant, preset screw must be removed
3D Representation
Assembly Video
2D Representation
  Spare Parts
7000538SR M6X10 DIN916Socket set with flat
Details
