Family Designation: HSK E-SRK

SHRINKIN, thermal chuck collets with HSK DIN69893 Form E tapered shanks for solid carbide tools only.

Item Designation: HSK E50 SRK6X80

DCONMS	DCONWS	SS	BTED	BD	LPR	LBX	LB	L min	ADJRGA	LSCWS	THID	Key	CDI	OAL		Shank	Mod	S1	S2	MINI	BMC	TCDCONWS		CSP	HTA	CZCWS	CCWS	CUBPWS	CCFWS	CCTWS	ISCTMP	BD_2	BSC	CCFMS	CCMS	CCTMS	ClssID	CMCS	CNSC	CUBPMS	CXSC	CZCMS	DCONNWS	GTC	ISYC	LTA	MCO	S. Std.	TCDCONMS	UST	WTA	GICAT	GIREM	giic
50.00	6.00	50~	11.00	20.00	106.00	80.0	64.00	18.0~	10.00	28.0	M5	2.50	0	131.00~	0.51	C~	006~	1~	S~	-~	S~	h6~	Y~	1~	~	6000~	ZYL01F6000h$06~	F~	01~	ZYL~	HSK To Cylindrical~	-~	3~	03~	HSK03C0500$$$$~	HSK~	71EAD3871D313~	4~	1~	C~	1~	0500~	-~	ADPRS_MHSK_WZYL01~	401-02~	106.00~	1~	HSK A~	$$$$~	M~	~	4504497		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
4504497		1	0	64				<a href="javascript:OpenDxf('4504497', 'HSK E50 SRK6X80' , 'IscarDxf' , '4504497-HSK E50 SRK6X80');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4504497&itemDesc=HSK E50 SRK6X80"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4504497&itemDesc=HSK E50 SRK6X80"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
A cooling tube must be used with all coolant through HSK spindles (to be ordered separately).
To be used for carbide tools only.
For shank dimensions, Click on "More Info".

3D Representation	Light Detailed	3D Required

Assembly Video

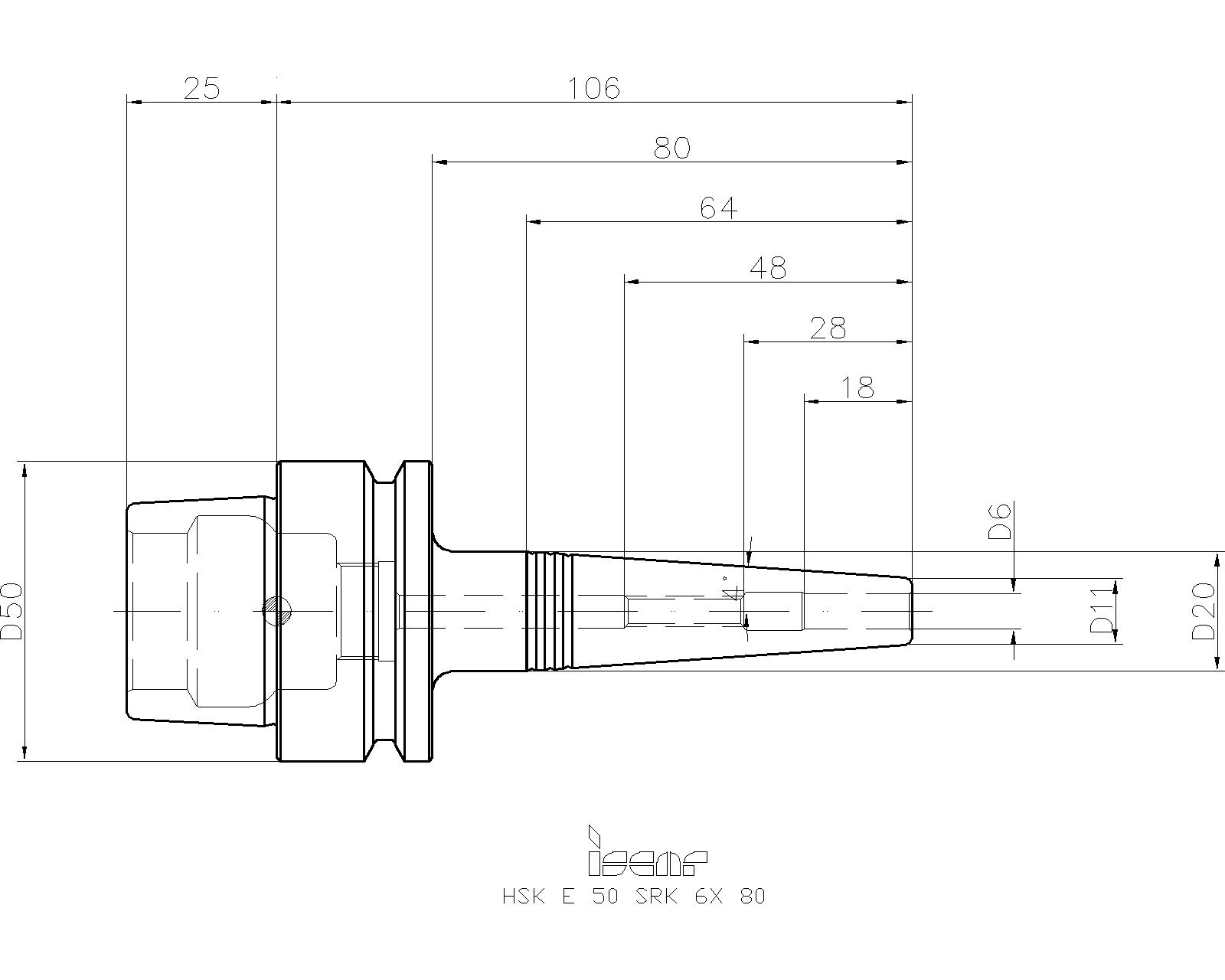

2D Representation	ISO	2D Required


7000641	SR M5X20 DIN913	Socket set with flat	Details
4511689	COOLING TUBE HSK A50 (Optional, should be ordered separately)	Cooling tube
4503624	WRENCH COOL TUBE HSK50 (Optional, should be ordered separately)	Cooling tube wrench
