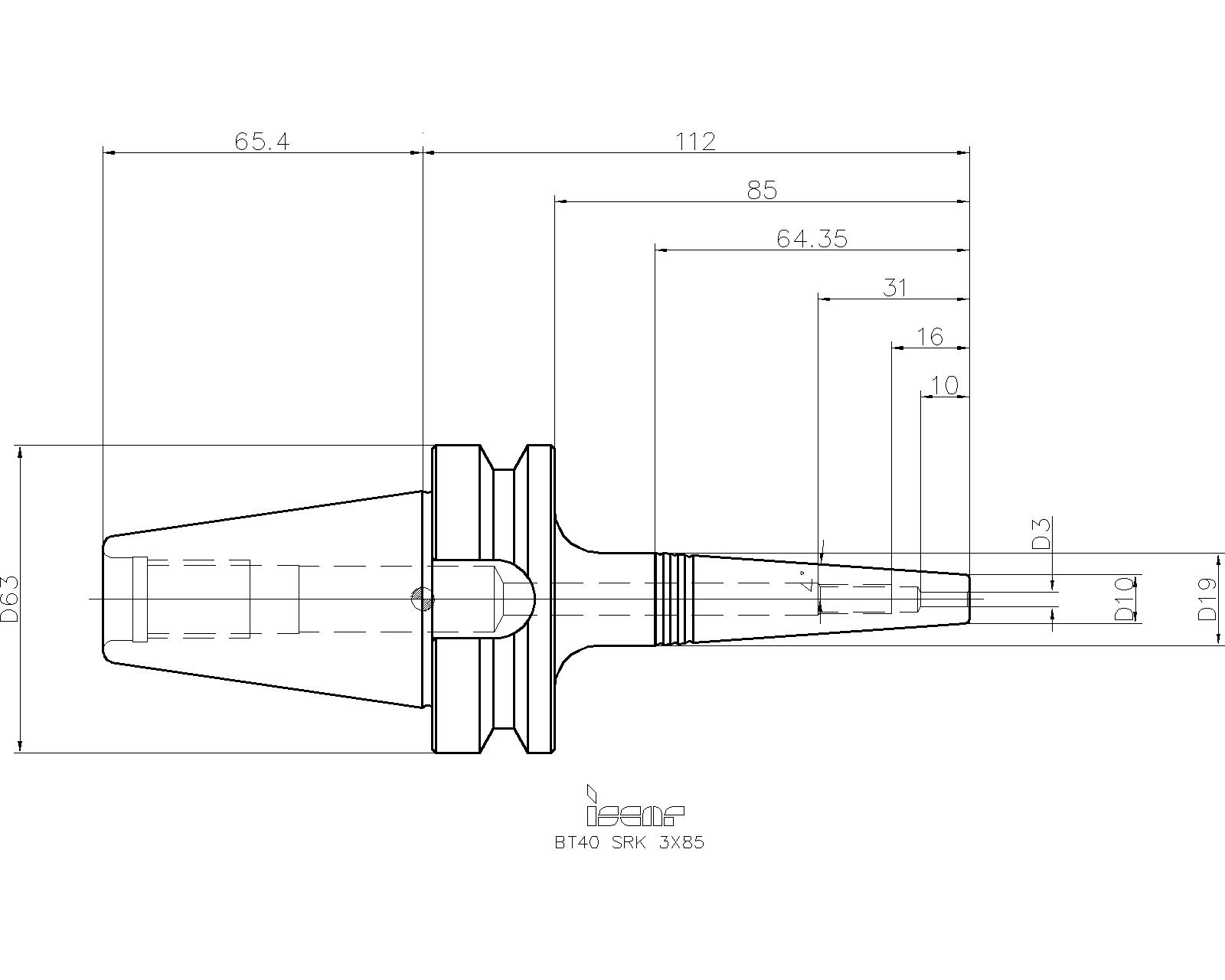

Family Designation: BT-SRK

Thermal shrink chucks with BT MAS 403 form AD taper shanks, for carbide tools.

Item Designation: BT40 SRK 3X85

SS	DCONWS	DCONMS	BTED	BD	LPR	LBX	LB	L min	ADJRGA	LSCWS	THID	Key	CRKS	OAL	CDI		Shank	S. Std.	Mod	S1	CCTMS	CCFMS	CUBPMS	CZCMS	TCDCONMS	ISYC	S2	CCTWS	CCFWS	CUBPWS	CZCWS	TCDCONWS	BMC	UST	DF	CSP	LS	ISCTMP	BD_2	BSC	CCMS	CCWS	ClssID	CMCS	CNSC	CXSC	GTC	HTA	LTA	MCO	WTA	GICAT	GIREM	giic
40	3.00	40.00~	10.00	19.00	112.00	85.0	64.15	10.0~	6.00	16.0	M6	3.00	M16	177.40~	0	1.00	C~	BT~	006~	1~	SKG~	51~	C~	0400~	$$$$~	401-02~	S~	ZYL~	01~	F~	3000~	h6~	S~	M~	63.00~	1~	65.4~	BT To Cylindrical~	-~	3~	SKG51C0400$$$$~	ZYL01F3000h$06~	71EAD3871D313~	4~	1~	1~	ADPRS_MSKG51_WZYL01~	~	112.00~	1~	0.00~	4504576		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21
4504576		1	0	0				<a href="javascript:OpenDxf('4504576', 'BT40 SRK 3X85' , 'IscarDxf' , '4504576-BT40 SRK 3X85');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4504576&itemDesc=BT40 SRK 3X85"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4504576&itemDesc=BT40 SRK 3X85"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="ga('send', 'event', 'p21', 'Download');"></a>

Items Per Package : 1
For shrink units information, Click on "More Info".
Preset screw without coolant hole
For through tool coolant, preset screw must be removed

3D Representation	Light Detailed	3D Required

Assembly Video

2D Representation	ISO	2D Required

Spare Parts
	7000538	SR M6X10 DIN916	Socket set with flat	Details
