ISCAR Cutting Tools - Metal Working Tools - BT-SRK : 4504586 - BT40 SRK 10X85
Geometry Checker ×

Family Designation: BT-SRK Thermal shrink chucks with BT MAS 403 form AD taper shanks, for carbide tools.


 RUNOUT (INT) 0.003MM(.00012  TAPER  HARDNESS 50-52  SURFACE FINISH N5  SHRINKIN  COOLANT THROUGH TOOL  G2.5/25000 RPM

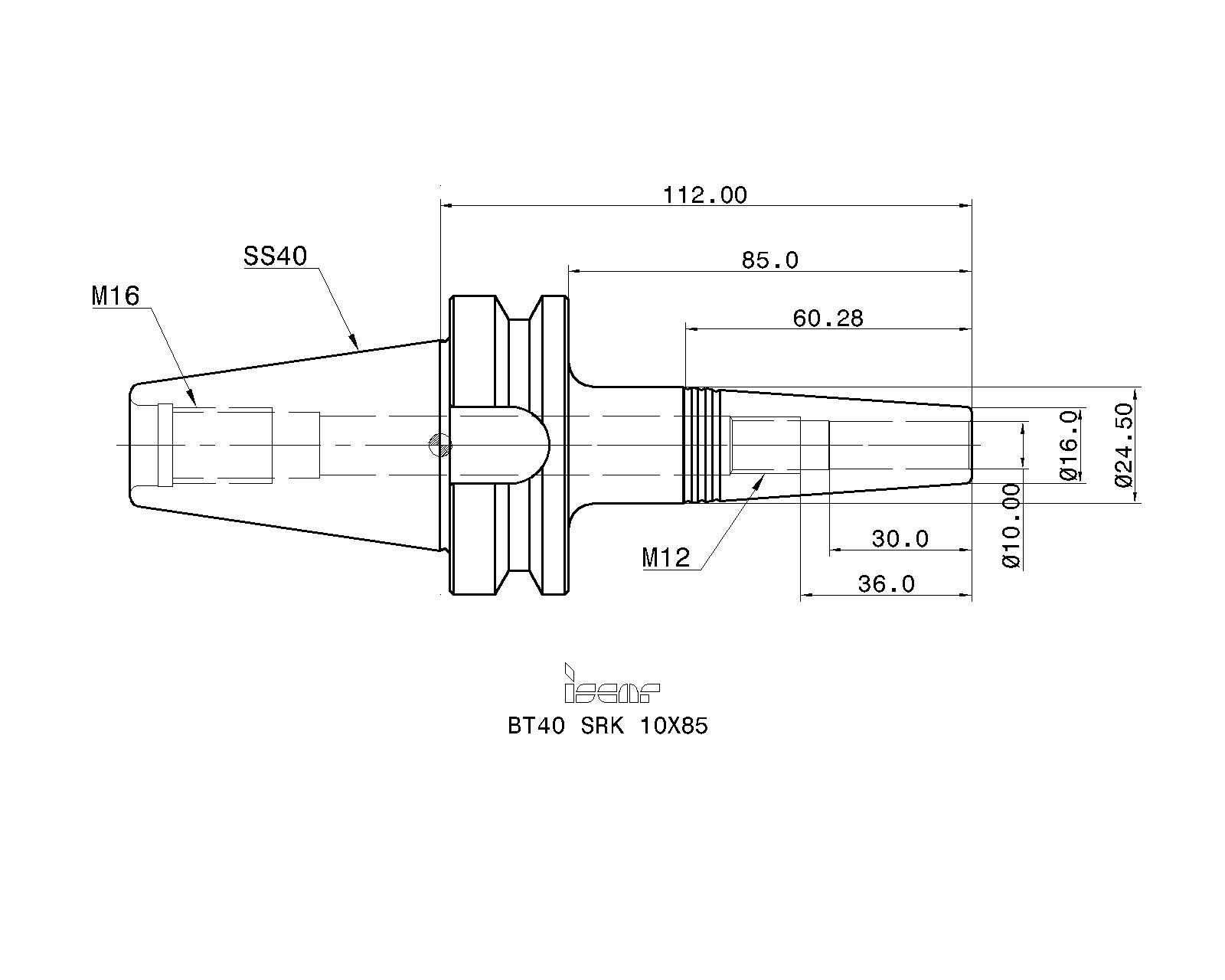

Item Designation: BT40 SRK 10X85
SS DCONWS DCONMS BTED BD LPR LBX LB ADJRGA LSCWS THID Key  CRKS OAL CDI  CSP  CCMS GICATGIREMgiic
4010.0040.00~16.0024.50112.0085.060.286.0036.0M126.00M16177.40~01.121~SKG51C0400$$$$~4504586 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4504586 3088<a href="javascript:OpenDxf('4504586', 'BT40 SRK 10X85' , 'IscarDxf' , '4504586-BT40 SRK 10X85');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4504586&itemDesc=BT40 SRK 10X85"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4504586&itemDesc=BT40 SRK 10X85"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
For shrink units information, Click on "More Info".
Preset screw without coolant hole
For through tool coolant, preset screw must be removed
3D Representation
Assembly Video
2D Representation
  Spare Parts
7000677SR M12X10 DIN913Socket set with flat
