Family Designation: MT-ER DIN 6499 ER collet chucks with DIN 228-2 Morse taper shanks.


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 58-60  TAPER  SURFACE FINISH N5  COOLANT THROUGH TOOL

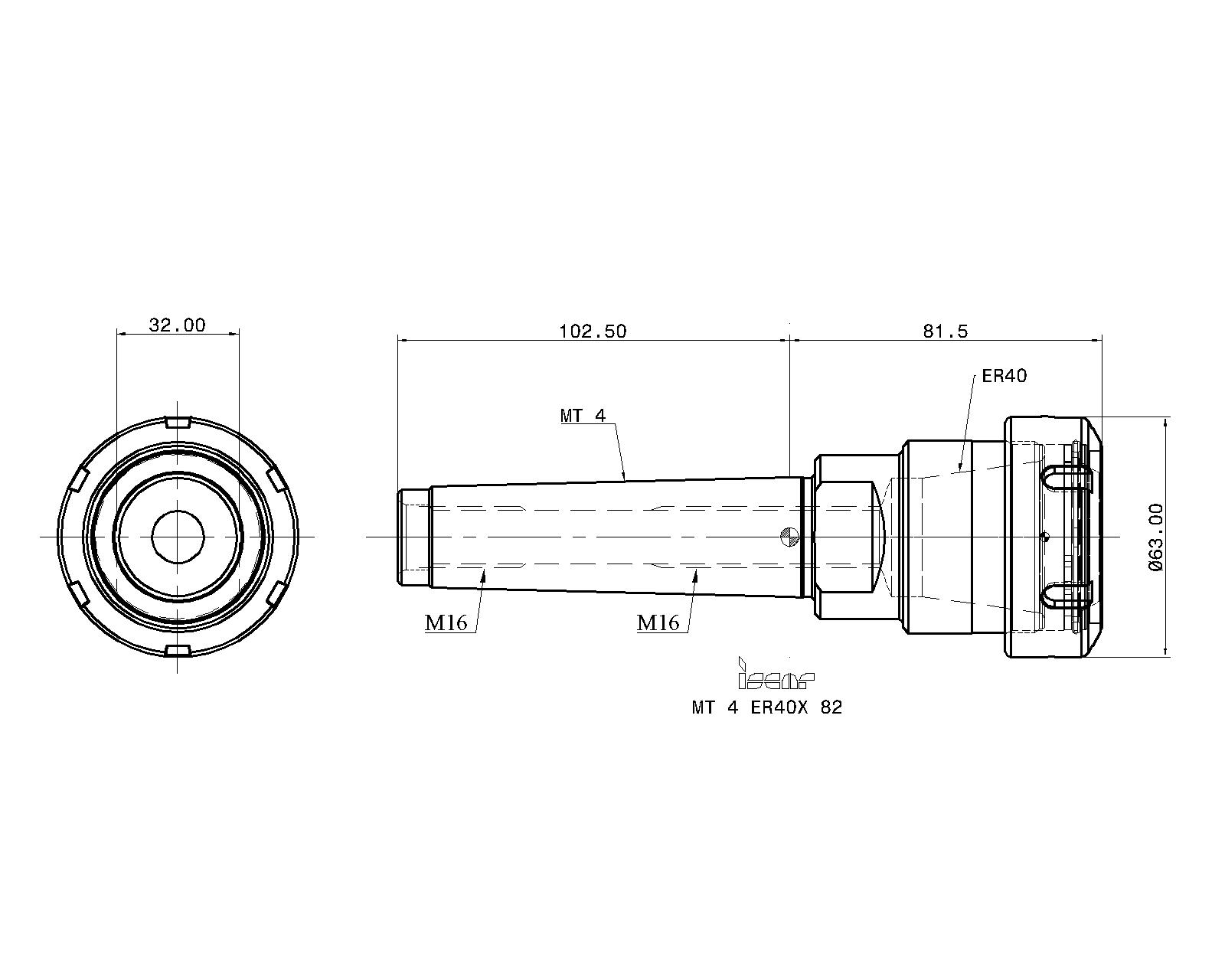

Item Designation: MT 4 ER40X 82
SS CSI DCONNWS  DCONXWS  LPR LS BD THID CRKS DRVS  OAL CSP  GICATGIREMgiic
4ER403.026.081.50102.5063.00M16M1632.0184.00~0.82~4505005 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4505005 1016<a href="javascript:OpenDxf('4505005', 'MT 4 ER40X 82' , 'IscarDxf' , '4505005-MT 4 ER40X 82');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4505005&itemDesc=MT 4 ER40X 82"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4505005&itemDesc=MT 4 ER40X 82"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
3D Representation
Assembly Video
2D Representation
  Spare Parts
4513028NUT ER40 TOPER clamping TOP nut
4513015WRENCH ER40
(Optional, should be ordered separately)		Wrench for ER chuck nut
4513095PRESET ER-JET 16X2
(Optional, should be ordered separately)		Preset screw
4513096PRESET ER-JET 16X2L
(Optional, should be ordered separately)		Preset screw
