Family Designation: MT-ER DIN 6499 ER collet chucks with DIN 228-2 Morse taper shanks.


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 58-60  TAPER  SURFACE FINISH N5  COOLANT THROUGH TOOL
Item Designation: MT 3 ER40X 79
SS CSI DCONNWS  DCONXWS  LPR LS BD THID CRKS DRVS  OAL CSP  GICATGIREMgiic
3ER403.026.079.0081.0063.00M12M1224.0160.00~0.64~4505008 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4505008 30136<a href="javascript:OpenDxf('4505008', 'MT 3 ER40X 79' , 'IscarDxf' , '4505008-MT 3 ER40X 79');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4505008&itemDesc=MT 3 ER40X 79"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4505008&itemDesc=MT 3 ER40X 79"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
3D Representation
Assembly Video

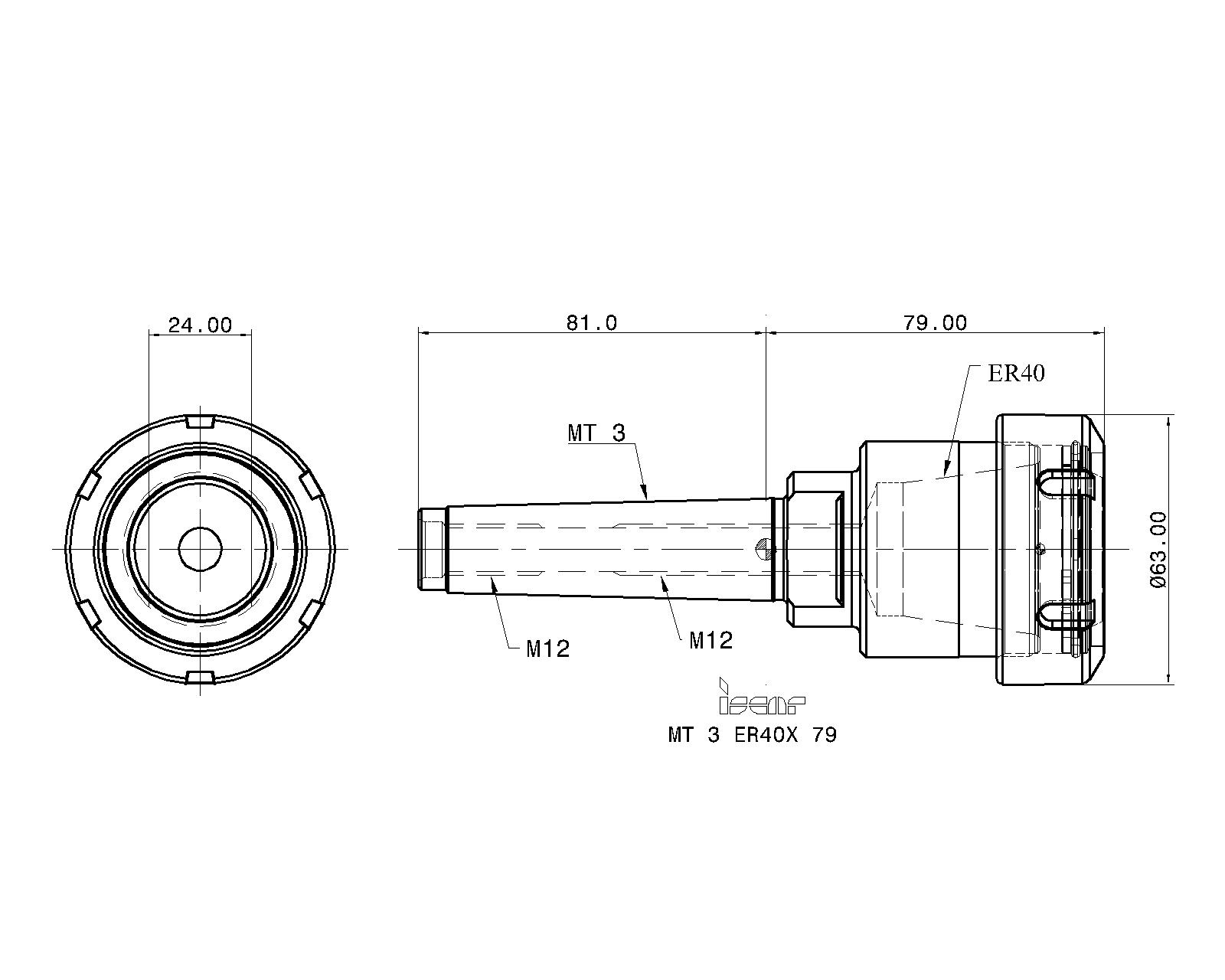

2D Representation
  Spare Parts
4513028NUT ER40 TOPER clamping TOP nut
4513015WRENCH ER40
(Optional, should be ordered separately)		Wrench for ER chuck nut
4502384PRESET ER-JET 12X1.75
(Optional, should be ordered separately)		Preset screw
4513094PRESET ER-JET 12X1.75L
(Optional, should be ordered separately)		Preset screw
