Family Designation: MT-ER DIN 6499 ER collet chucks with DIN 228-2 Morse taper shanks.


 RUNOUT (INT) 0.003MM(.00012  HARDNESS 58-60  TAPER  SURFACE FINISH N5  COOLANT THROUGH TOOL

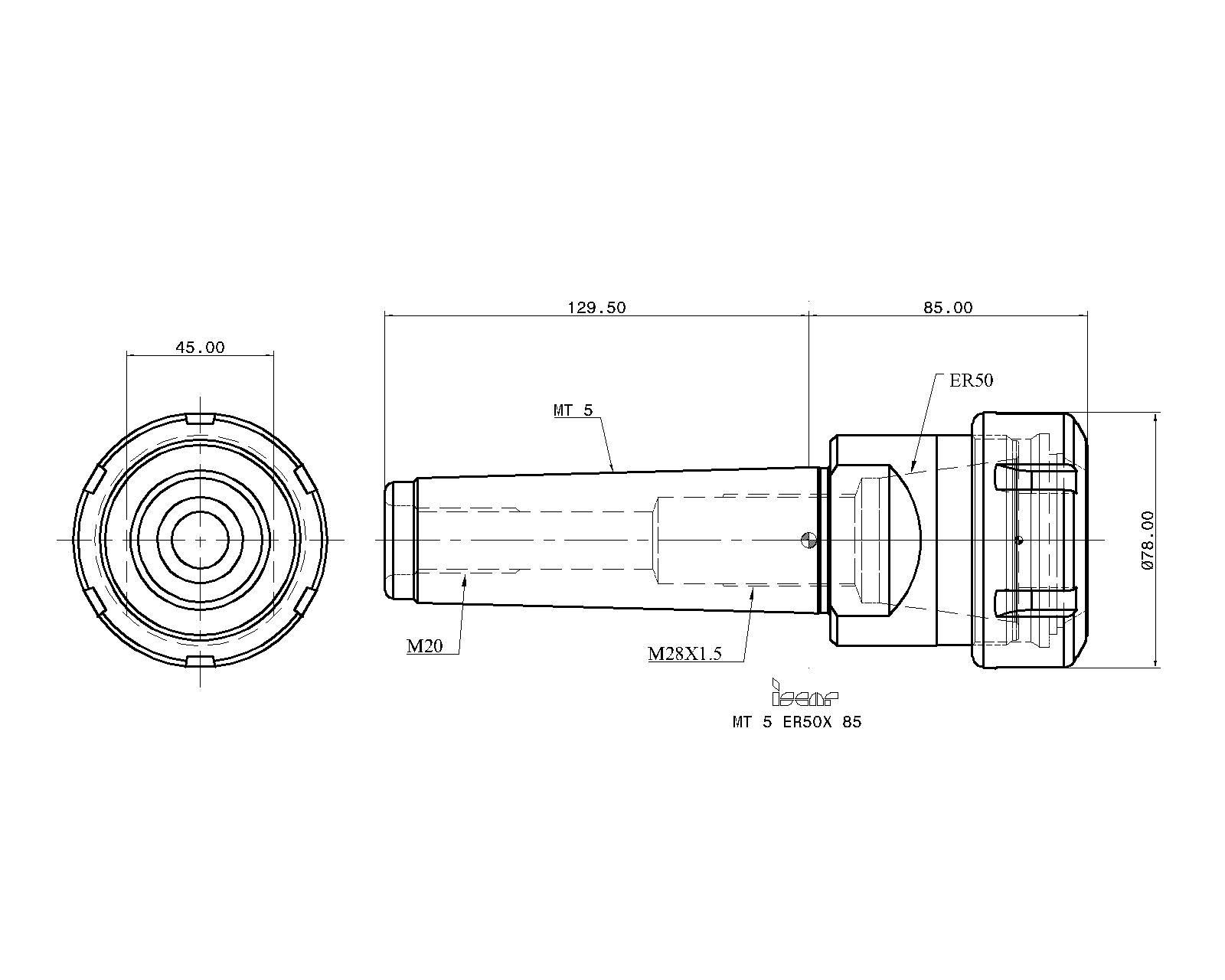

Item Designation: MT 5 ER50X 85
SS CSI DCONNWS  DCONXWS  LPR LS BD THID CRKS DRVS  OAL CSP  GICATGIREMgiic
5ER5010.034.085.00129.5078.00M28X1.5M2045.0214.50~0.70~4505010 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4505010 308<a href="javascript:OpenDxf('4505010', 'MT 5 ER50X 85' , 'IscarDxf' , '4505010-MT 5 ER50X 85');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4505010&itemDesc=MT 5 ER50X 85"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4505010&itemDesc=MT 5 ER50X 85"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('send', 'event', 'p21', 'Download');"></a>
Items Per Package : 1
3D Representation
Assembly Video
2D Representation
  Spare Parts
4513008NUT ER50 UMMini ER clamping nut
Details
4513016WRENCH ER50
(Optional, should be ordered separately)		Wrench for ER chuck nut
4502580PRESET ER-JET 28X1.5
(Optional, should be ordered separately)		Preset screw
