Family Designation: HSK A-WH-ASHN-45 Square shank tool adapters with HSK exchangeable shanks for 45° mounting on turn-mill machines (right-or-left hand tools can be used).
Right-hand shown

Right-hand shown

 100 BAR (1450 PSI) MAX.
Item Designation: HSK A63WH ASHN 25 45
DCONMS H WSC LPR LSCWS L5 OAL HAND CSP  DCP  GICATGIREMgiic
63.0025.025.0110.0072.0030.00142.00~N~1~14505046 Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4505046 100<a href="javascript:OpenDxf('4505046', 'HSK A63WH ASHN 25 45' , 'IscarDxf' , '4505046-HSK A63WH ASHN 25 45');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4505046&itemDesc=HSK A63WH ASHN 25 45"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=4505046&itemDesc=HSK A63WH ASHN 25 45"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB
Items Per Package : 1
A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
For using left-hand toolholder, the position of the clamping spacer must be changed
Complies with ICTM standard (ISO 12164-3)
For shank dimensions, click on "More Info"

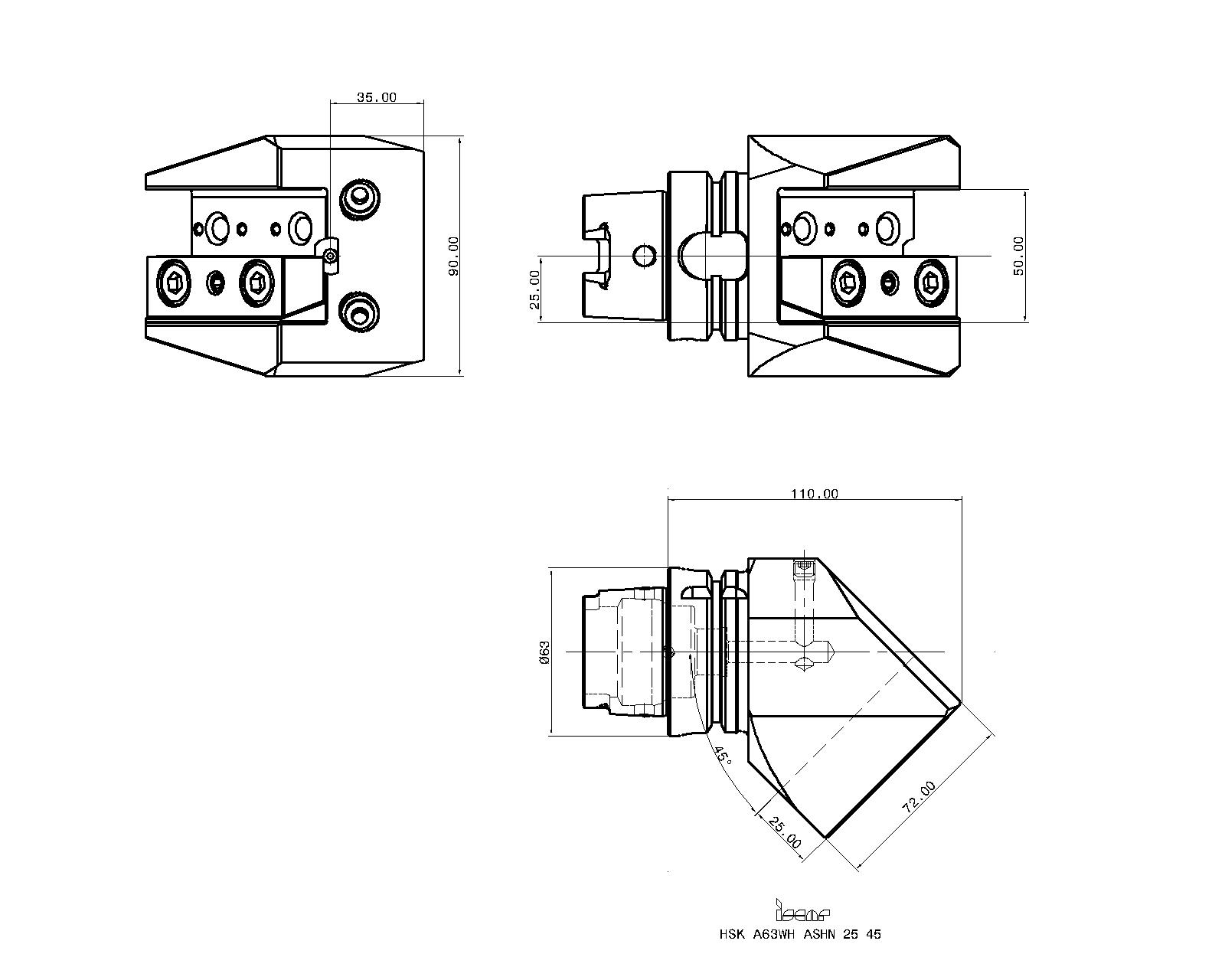

3D Representation
Assembly Video
2D Representation
  Spare Parts
7000430SR M10X25 DIN912Socket head cap screw
Details
7000662SR M8X20 DIN916Socket set with flat
Details
7003855SATZ-M12X1-M6Cooling nozzle
Details
7005914WRENCH NOZZLE HP M12
(Optional, should be ordered separately)		Wrench-open
Details
