Family Designation: HSK A63WH-ASHR/L-3 Triple square shank tool adapters with HSK exchangeable shanks for mounting on turn-mill machines.

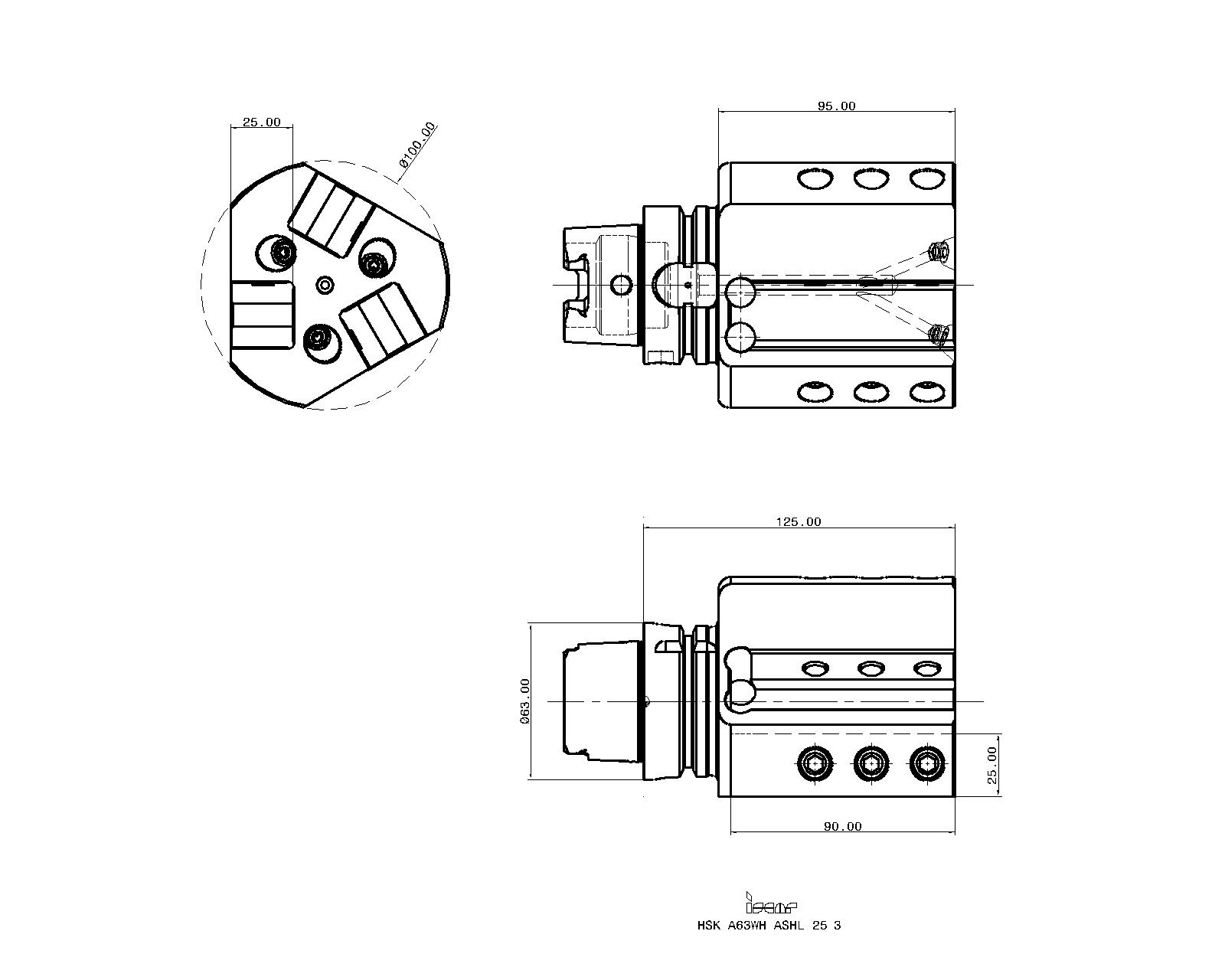

Left-hand shown

Left-hand shown

 100 BAR (1450 PSI) MAX.
Item Designation: HSK A63WH ASHL 25 3
DCONMS H WSC WF LPR LSCWS L5 OAL HAND CSP  DCP  GICATGIREMgiic
63.0025.025.013.00125.0090.0030.00157.00~L1~14505081 Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
4505081 10184<a href="javascript:OpenDxf('4505081', 'HSK A63WH ASHL 25 3' , 'IscarDxf' , '4505081-HSK A63WH ASHL 25 3');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4505081&itemDesc=HSK A63WH ASHL 25 3"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=4505081&itemDesc=HSK A63WH ASHL 25 3"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Not suitable for ATC (automatic tool changer) on some multi-tasking machine models, please consult your MTB
Items Per Package : 1
Complies with ICTM standard (ISO 12164-3)
A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
For shank dimensions, click on "More Info"
3D Representation
Assembly Video
2D Representation
  Spare Parts
4505592SR M12X30 DIN915Screw
Details
7003853SATZ-M8X1-M3Cooling nozzle
Details
