Family Designation: ST-ER DIN 6499 ER collet chucks with straight shanks.


 RUNOUT (INT) 0.005MM (.0002  HARDNESS 58-60  SURFACE FINISH N5  COOLANT THROUGH TOOL
Item Designation: ST 40X 75 ER40 F
DCONMS CSI DCONNWS  DCONXWS  LS OHN  THID BD DRVS  Fig. OAL CSP  GICATGIREMgiic
40.00ER403.026.075.0055.00M22X1.563.0045.02.130.00~0.84~4508009 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4508009 1013<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=4508009&cat=4508009&itemDesc=ST 40X 75 ER40 F"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'GTC'});"></a><a href="javascript:OpenDxf('4508009', 'ST 40X 75 ER40 F' , 'IscarDxf' , '4508009-ST 40X 75 ER40 F');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4508009&itemDesc=ST 40X 75 ER40 F"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=4508009&itemDesc=ST 40X 75 ER40 F"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
F suffix indicates a flat on the shank.
3D Representation

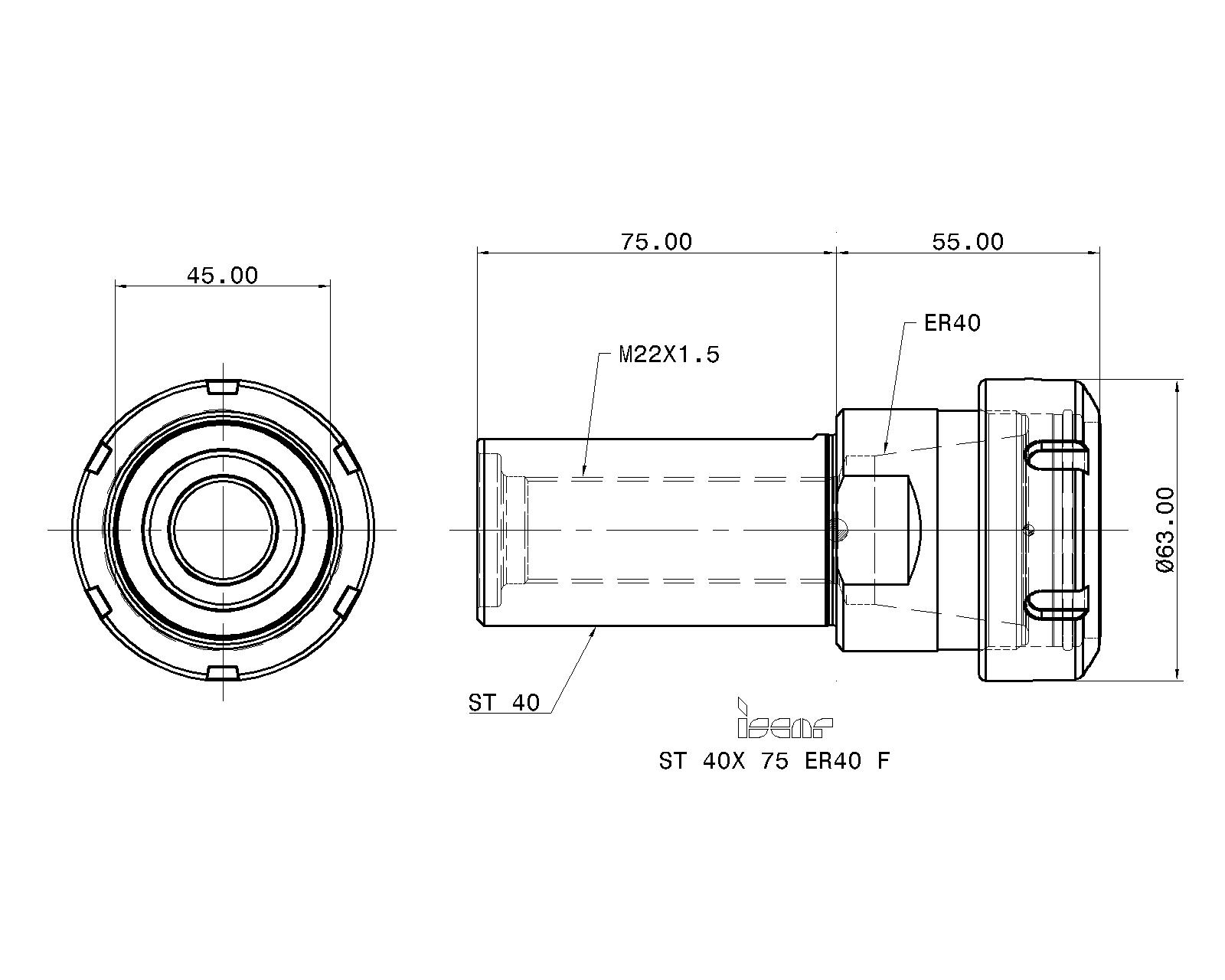

2D Representation
  Spare Parts
4513028NUT ER40 TOPER clamping TOP nut
4513015WRENCH ER40
(Optional, should be ordered separately)		Wrench for ER chuck nut
Details
4516009PRESET ER-JET 22X1.5
(Optional, should be ordered separately)		Preset screw
4513100PRESET ER-JET 22X1.5L
(Optional, should be ordered separately)		Preset screw
