Family Designation: ST-ER DIN 6499 ER collet chucks with straight shanks.
Representative Image

Representative Image

 RUNOUT (INT) 0.005MM (.0002  HARDNESS 58-60  SURFACE FINISH N5  COOLANT THROUGH TOOL
Item Designation: ST 50X 80 ER50 F
DCONMS CSI DCONNWS  DCONXWS  LS OHN  CNT THID BD DRVS  Fig. OAL CSP  GICATGIREMgiic
50.00ER5010.0034.0080.077.0-M36X1.578.0058.02.1.32157.00~~4508011 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileGTCDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4508011 1024<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=IscarDxf&stpFolder=STP&stplFolder=STPL&p21=4508011&cat=4508011&itemDesc=ST 50X 80 ER50 F"><img src="./media/icons/icon_Package.svg" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'GTC', 'ItemPage');"></a><a href="javascript:OpenDxf('4508011', 'ST 50X 80 ER50 F' , 'IscarDxf' , '4508011-ST 50X 80 ER50 F');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4508011&itemDesc=ST 50X 80 ER50 F"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=4508011&itemDesc=ST 50X 80 ER50 F"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
F suffix indicates a flat on the shank.
3D Representation

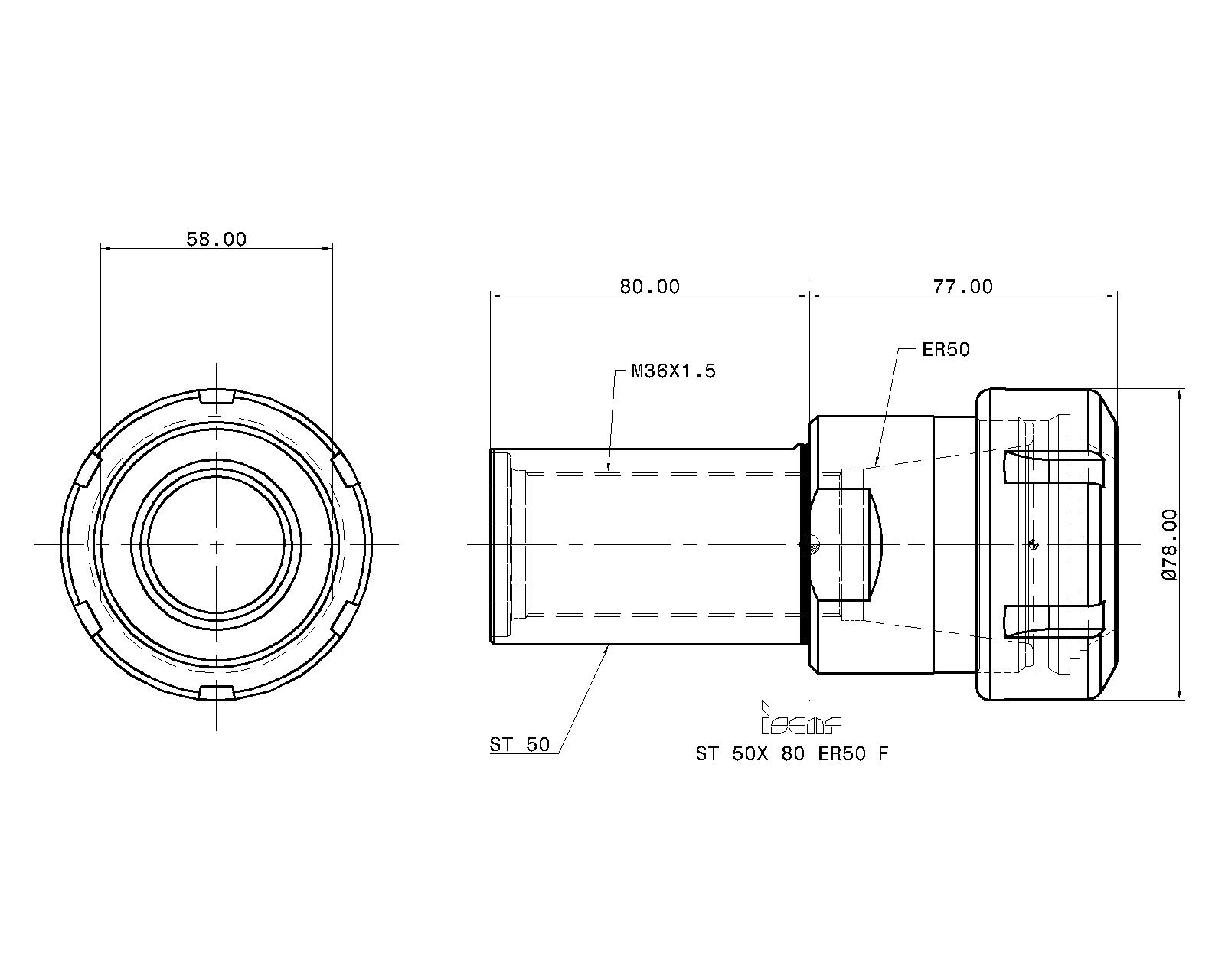

2D Representation
  Spare Parts
4513008NUT ER50 UMMini ER clamping nut
Details
4513016WRENCH ER50
(Optional, should be ordered separately)		Wrench for ER chuck nut
Details
