Family Designation: ST-ER DIN 6499 ER collet chucks with straight shanks.


 RUNOUT (INT) 0.005MM (.0002  HARDNESS 58-60  SURFACE FINISH N5  COOLANT THROUGH TOOL

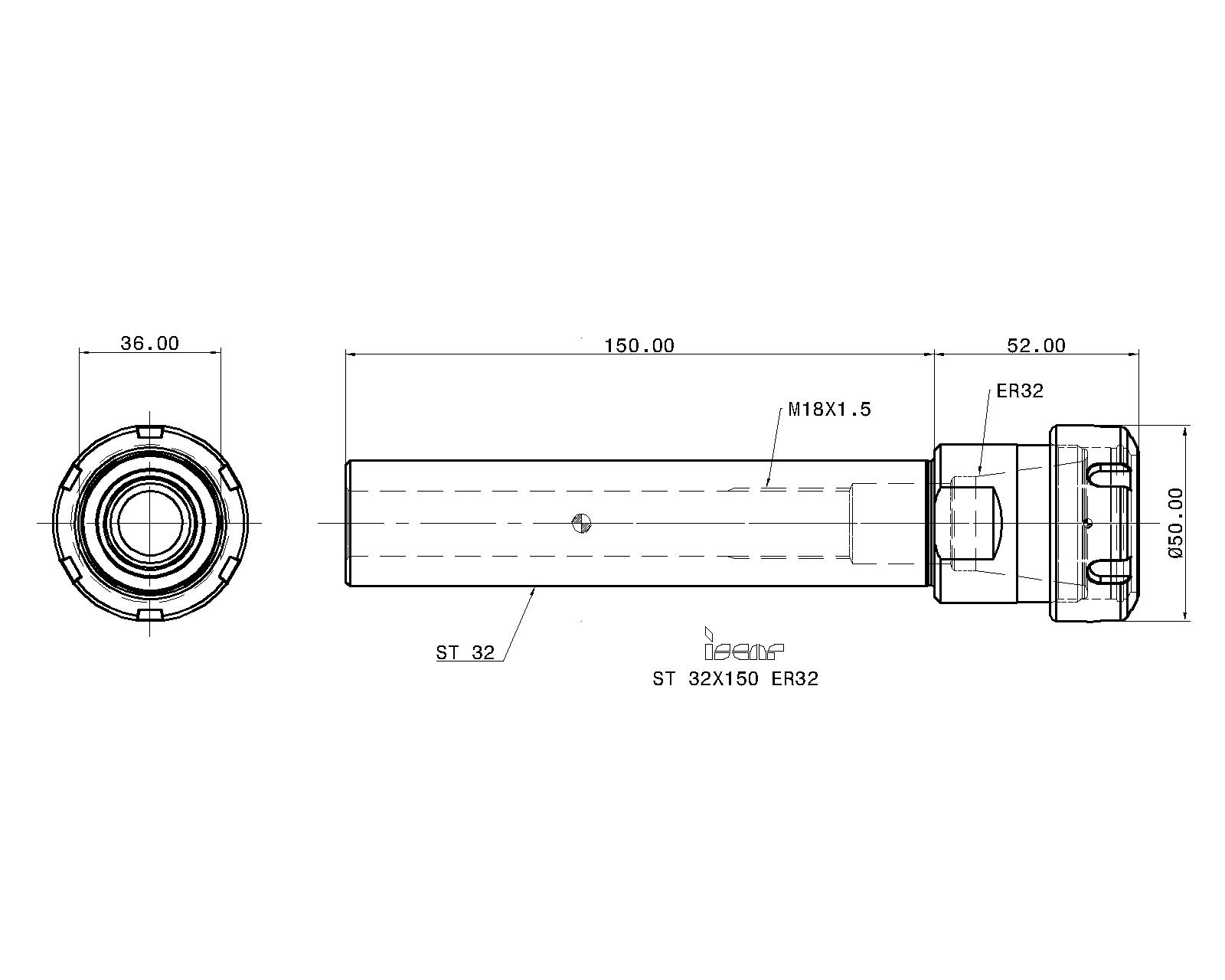

Item Designation: ST 32X150 ER32
DCONMS CSI DCONNWS  DCONXWS  LS OHN  THID BD DRVS  Fig. OAL CSP  GICATGIREMgiic
32.00ER322.020.0150.0052.00M18X1.550.0036.02.202.00~0.88~4508017 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4508017 1027<a href="javascript:OpenDxf('4508017', 'ST 32X150 ER32' , 'IscarDxf' , '4508017-ST 32X150 ER32');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4508017&itemDesc=ST 32X150 ER32"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=4508017&itemDesc=ST 32X150 ER32"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
F suffix indicates a flat on the shank.
3D Representation
Assembly Video
2D Representation
  Spare Parts
4513027NUT ER32 TOPER clamping TOP nut
4513014WRENCH ER32
(Optional, should be ordered separately)		Wrench for ER chuck nut
4513097PRESET ER-JET 18X1.5
(Optional, should be ordered separately)		Preset screw
4513098PRESET ER-JET 18X1.5L
(Optional, should be ordered separately)		Preset screw
