Family Designation: ST-ER-S DIN 6499 ER collet chucks with coolant holes and cylindrical shanks with a clamping flat.


 RUNOUT (INT) 0.005MM (.0002  HARDNESS 58-60  SURFACE FINISH N5  COOLANT THROUGH TOOL
Item Designation: ST 20X 65 ER25S
DCONMS CSI DCONNWS  DCONXWS  LS LPR LB THID BD DF DRVS  OAL CSP  GICATGIREMgiic
20.00ER251.016.065.0072.0032.0M1242.0054.0051.0137.00~0.301~4508020 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia		STPLP21StockPerUser
4508020 303<a href="javascript:OpenDxf('4508020', 'ST 20X 65 ER25S' , 'IscarDxf' , '4508020-ST 20X 65 ER25S');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4508020&itemDesc=ST 20X 65 ER25S"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a><a href="FilesDownload.aspx?FileType=P&cat=4508020&itemDesc=ST 20X 65 ER25S"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>
Items Per Package : 1
3D Representation
Assembly Video

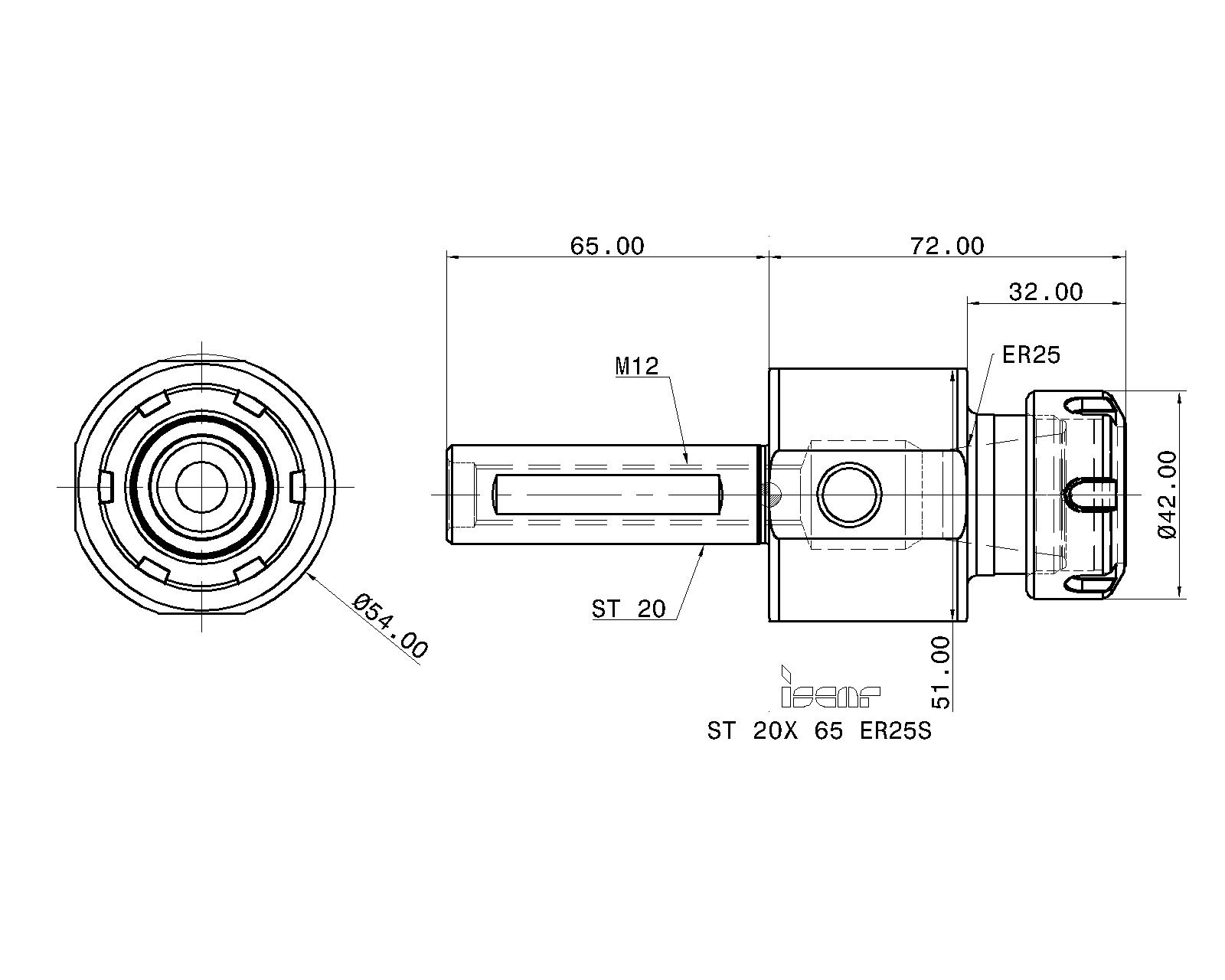

2D Representation
  Spare Parts
4513026NUT ER25 TOPER clamping TOP nut
4513013WRENCH ER25
(Optional, should be ordered separately)		Wrench for ER chuck nut
4502384PRESET ER-JET 12X1.75
(Optional, should be ordered separately)		Preset screw
4513094PRESET ER-JET 12X1.75L
(Optional, should be ordered separately)		Preset screw
