Family Designation: ER-SRF SHRINKIN thermal shrink chuck with a CLICKIN quick change adaptation. To be used for carbide tools only.


 100 BAR (1450 PSI) MAX.  RUNOUT (INT) 0.003MM(.00012  HARDNESS 58-60  SURFACE FINISH N5  SHRINKIN

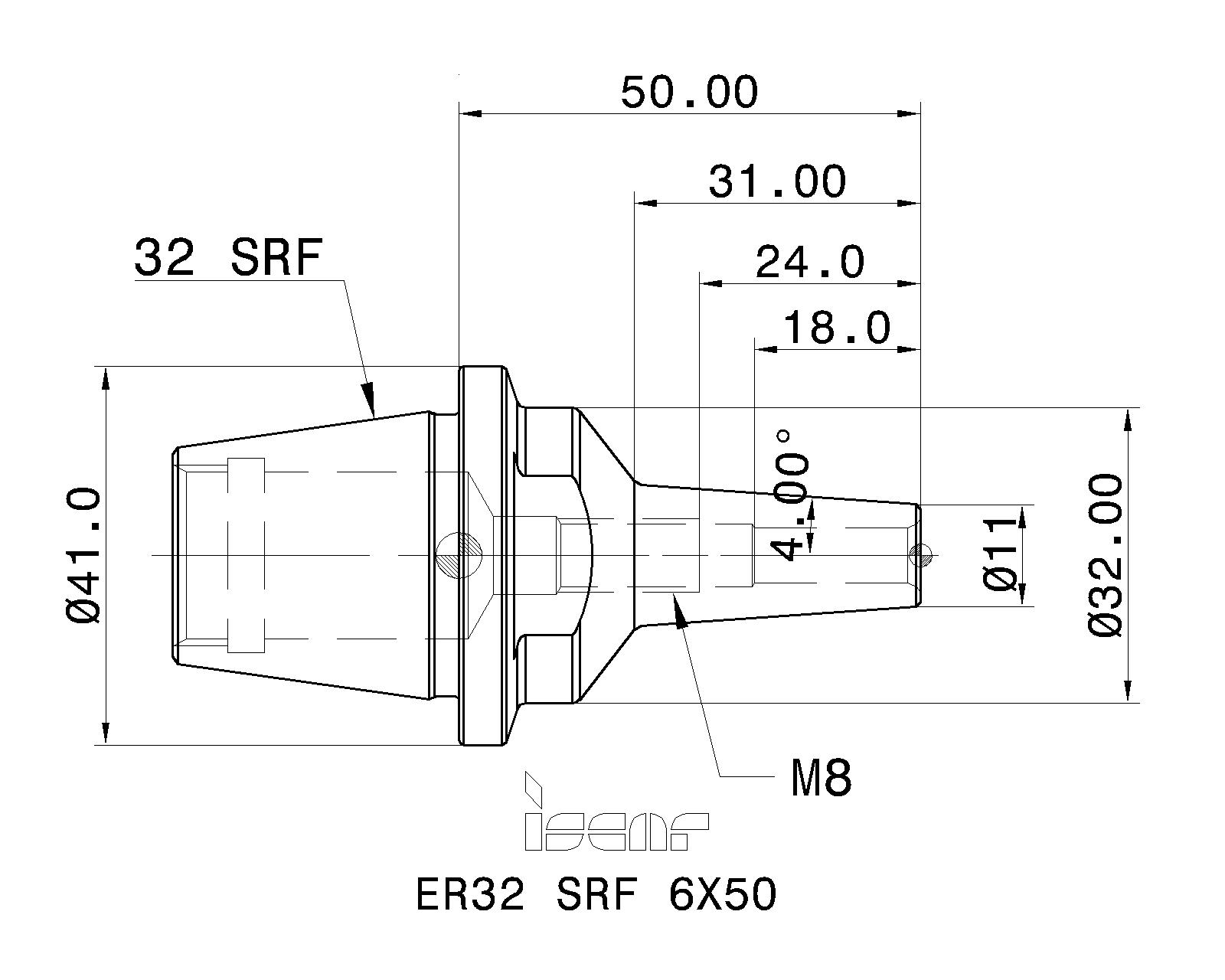

Item Designation: ER32 SRF 6X50
SS DCONWS DCONMS LPR LB ADJRGA LSCWS BD BTED THID Key  BHTA DRVS  OAL GICATGIREMgiic
32 SRF6.0032.00~50.0031.006.0024.032.0011.00M84.004.027.081.00~0.224509181 0
Catalog NoFiles PackageGISCAvailUSAAvailEUAdd to favoritesP21 Properties FileAdd to AssemblyDXFStock Availability
   US        EU     E. Asia
STPLP21StockPerUser
4509181 3032<a href="javascript:OpenDxf('4509181', 'ER32 SRF 6X50' , 'IscarDxf' , '4509181-ER32 SRF 6X50');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>          <a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4509181&itemDesc=ER32 SRF 6X50"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'STPL', 'ItemPage');"></a><a href="FilesDownload.aspx?FileType=P&cat=4509181&itemDesc=ER32 SRF 6X50"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClick="writeToGoogleAnalytics('DownloadFiles', 'P21', 'ItemPage');"></a>
Items Per Package : 1
Tightening torque: 24 Kgxm
For carbide tools only
3D Representation
Assembly Video
2D Representation
  Spare Parts
7000540SR M8X12 DIN916Socket set with flat
Details
4509190WRENCH ER32 CLICKIN 27
(Optional, should be ordered separately)
Wrench for ER chuck nut
Details
