ISCAR Cutting Tools - Metal Working Tools - C#-ASHR/L : 4509468

Geometry Checker ×

Family Designation: C#-ASHR/L

Holders with CAMFIX (ISO 26623-1 standard) exchangeable shanks for external square shank tools.

Left-hand shown

Right-hand shown

Left-hand shown

Right-hand shown

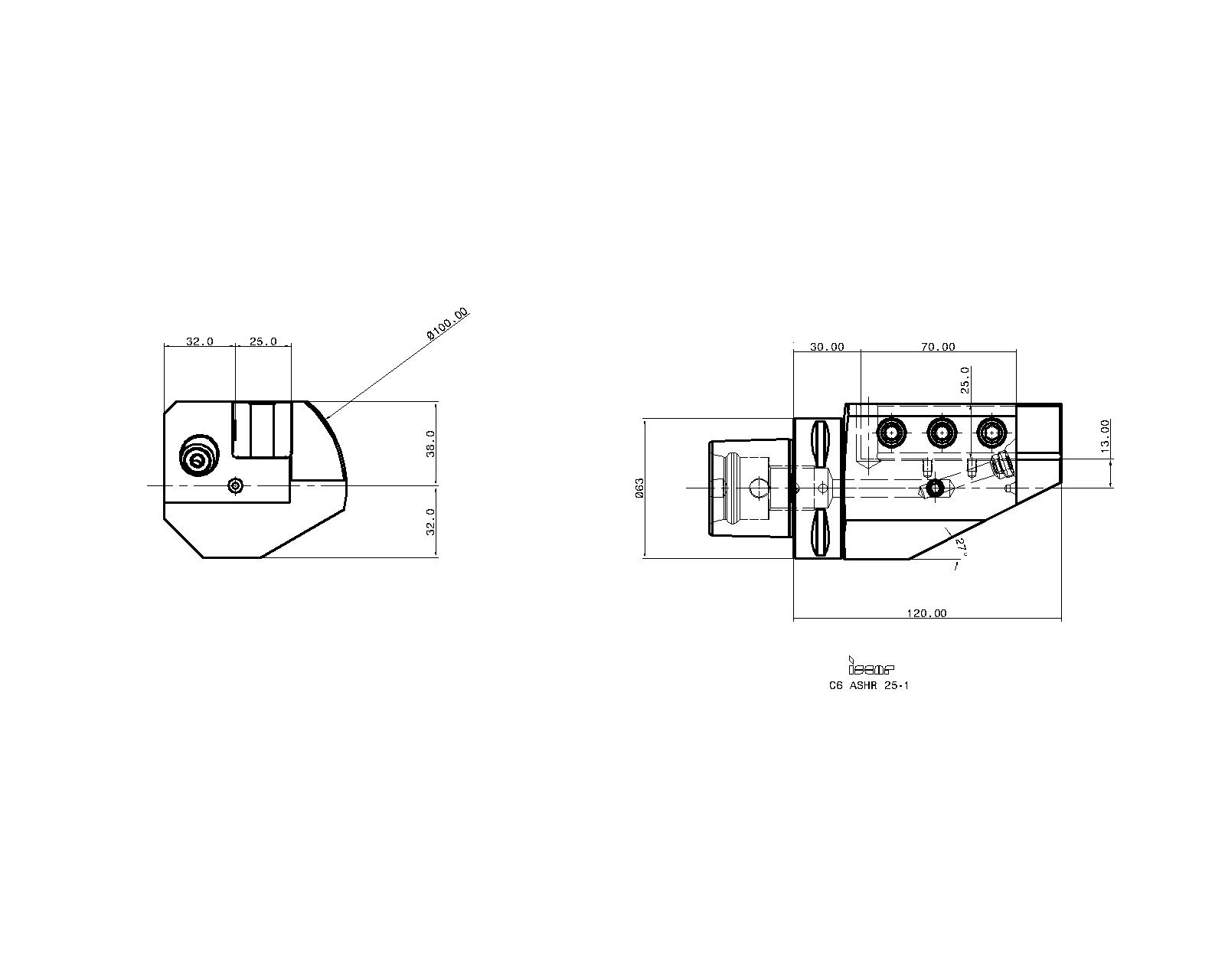

Item Designation: C6 ASHR 25-1

DCONMS	H	WSC	WF	LPR	LSCWS	LF	OAH	RADW	OAW	OAL	ECA	BD	HAND	CSP	DCP	GICAT	GIREM	giic
63.00	25.0	25.0	13.00	120.00	70.00	30.00	82.00	38.0	70.00	158.00~	27.0	100.00	R	1~	1	4509468		0

Catalog No	Files Package	GISC	AvailUSA	AvailEU	Add to favorites	P21 Properties File	Add to Assembly	DXF	Stock Availability US EU E. Asia	STPL	P21	StockPerUser
4509468		1	0	0				<a href="javascript:OpenDxf('4509468', 'C6 ASHR 25-1' , 'IscarDxf' , '4509468-C6 ASHR 25-1');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>		<a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4509468&itemDesc=C6 ASHR 25-1"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'STPL'});"></a>	<a href="FilesDownload.aspx?FileType=P&cat=4509468&itemDesc=C6 ASHR 25-1"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0" OnClientClick="gtag('event', 'click', {'Download': 'P21'});"></a>

Items Per Package : 1


4505592	SR M12X30 DIN915	Screw	Details
7000049	HW 6.0 (Optional, should be ordered separately)	Hex key	Details
7003855	SATZ-M12X1-M6	Cooling nozzle	Details
4561606	COOLING TUBE C6 (Optional, should be ordered separately)	Cooling tube
7005914	WRENCH NOZZLE HP M12 (Optional, should be ordered separately)	Wrench-open	Details
3313026	WRENCH COOL TUBE C6 (Optional, should be ordered separately)	Cooling tube wrench
